Fonte de alimentação Inter-Tech Argus BPS-600 600 W

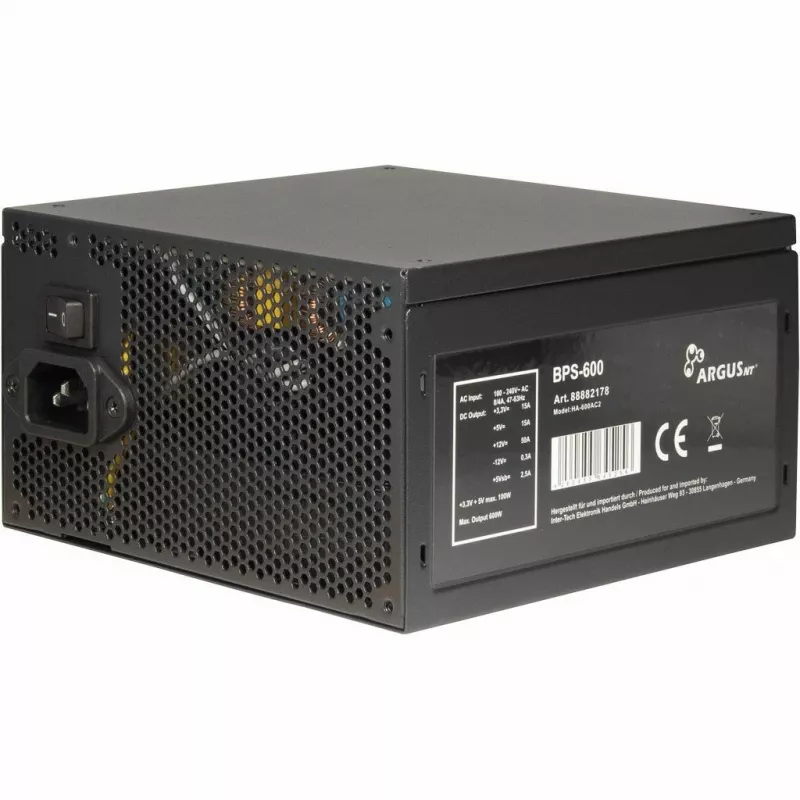

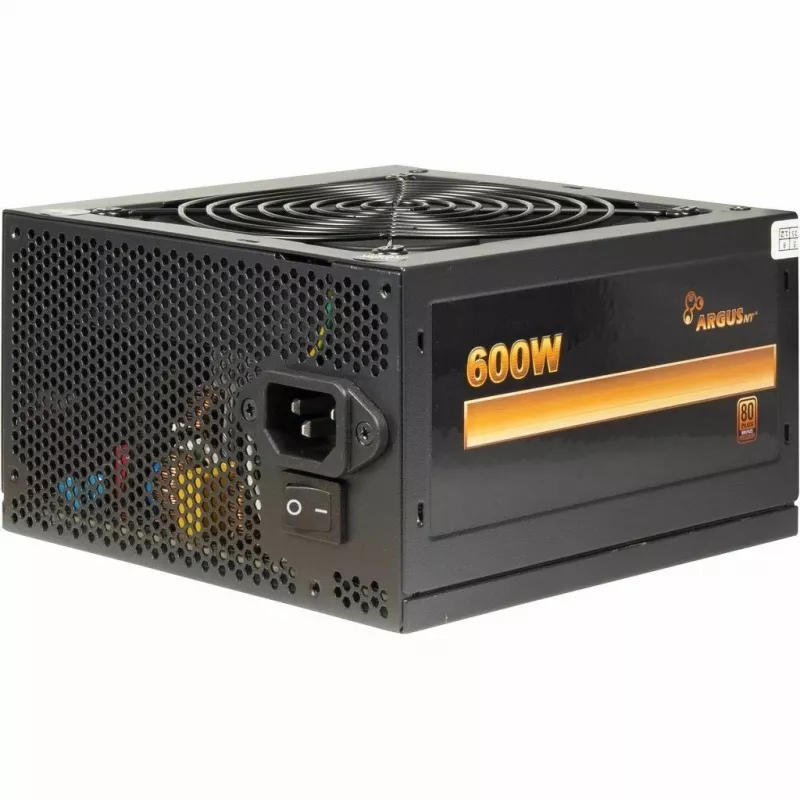

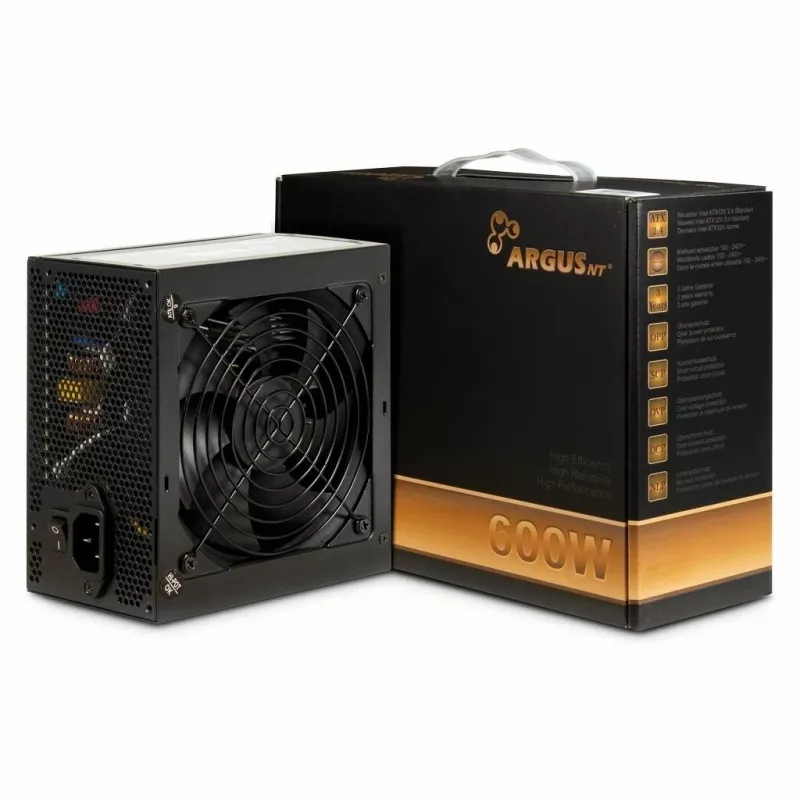

The Inter-Tech Argus BPS-600 is a 600 W internal power supply unit for desktop PCs, certified 80 PLUS Bronze for 230 V EU operation. It offers a 20+4 pin ATX motherboard connector, a single 120 mm cooling fan and fixed cables in flat ribbon design (except the 20+4 pin). The unit provides up to 50 A on the 12 V rail and includes multiple PCIe and SATA connectors, making it suitable for upgrading existing systems or building new ones.

Advantages

The BPS-600 combines 80 PLUS Bronze efficiency with modern components and five integrated protection circuits (OPP, SCP, OVP, OCP and NLP) to protect connected hardware and the power supply itself. Flat ribbon cables (except motherboard cable) simplify cable routing in compact cases, and the 120 mm fan ensures quiet and reliable cooling. The product comes with a 36-month manufacturer guarantee.

Suitable for

• Upgrading mid-range desktop PCs
• New system builds requiring a reliable 600 W PSU
• Systems with multiple SATA drives or a single mid- to high-end GPU (uses PCIe 6+2pin connectors)
• Cases where space-efficient flat ribbon cables help cable management

Key specifications

• Total power: 600 W
• Efficiency: 80 PLUS Bronze (measured efficiency 88.7 %)
• Motherboard connector: 20+4 pin ATX
• PCIe connectors: four 6+2 pin
• SATA connectors: six
• 12 V rail current: 50 A

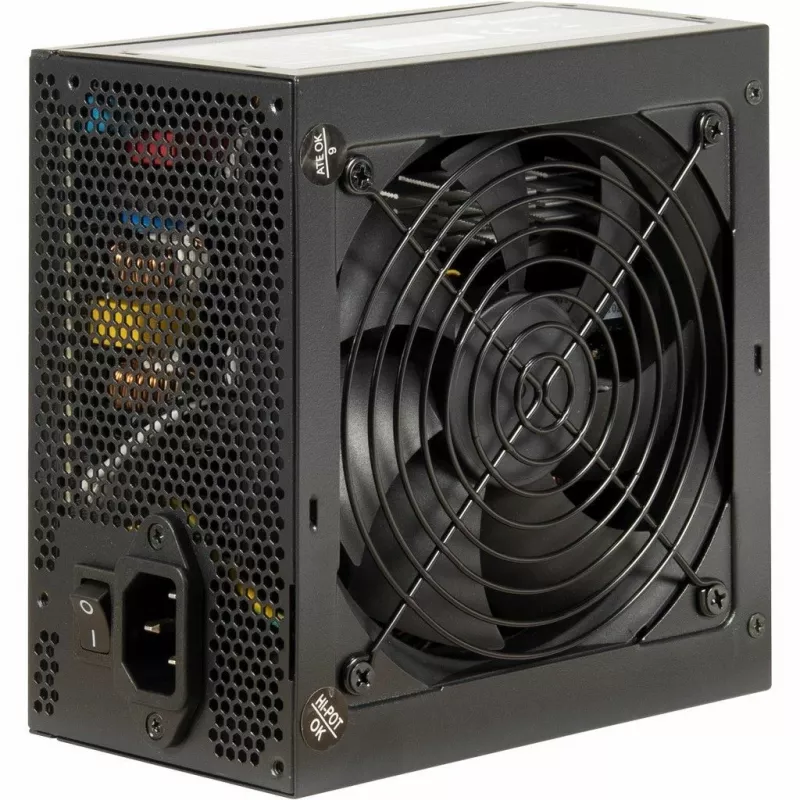

• Cooling: 120 mm fan
• Input voltage/frequency: 100–240 V AC, 47–63 Hz
• Design: non‑modular, flat ribbon cables (except 20+4)
• Colour: Black
• Weight: 1.77 kg

How to use

Install the Inter-Tech Argus BPS-600 into a compatible ATX case and secure it with screws. Connect the 20+4 pin ATX cable to the motherboard, plug the PCIe 6+2 pin connectors to the graphics card as required, and attach SATA connectors to storage devices. Connect the AC cable to a suitable mains outlet (100–240 V, 47–63 Hz). Ensure correct connector orientation before powering on the system and verify that the total system power demand does not exceed the PSU rating.

Recommendations

For stable operation, use the unit in cases with adequate airflow and avoid exceeding the specified 600 W total output. Keep the fan intake clear of dust and ensure proper cable management to maintain cooling efficiency. The built-in protection circuits help safeguard components in case of faults.
