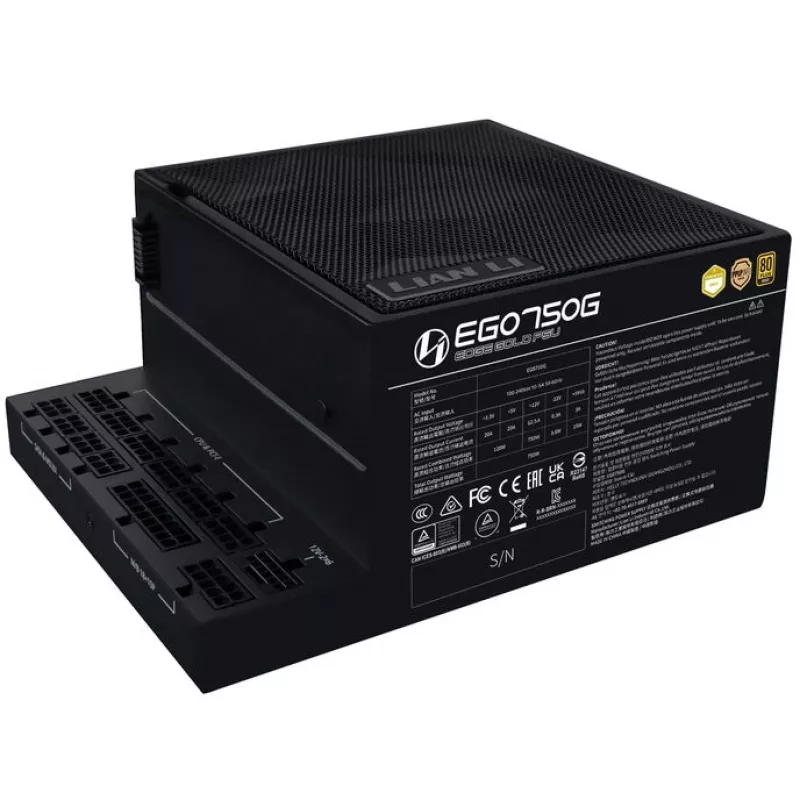

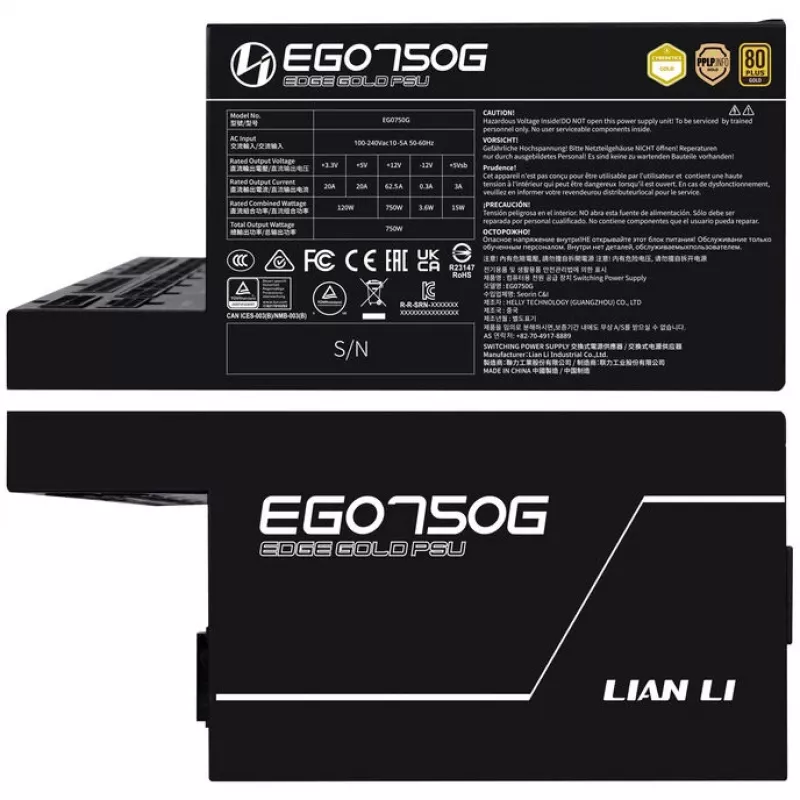

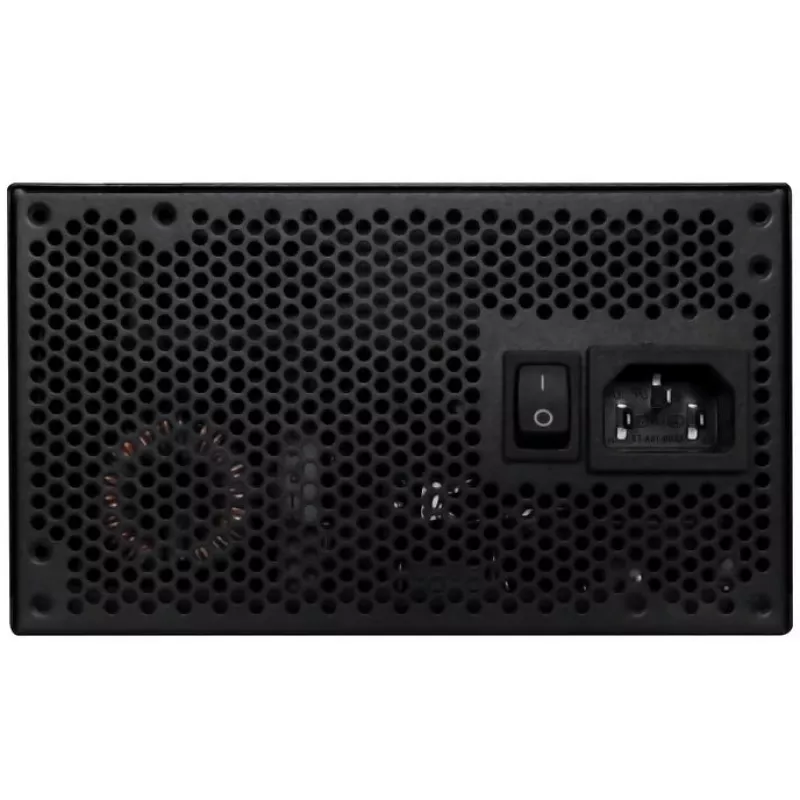

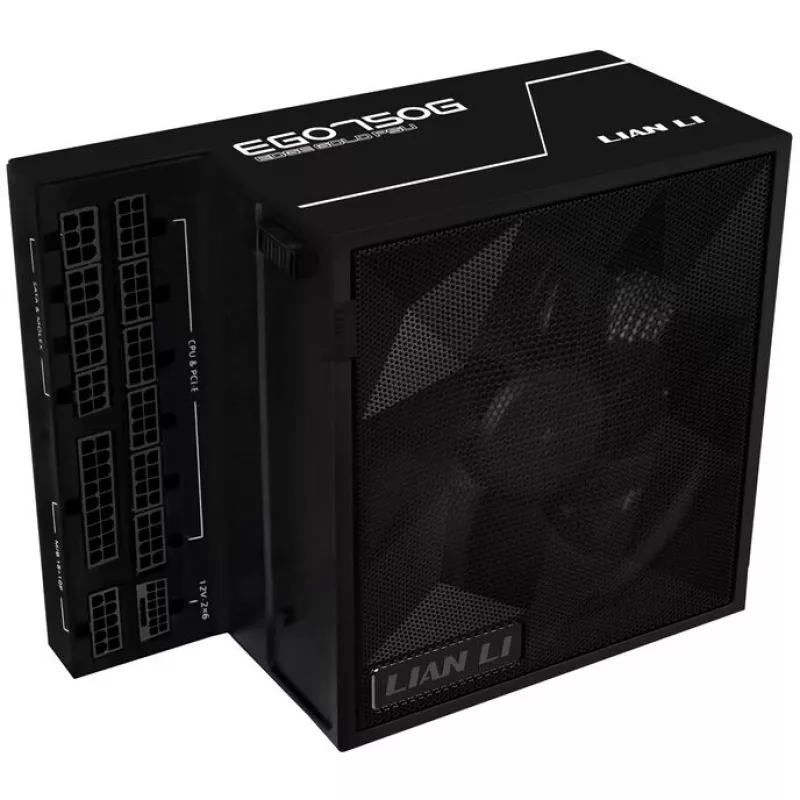

Fonte de alimentação LIAN LI EDGE GOLD 750 — 750W, 80 PLUS Gold, PFC ativo

EDGE GOLD is a 750 W ATX 3.1 power supply with an L-shape design developed for dual-chamber and tower cases. It delivers 80 PLUS Gold efficiency, active PFC, and a 12 cm cooling fan in a compact chassis (182 × 86 × 150 mm). The unit includes fully modular braided-texture cables, pre-installed cable combs for MB/CPU/GPU connectors, German industrial-grade EPCOS capacitors and a removable magnetic dust filter for the fan. A detachable USB and PWM fan hub provides four internal USB 2.0 headers and six PWM headers, while PCIe 5.1 readiness is achieved with in-house 12V 2×6 alloy copper soldered terminals.

Advantages

The L-shape layout optimizes cable routing in dual-chamber builds, improving airflow and installation neatness. 80 PLUS Gold certification and high-quality EPCOS capacitors support stable, efficient power delivery. Fully modular braided cables with pre-installed combs simplify cable management. Additional features such as a removable dust filter and a detachable USB/PWM hub increase serviceability and customization options.

Suitable for

• Dual-chamber PC cases and tower chassis where L-shape PSU placement is required
• Systems where neat modular cable management and dust control are important

Key specifications

• Model: EG0750G (EDGE GOLD 750)
• Output power: 750 Watts
• Form factor / standard: ATX 3.1
• Efficiency: 80 PLUS Gold
• PFC: Active
• Cooling: 12 cm fan
• Design: L-shape for dual chamber cases

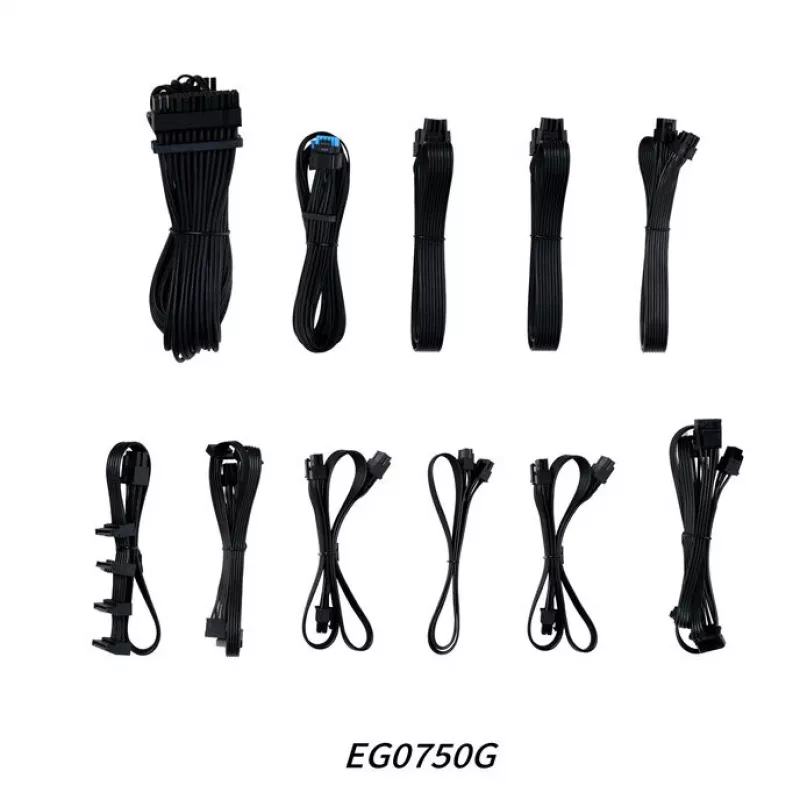

• Cables: Fully modular braided-texture with pre-installed cable combs
• Capacitors: German industrial-grade EPCOS
• PCIe: PCIe 5.1 ready with 12V-2×6 alloy copper soldered terminals
• Additional: Detachable USB hub (4× internal USB 2.0 headers) and 6 PWM headers, removable magnetic fan dust filter
• Colour: Black
• Dimensions (D×W×H): 182 mm × 86 mm × 150 mm
• Net weight: 2 kg

How to use

Install the EDGE GOLD 750 following ATX 3.1 power supply mounting instructions for your case, positioning the L-shape unit in the intended dual-chamber location if the chassis supports it. Connect required modular cables to the motherboard, CPU and GPU using the pre-routed braided cables and cable combs for tidy routing. Attach the detachable USB hub and PWM hub internally if you need additional internal USB headers or fan control. Ensure the removable dust filter is in place to reduce dust ingress and periodically clean it.

Recommendations

Use this PSU in systems that need reliable 750 W power with PCIe 5.1 support and benefit from L-shape mounting. Regularly inspect and clean the magnetic dust filter and verify cable connections during upgrades or component changes to maintain optimal cooling and electrical reliability.
