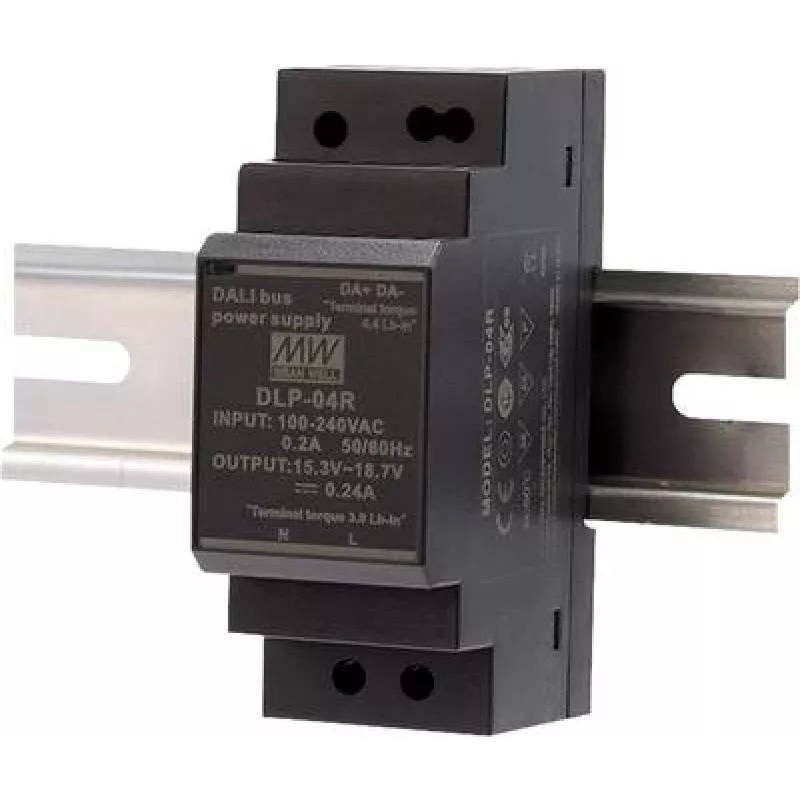

Fonte de alimentação MEAN WELL DLP-04R

The MEAN WELL DLP-04R is a compact power adapter/inverter designed for low-power applications. It accepts a wide AC input range (90–264 VAC) and provides a regulated DC output of 18.7 V at 0.24 A (4 W output), meeting RoHS requirements. The unit features a slim rail-mount form factor suitable for installations where space is limited.

Advantages

The DLP-04R combines a broad input voltage range with a stable 18.7 VDC output and a small footprint (35 mm × 54.5 mm × 90 mm). Its rail-type housing simplifies mounting in control cabinets and on DIN rails. RoHS compliance ensures the adapter meets common environmental and safety restrictions.

Suitable for

• Powering DALI ultra-slim bus devices and low-power lighting control modules
• Embedded electronics and small control circuits requiring 18.7 VDC at 0.24 A
• Space-constrained installations in control cabinets and electrical panels

Key specifications

• Manufacturer: MEAN WELL
• Model (MPN): DLP-04R
• EAN: 4021087050609
• Output: 18.7 V DC, 0.24 A (4 W)
• Input voltage: 90–264 VAC
• Dimensions (W × D × H): 35 mm × 54.5 mm × 90 mm
• Mounting: rail type (DIN rail compatible)
• Compliance: RoHS

How to use

Install the adapter on a suitable DIN rail or rail mounting point in the control cabinet. Connect the AC input to a properly fused mains supply within the specified 90–264 VAC range. Connect the DC output to the load requiring 18.7 VDC, observing correct polarity. Verify connections before applying power and ensure the installation complies with local electrical codes.

Recommendations

Use the DLP-04R for low-power DALI bus systems and compact control electronics; avoid exceeding the 0.24 A output current and provide adequate ventilation around the unit to prevent thermal buildup.
