Fonte de alimentação para calha DIN Qoltec 60W 24V 2,5A branco Slim

Delivers 60W of stable 24V DC power with 2.5A output, ideal for DIN rail installations where space is tight. The slim white housing fits TS-35 rails and operates from a universal 100-240V AC input.

Overview

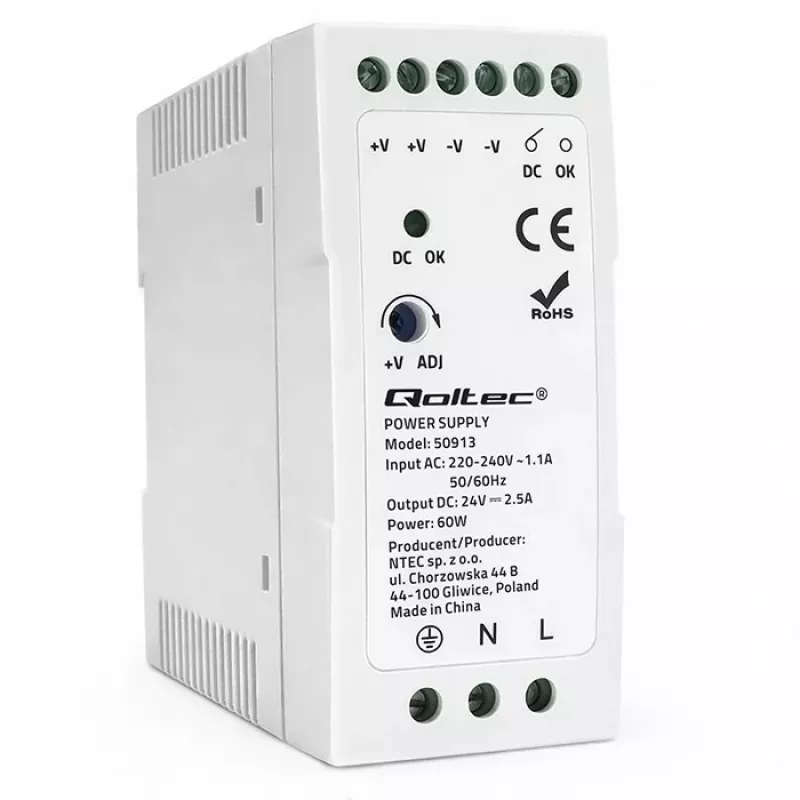

This Qoltec power supply converts AC mains to regulated 24V DC for industrial and building automation. It mounts directly on a DIN rail and provides screw terminals for secure wiring. A green LED indicates power status.

What stands out

• 60W output with 24V DC and 2.5A current
• Wide input range: 100-240V AC, 50/60Hz
• Slim white plastic enclosure for space-saving DIN rail mounting
• High efficiency over 88%
• Built-in protections: overload, overvoltage, short circuit
• Free air convection cooling – no fan noise
• Low ripple and noise below 150mVp-p
• Operating temperature from -20°C to +50°C

Technical details

• Output voltage: 24V DC
• Output current: 2.5A
• Power: 60W
• Input voltage: 100-240V AC
• Input frequency: 50/60Hz
• Mounting: DIN rail TS-35/7.5 or TS-35/15
• Efficiency: >88%
• Protection: OLP, OVP, SCP
• Cooling: free air convection
• Ripple & noise: <150mVp-p
• Enclosure: plastic
• LED indicator: green power ON
• Terminal type: screw terminals

Our verdict

A reliable and compact DIN rail power supply with clean output and essential protections, perfect for automation projects.
