Fonte de alimentação Phoenix Contact 2320924

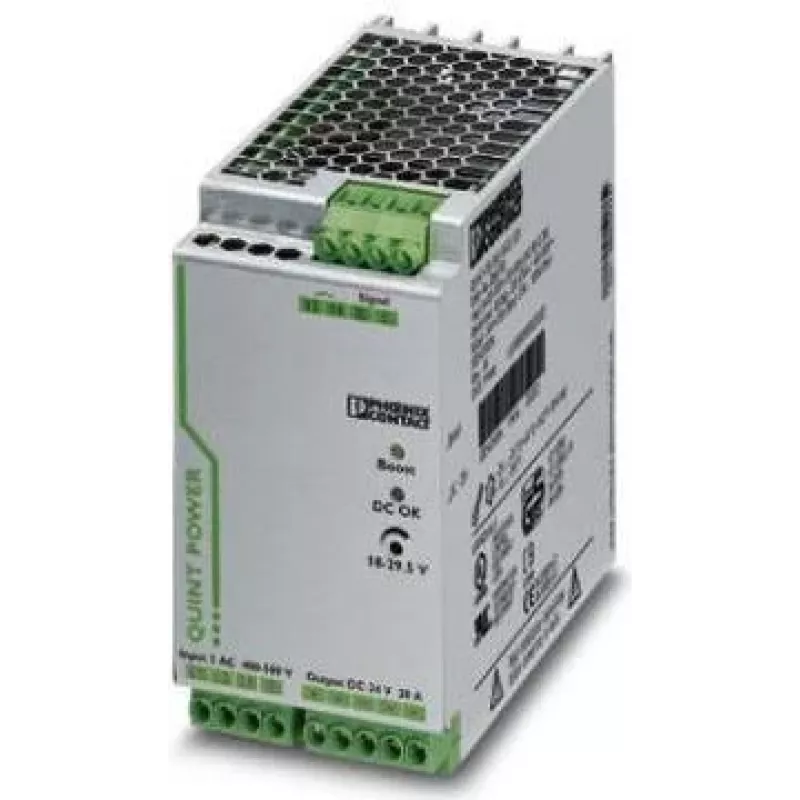

Primary-switched QUINT POWER power supply from PHOENIX CONTACT (model 2320924) provides a stable 24 V DC output at up to 20 A. Designed for DIN-rail mounting, this compact unit (69 mm × 125 mm × 130 mm) accepts a three-phase input and includes SFB (Selective Fuse Breaking) technology and a protective coating for increased reliability in industrial environments.

Advantages

The device combines a small footprint with a high output current, offering space-saving installation on standard DIN rails. SFB technology helps isolate short-circuit faults to protect downstream circuits and simplify maintenance. The protective coating improves resistance to humidity and contaminants, and the three-phase input supports stable operation under varying supply conditions.

Suitable for

Key specifications

How to use

Mount the unit on a standard DIN rail inside the control cabinet and make electrical connections according to the system wiring diagram and local regulations. Connect the three-phase AC supply to the input terminals and the 24 V DC output to the load, observing correct polarity. Ensure appropriate circuit protection and that downstream fuses or breakers are compatible with SFB operation. Follow the manufacturer's installation and safety instructions when powering up and commissioning.
