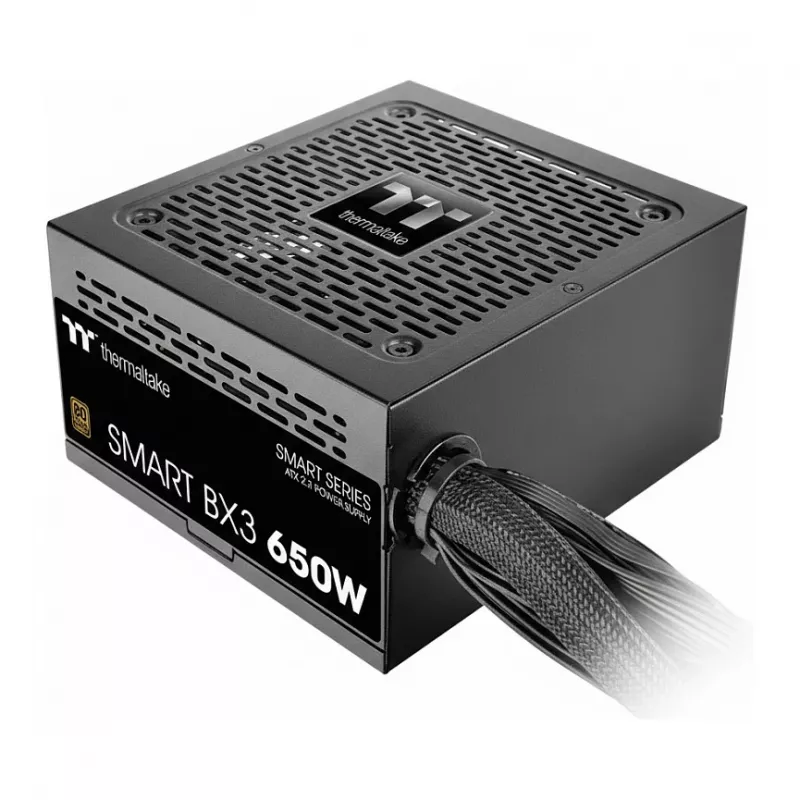

Fonte de alimentação Thermaltake Smart BX3 Pro SE 650W (PS-SPD-0650NNSABE-7)

The Thermaltake Smart BX3 Pro SE 650W is an ATX power supply with 80 PLUS Bronze certification and a single +12V rail using DC-to-DC design. It is compatible with the Intel ATX 3.1 standard and features a 105°C main capacitor, flat black cables, and a 12 cm active cooling fan.

Key features

• 80 PLUS Bronze certified
• Intel ATX 3.1 standard compatible
• Single +12V rail with DC-to-DC design
• 105°C main capacitor
• Flat black cables
• Active cooling with 12 cm fan
• Protections: OCP, OVP, UVP, OPP, OTP, SCP
• Compliance: CB, CCC, CE, LVD, RCM, UKCA

Specifications

• Total power: 650 W
• AC input voltage: 200 - 240 V
• AC input frequency: 50/60 Hz
• Input current: 6.3 A
• PFC: Active
• Combined power (+3.3V): 110 W
• Combined power (+12V): 650 W
• Combined power (+5V): 110 W
• Combined power (-12V): 3.6 W
• Combined power (+5Vsb): 15 W
• Max output current (+3.3V): 18 A
• Max output current (+12V): 54.2 A
• Max output current (+5V): 18 A
• Max output current (-12V): 0.3 A
• Max output current (+5Vsb): 3 A
• Hold-up time: 17 ms
• Efficiency: 88%
• Power good signal delay range: 100 - 150 ms
• Motherboard connector: 24-pin ATX
• Motherboard cable length: 60 cm
• Number of SATA power connectors: 4
• SATA cable length: 150,500 mm
• Number of Molex 4-pin connectors: 4
• Peripheral (Molex) cable length: 150,500 mm
• EPS power connector (4+4-pin)
• Number of PCI Express power connectors 6+2-pin: 2
• Cable type: Non-modular
• Purpose: PC
• PSU form factor: ATX
• ATX version: 3.1
• MTBF: 100000 h
• Product colour: Black
• Cooling: Active
• Fan diameter: 12 cm
• Number of fans: 1
• Operating temperature: 5 - 45 °C
• Storage temperature: -40 - 55 °C
• Operating relative humidity: 20 - 85%
• Storage humidity: 10 - 95%
• Width: 150 mm
• Depth: 140 mm
• Height: 86 mm
