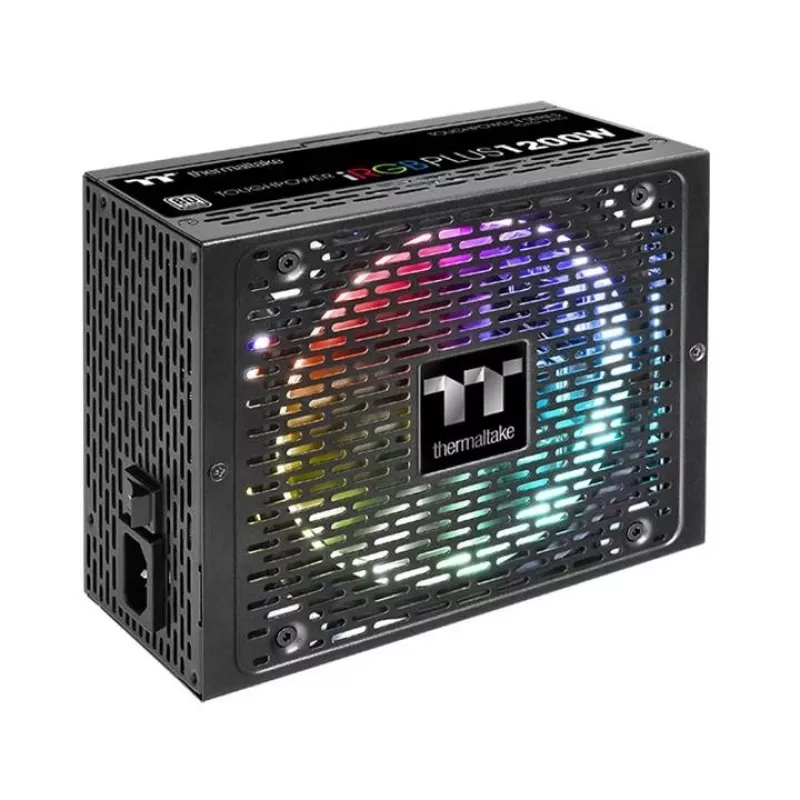

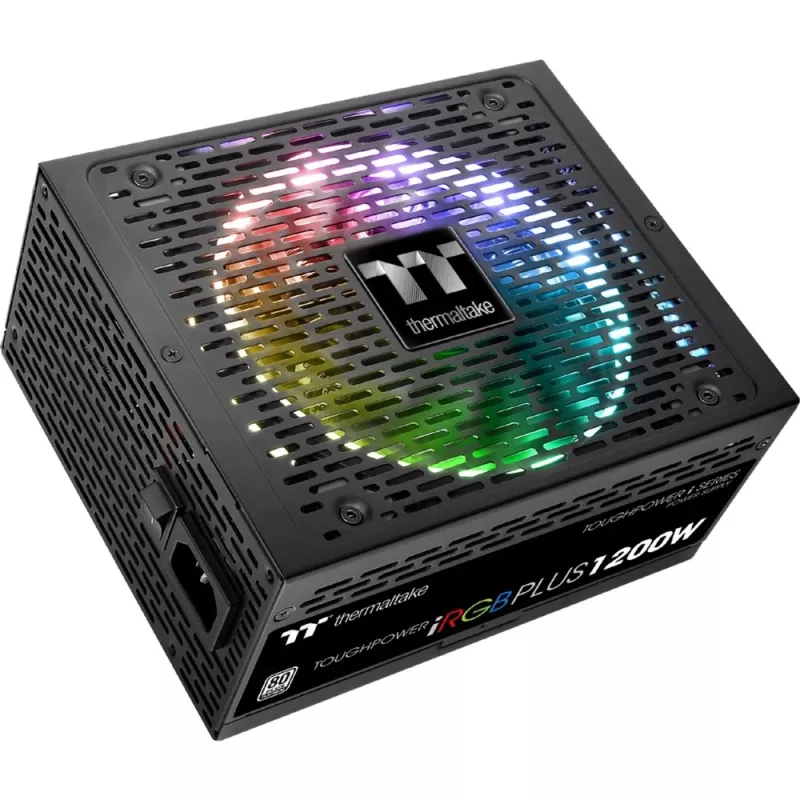

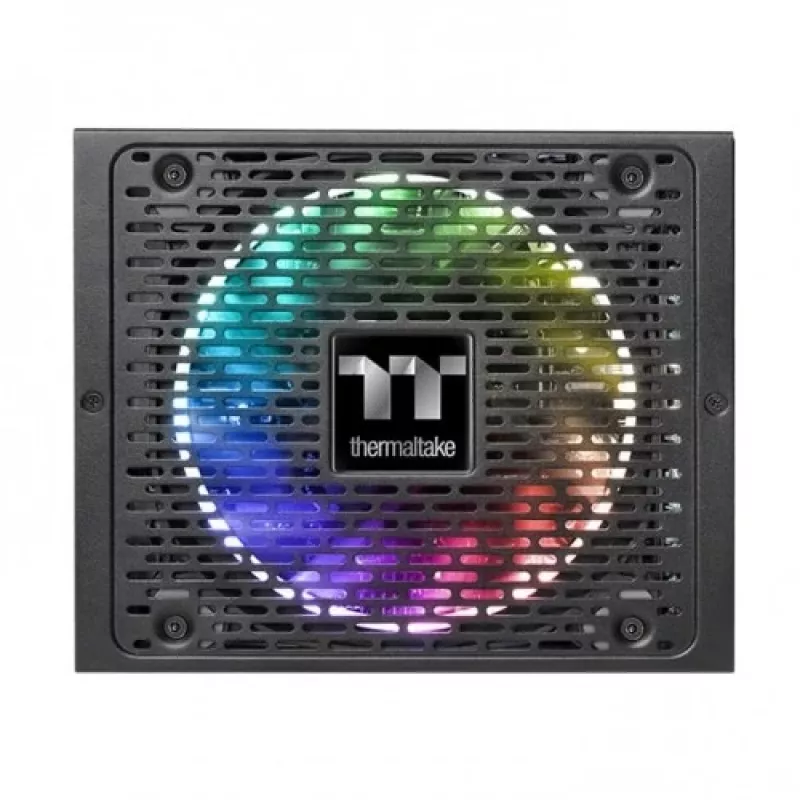

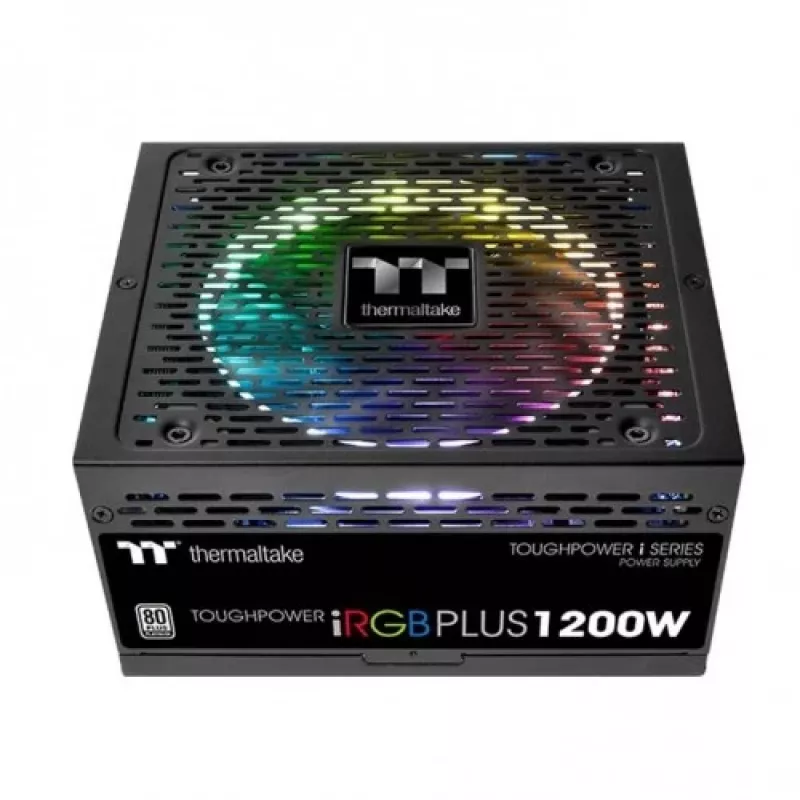

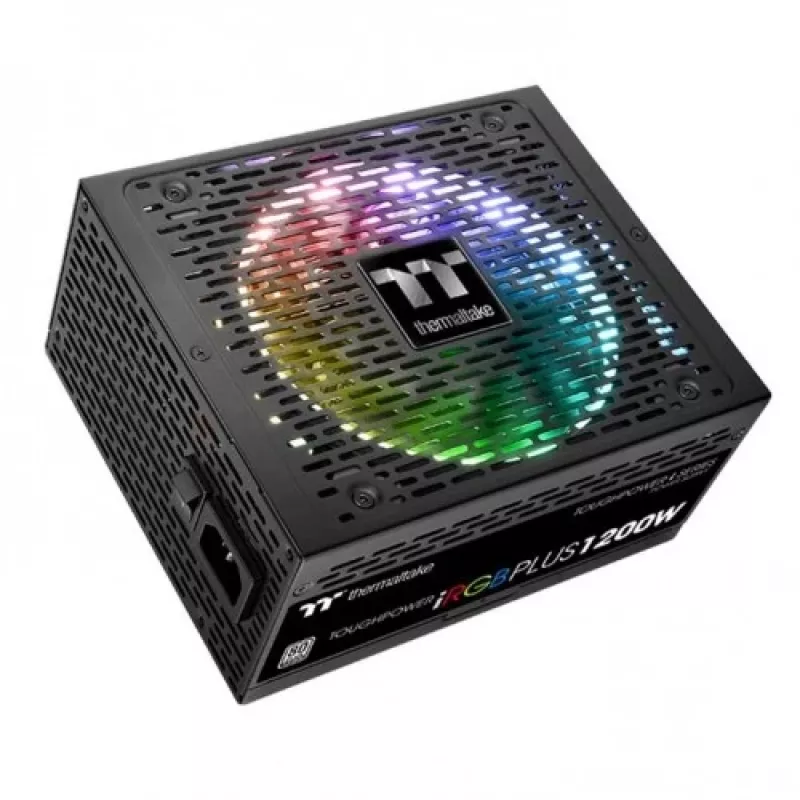

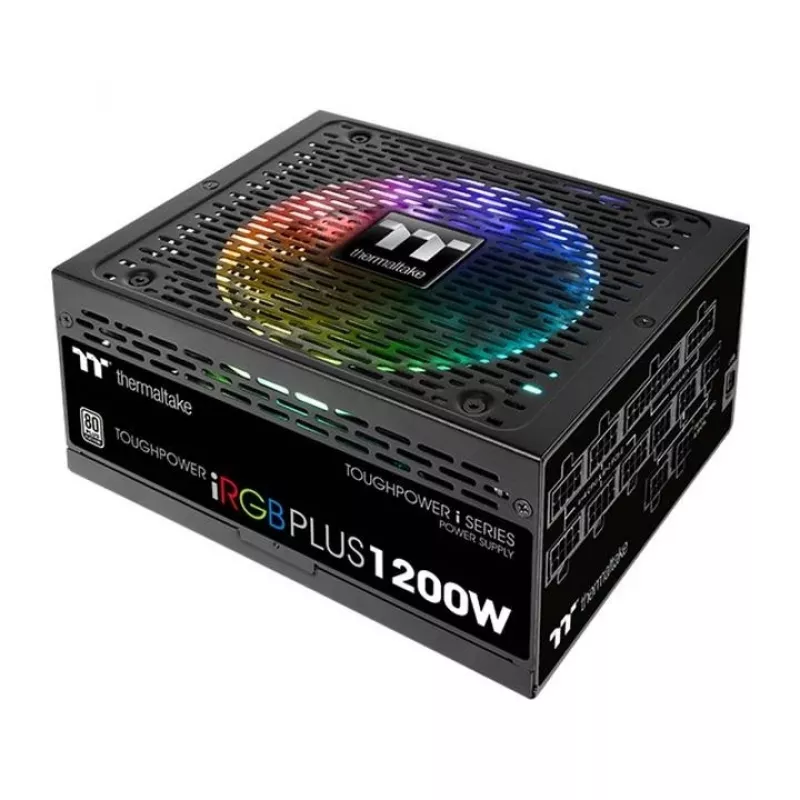

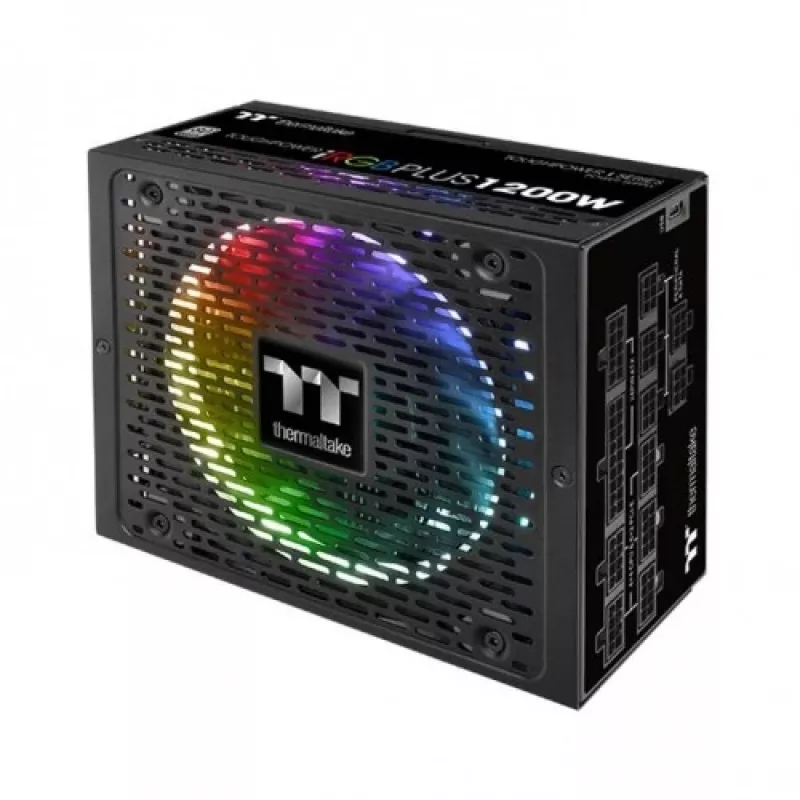

Fonte de alimentação Thermaltake Toughpower iRGB PLUS 1200 W

The Thermaltake Toughpower iRGB PLUS 1200W Platinum is a fully modular 1200 W power supply unit with 80 PLUS Platinum certification, a 140 mm patented 16.8 million colors Riing PLUS RGB fan and 12 addressable single LEDs. Designed for high-efficiency desktop systems, it supports a wide AC input range (100–240 V), a single powerful +12 V rail and a compact depth for easier installation. The unit includes flat modular cables and an integrated 32-bit MCU for digital control and stable voltage delivery.

Advantages

The power supply delivers high efficiency (up to 94% under typical loads) and strict voltage regulation (±2% on major rails) with ripple noise below 30 mV, which helps keep performance-critical components stable. Its fully modular flat cables improve cable management and airflow. Integrated software and cloud/mobile platforms (DPS G PC App, SPM Cloud and DPS G Mobile App) enable RGB customization, system monitoring, remote shutdown and alert notifications. Short 160 mm depth increases compatibility in many enclosures.

Suitable for

• High-performance gaming PCs with multiple graphics cards and VR setups
• Workstations requiring stable +12 V output and low ripple noise
• Custom builds that need modular cabling and compact PSU dimensions
• Users who want RGB lighting control and remote power management

Key specifications

• Total power: 1200 W
• Peak power: 1440 W
• 80 PLUS certification: Platinum
• Motherboard connector: 24-pin ATX (cable length approx. 60 cm)
• Fan: 140 mm patented Riing PLUS RGB, 16.8 million colors
• Addressable LEDs: 12 single LEDs
• Product colour: Black
• MTBF: 120,000 hours
• Dimensions (depth): short depth 160 mm (compact design)

How to use

Install the PSU into your PC chassis in the standard orientation, connect the 24-pin ATX cable to the motherboard and attach required PCIe, CPU and peripheral cables from the modular panel. Use the DPS G PC App or DPS G Mobile App to configure RGB lighting, fan behavior and monitor voltages and temperatures. For remote management and alerts, register the unit with the SPM Cloud platform and enable notifications in the mobile app.

Recommendations

Configure the Smart Power Management alerts to receive warnings for fan failure, over-temperature and abnormal voltage; schedule remote shutdowns to save energy after long rendering or compute tasks. Maintain clear airflow by routing flat cables and ensure connectors are fully seated for reliable operation.
