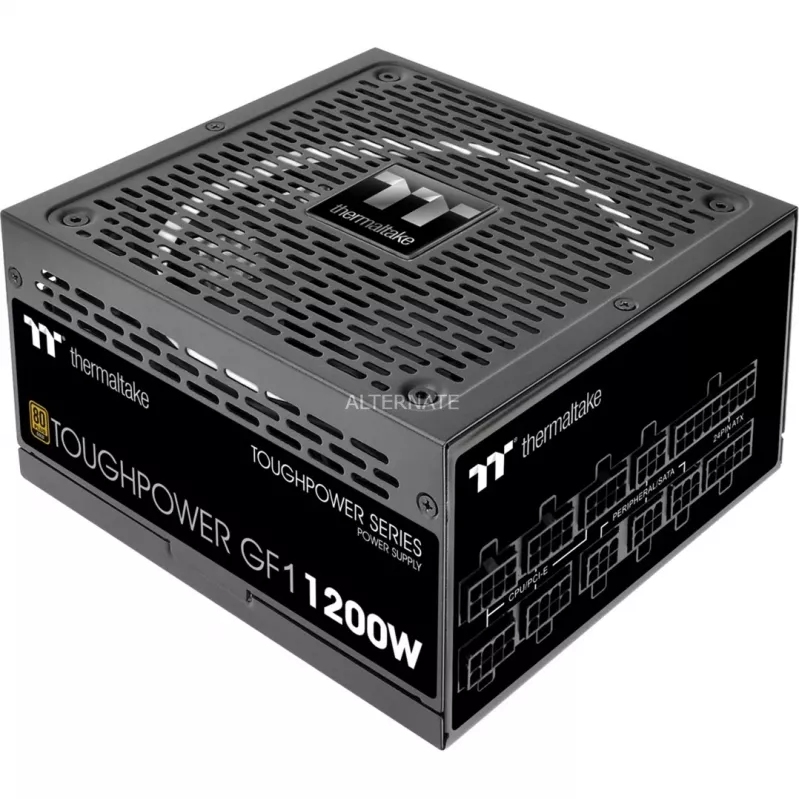

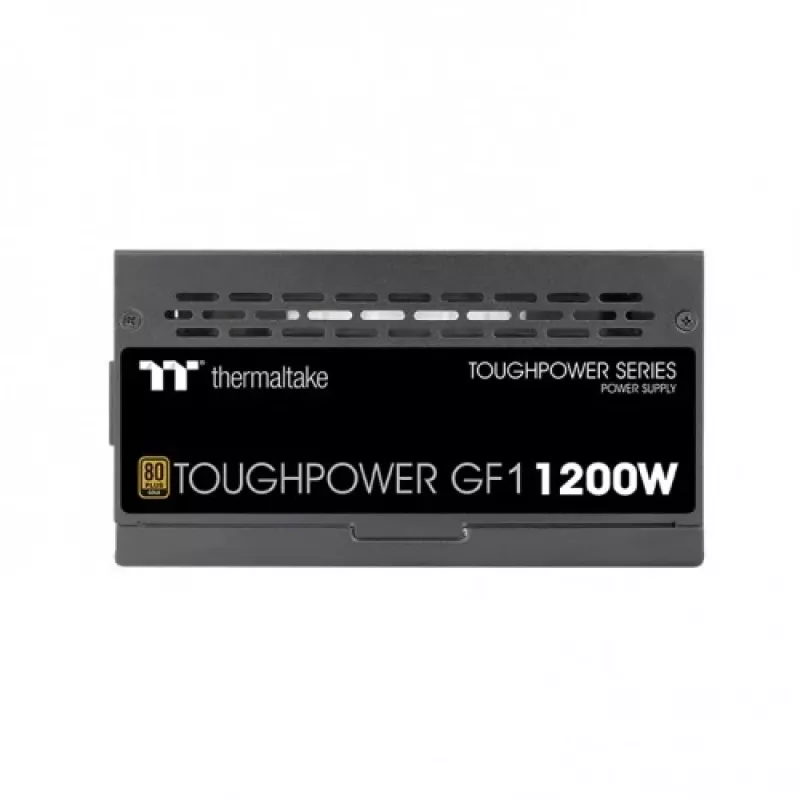

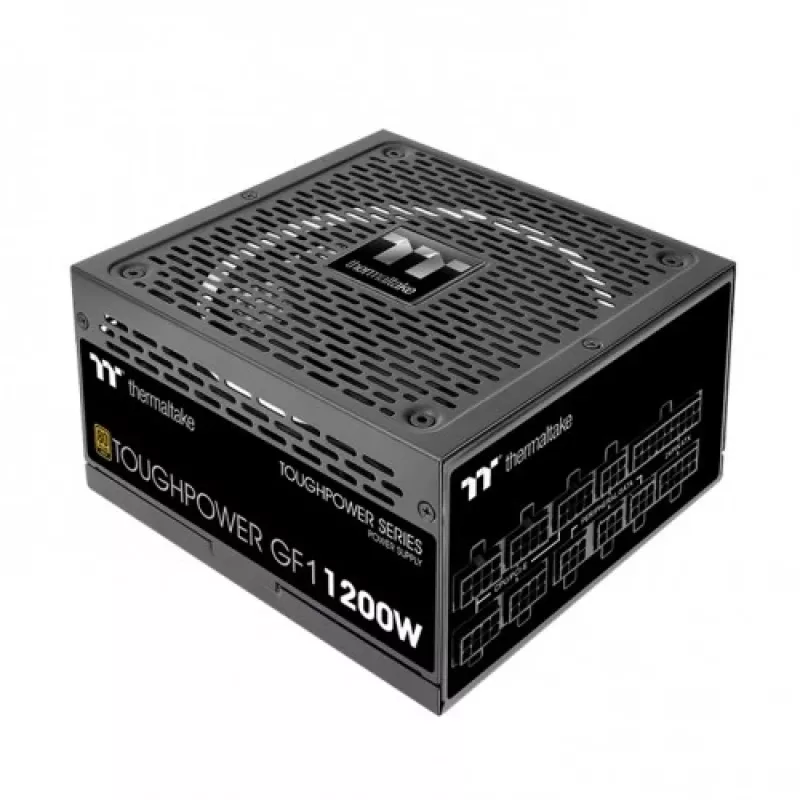

Fonte de alimentação Thermaltake TTP-1200AH3FCG 1200 W

The Thermaltake Toughpower GF1 1200W Gold (TTP-1200AH3FCG) is a fully modular 1200 W power supply unit designed for high-efficiency desktop systems. Certified 80 PLUS Gold, it uses premium Japanese 105°C capacitors, a 140 mm hydraulic bearing fan and a high-amperage single +12V rail to provide stable power delivery, low ripple and reliable operation up to 50°C ambient. The unit includes low-profile flat black modular cables and meets Intel C6/C7 sleep states requirements.

Advantages

The PSU delivers up to 90% efficiency under typical loads thanks to its 80 PLUS Gold certification, while strict voltage regulation (±2% on main rails) and ripple noise under 30 mV ensure stable operation of performance-critical components. The Smart Zero Fan and intelligent RPM control on the 140 mm hydraulic bearing fan minimize audible noise by keeping the fan off under light loads. A copper back-plate connection improves heat dissipation, and the fully modular low-profile flat cables aid cable management and internal airflow. The product also comes with premium components and a long 10-year warranty.

Suitable for

• High-performance gaming PCs with multiple GPUs or overclocked CPUs
• Workstations for content creation, 3D rendering and video editing
• Systems requiring high efficiency and quiet operation
• PC builds where tidy cable management and improved airflow are desired

Key specifications

• Total power: 1200 W (peak up to 1440 W as noted by manufacturer)
• 80 PLUS certification: 80 PLUS Gold (up to ~90% efficiency)
• Motherboard connector: 24-pin ATX

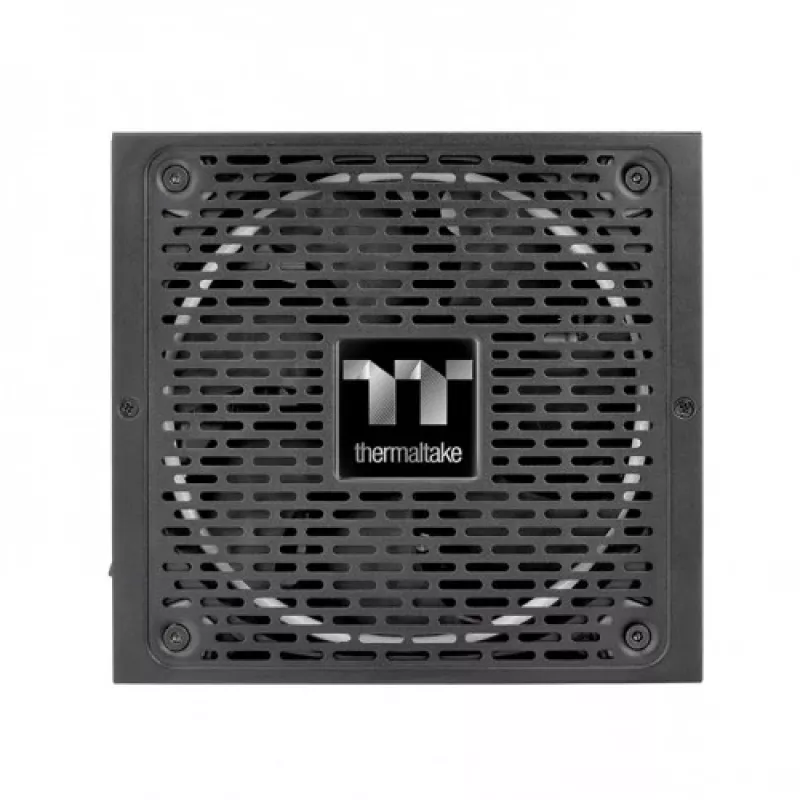

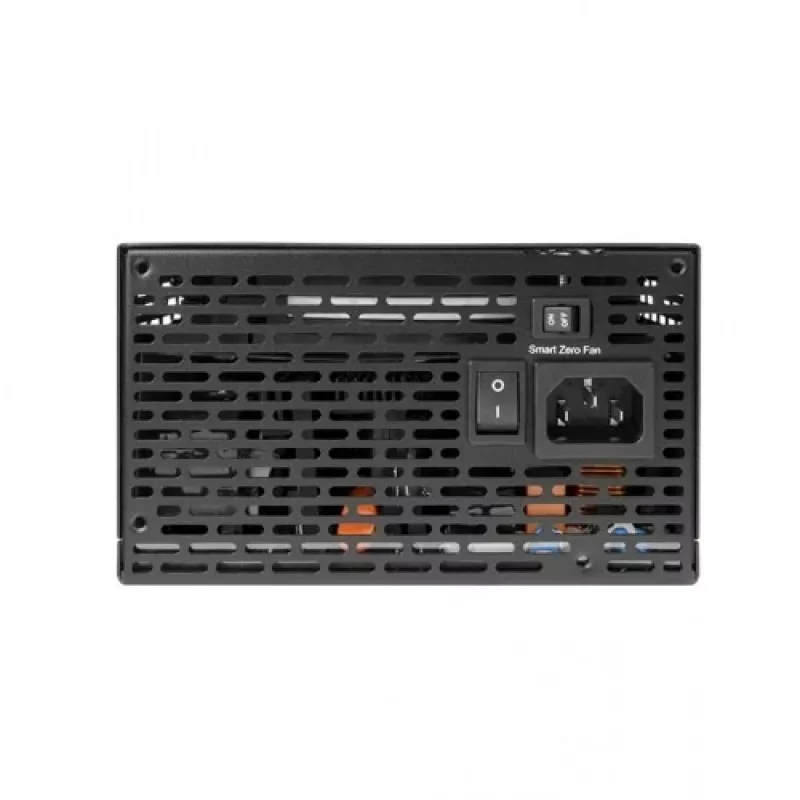

• Fan: 140 mm hydraulic bearing with Smart Zero Fan control
• Capacitors: Japanese 105°C
• Voltage regulation: ±2% on major rails
• Ripple: <30 mV on +12V, +5V and +3.3V

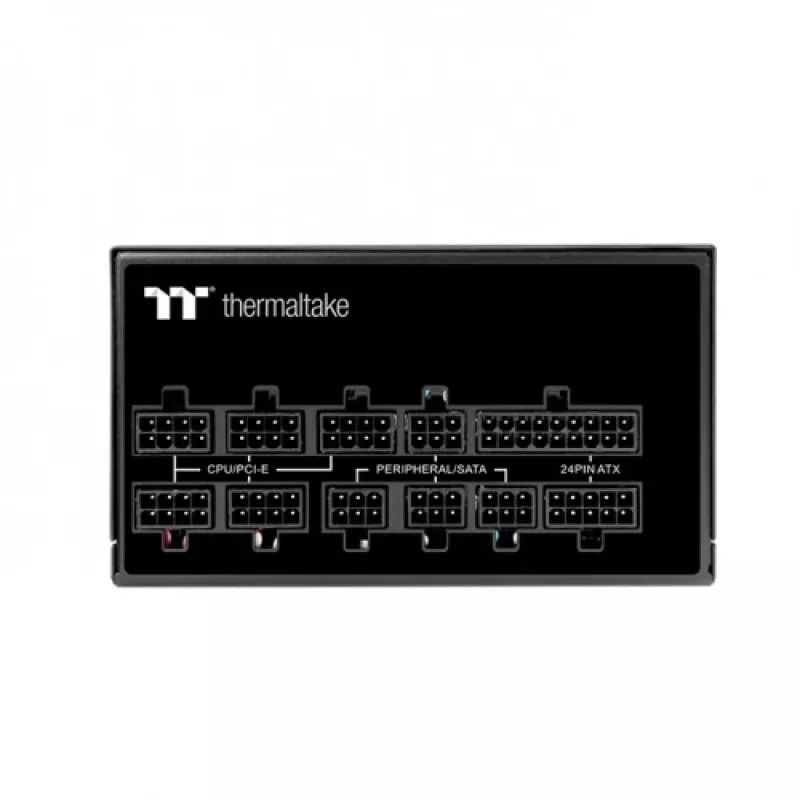

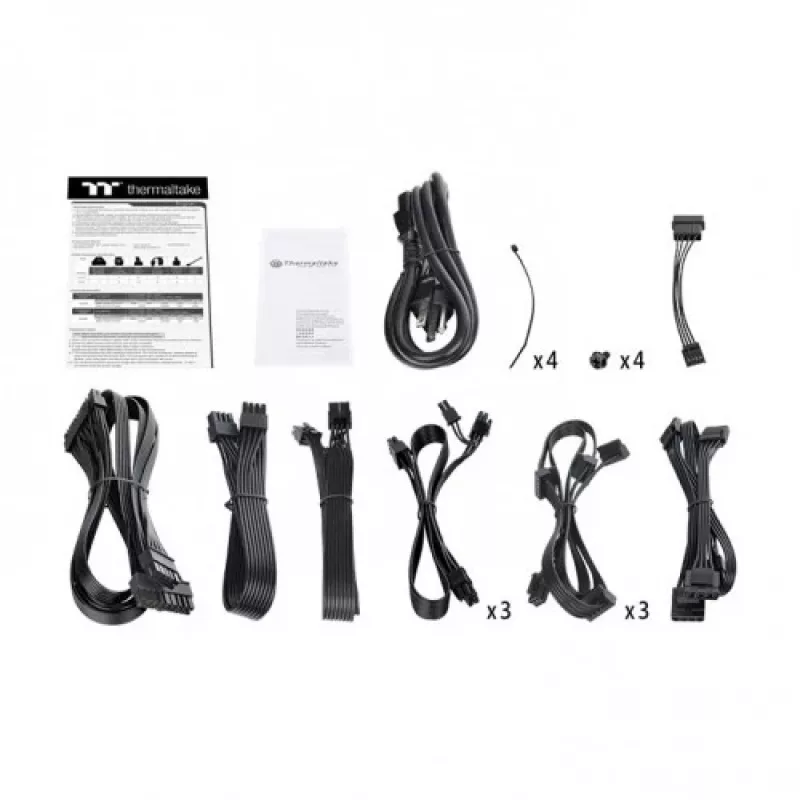

• Modularity: Fully modular, low-profile flat black cables
• Weight: 1.97 kg
• Color: Black

How to use

Install the Toughpower GF1 1200W Gold into a compatible ATX chassis and connect the 24-pin motherboard connector along with required CPU, GPU and peripheral cables from the modular cable set. Ensure the power supply is securely mounted and that all connectors are fully seated. For optimal cooling, orient the 140 mm fan according to your case airflow layout and route the flat cables to avoid obstructing airflow. Verify BIOS power settings for Intel C6/C7 states if needed.

Recommendations

Place the PSU where intake and exhaust airflow are not blocked, keep the internal area free of dust and ensure connectors match device power requirements. Use the modular cables supplied with the unit rather than third-party cables to maintain stable voltage and warranty compliance.
