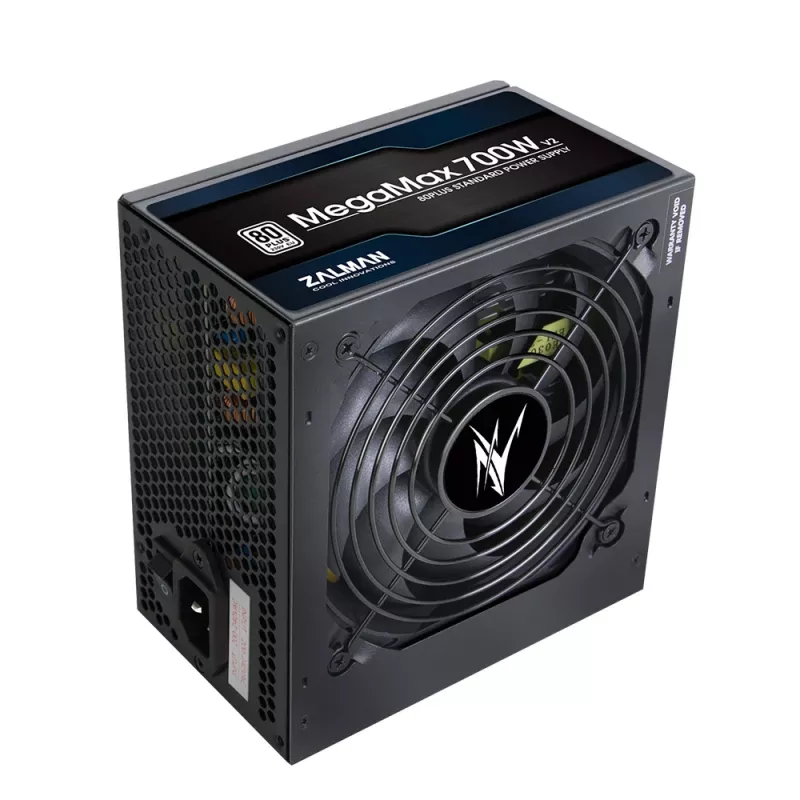

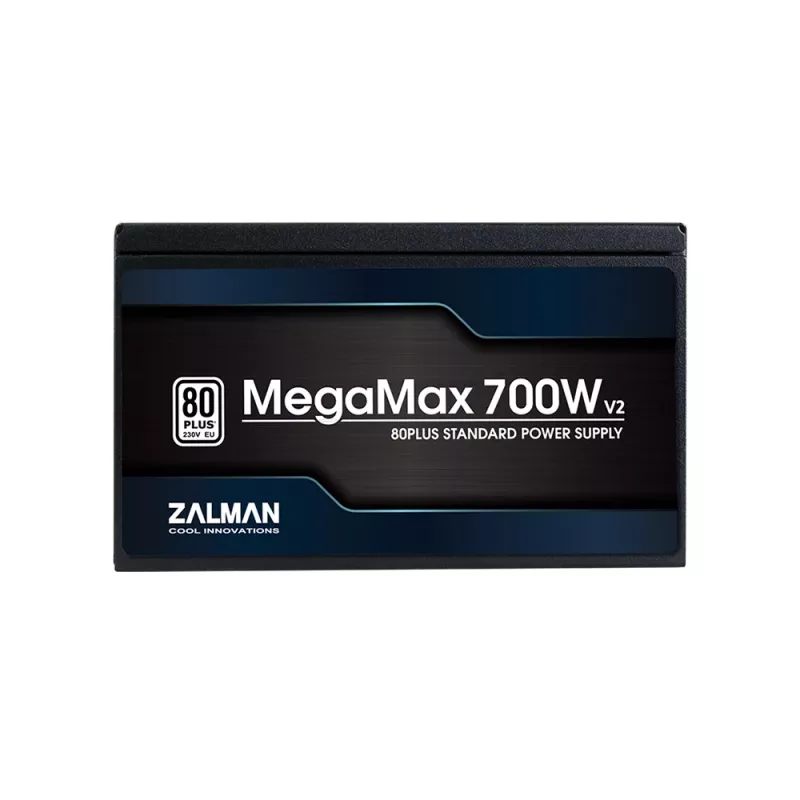

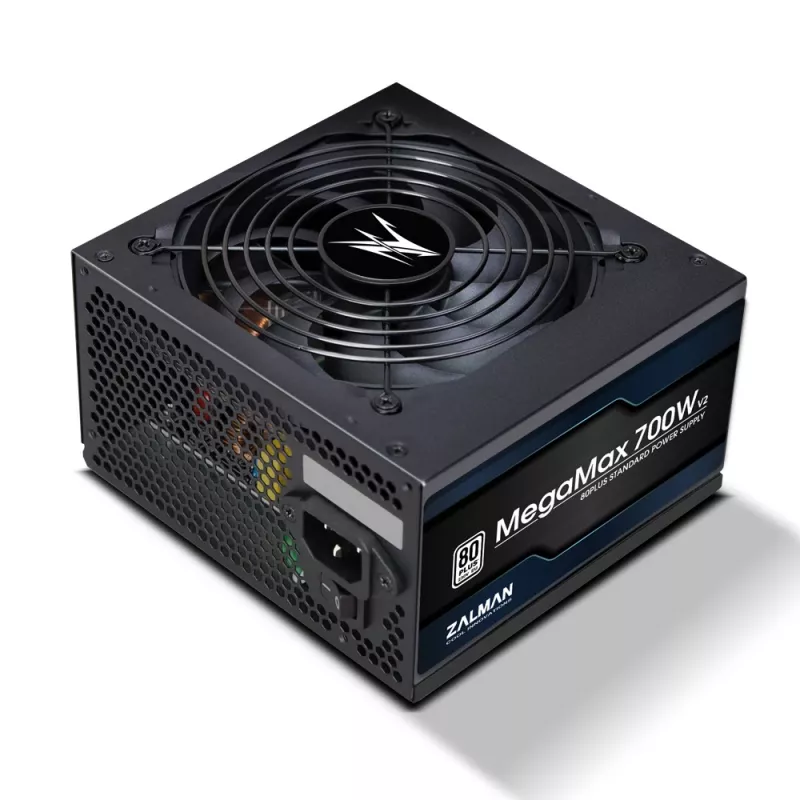

Fonte de alimentação Zalman ZM700-TXII V2 MegaMax 80PLUS 230V EU STANDARD certificada de alta eficiência PCI-E 700 W 20+4-pin ATX ATX

Zalman MegaMax [700W] ZM700-TXIIv2
80PLUS STANDARD Power Supply (2021 MegaMax Renewal Version).

80PLUS 230V EU Standard Certified
The MegaMax guarantees stable performance and efficiency certified 80 PLUS Standard.

Characteristic of low temperature
It keeps the optimized temperature value in the 100% load.

Low ripple and noise
Ripple & Noise from MegaMax conforms to Intel Power Supply Design Guide.

Active PFC with up to 98% maximum power factor
By applying an active PFC (Power Factor Correction) circuit that maximizes energy efficiency, it ensures electromagnetic wave reduction and energy efficiency while preventing reverse current.

HBD (Hydro-Dynamic Bearing) Powerful and safe HDB bearing
Quiet and smooth operation with HDB bearings. Durability is improved and life expectancy is extended. It
reduces noise and minimizes heat generation.

120mm Cooling Fan Low Noise and Powerful Cooling Performance
120mm low-noise fan delivers powerful spin even at low rpm to quickly remove heat from the power supply for optimum cooling performance.

High-quality, performance-oriented parts used to be durable and reliable
It provides a smooth power supply to the PC and reduces unnecessary power consumption by using quality parts that are durable and reliable.

Environmentally friendly products, all materials included are environmentally friendly and harmless
Certified products are environmentally friendly and do not cause any harm to the human body. Certification is received when XRF testing determines that the 10 hazardous substances are below the standard value for the electronic products exported to Europe. Unlike others
low-cost products, ZALMAN's products are produced with RoHS standards in mind from the very beginning.

Specifications
Model: MegaMax [700W] ZM700-TXII, 80PLUS STANDARD power supply
Efficiency: Max 87% @ 220 VAC, typical load
Dimensions: 140 (L) x 150 (W) x 86 (H) mm
MTBF: 100,000 hours
Weight: 1.79 kg
Operating temperature: 10 ∼ 45 °C
PFC: Active PFC 99%
Regulation: KC, CE, CB, RoHS, EAC
Type: Intel ATX 12V Ver2.31
Protection: OPP / OVP / UVP / SCP
Input voltage: 200-240 VAC
Input Current: 6A
Input Frequency: 50-60 Hz
Fan Size: 120mm
Rated speed: 2,500 rpm
Fan Bearing: Hydro-dynamic Bearing
Cables (connector): Motherboard cable, CPU cable (connector 2EA), PCI Express cable 2EA (connector 2EA), SATA cable 2EA (connector 3EA), FDD peripheral + IDE peripheral (connector 2EA), IDE peripheral cable ( connector 2EA)

Zalman ZM700-TXII V2 MegaMax 80PLUS 230V EU STANDARD Certified high efficiency PCI-E. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 480 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
