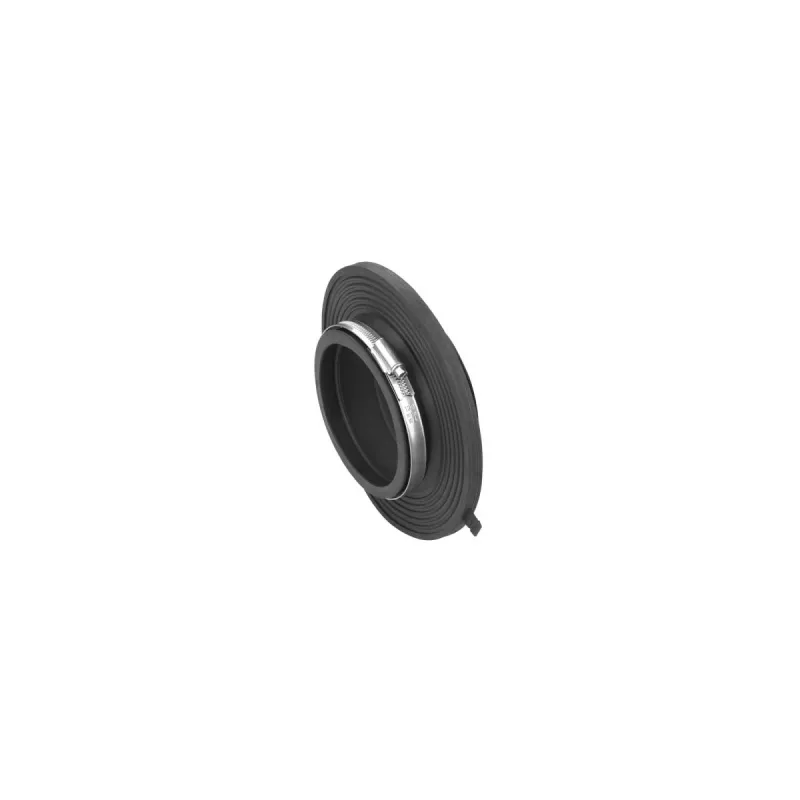

Conjunto de mangas de parede Fränkische para Kabuflex NW 110 19960110

Wall collar set for sealing Kabuflex cable conduits through walls, providing gas-tight and water-tight sealing up to 2.5 bar pressure. Compatible with Fränkische Kabuflex S, R, and F conduit systems with nominal width 110 mm.

Advantages

EPDM collar with UV resistance and temperature range from -30°C to +100°C. For core drilled openings of 120 mm diameter in concrete or masonry walls.

Suitable for

• Sealing cable conduits through walls
• Kabuflex S, R, F conduit systems
• Concrete and masonry walls

Key specifications

• Nominal width: 110 mm
• Core drilling diameter: 120 mm
• Sealing type: gas-tight, water-tight
• Pressure resistance: up to 2.5 bar
• Material: EPDM
• Temperature range: -30°C to +100°C
• UV resistant
• Components: wall collar, sealing rings, lubricant

Recommendations

For professional sealing of cable conduits in building entries and wall penetrations.
