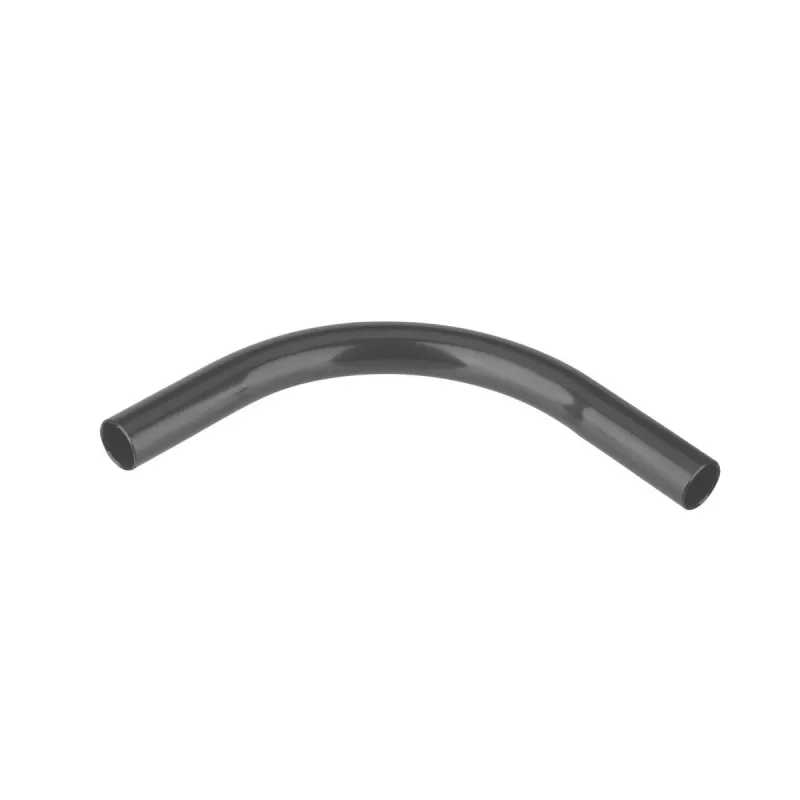

Curva em tubo de aço para StaroSteck-ES, DN40, 90°, lacado a preto 20360040

Conduit bend for the StaroSteck-ES conduit system, engineered for secure 90° changes in direction in electrical installations. Its push-fit connection ensures quick, tool-free assembly, while the black lacquered steel construction provides robust mechanical protection for cables.

Advantages

The bend is made of steel and finished with a black lacquer, offering high impact resistance and corrosion protection. The push-fit connection allows for fast installation without additional tools, reducing labour time. It is halogen-free and suitable for a wide temperature range from -25°C to +150°C, making it versatile for various environments.

Suitable for

• Electrical installation in industrial and commercial buildings
• Cable protection in areas requiring high mechanical strength
• Use with the StaroSteck-ES conduit system

Key specifications

• Material: Steel
• Nominal diameter: DN40 (40 mm)
• Bend angle: 90°
• Bend radius: 160 mm
• Connection type: Push-fit
• Surface finish: Black lacquered
• Temperature range: -25°C to +150°C
• Halogen-free: Yes

Recommendations

For a complete conduit run, pair this bend with compatible StaroSteck-ES straight conduits and fittings. Ensure proper sealing to achieve the system's IP65 rating when required.
