FRAENKISCHE Luva de encaixe em plástico p. FBY-EL FFKuS-EM RMKu-E 50 (25930050)

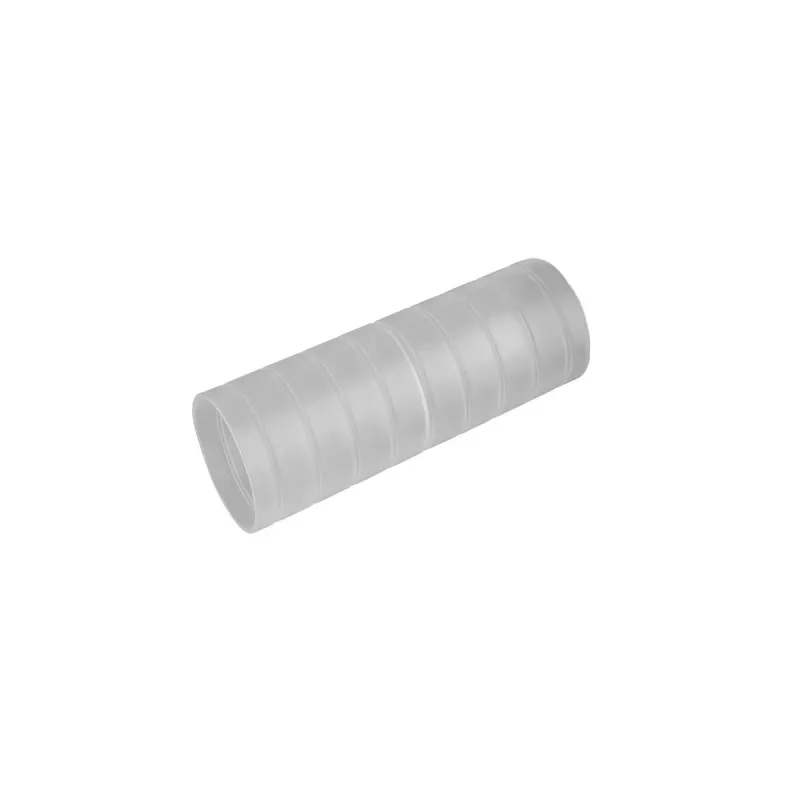

The FRAENKISCHE Kunststoff-Steckmuffe 25930050 is a push-fit conduit coupling designed to join FBY-EL, FFKuS-EM, and RMKu-E conduits with a 50 mm nominal diameter. Its plastic construction and grey finish integrate with standard electrical installation systems.

Highlights

• Push-fit socket connection for quick assembly
• Compatible with FBY-EL, FFKuS-EM, and RMKu-E conduit systems
• Halogen-free and flame retardant
• Operating temperature range: -25 °C to +60 °C

Full specifications

• Product Type: Conduit Coupling
• Material: Plastic
• Connection Type: Push-fit / Socket
• Nominal Diameter: 50 mm
• Colour: Grey
• IP Rating: IP40
• Halogen-free: Yes
• Flame Retardant: Yes
• Operating Temperature Range: -25 °C to +60 °C
• Installation Temperature Range: -5 °C to +60 °C
• UV Resistance: No
• Resistance to Compression: Medium
• Standard Compliance: DIN EN 61386-22
• Mounting Method: Push-in

Final note

This coupling is intended for use with compatible FRAENKISCHE conduits in electrical installations.
