Gateway TP-LINK ER603WP-4G-Outdoor Omada 4G Cat4 N300 Outdoor PoE Cloud-Managed para montagem em parede/poste

The TP-LINK ER603WP-4G-Outdoor is a robust Omada 4G Cat4 N300 Outdoor PoE Gateway designed for reliable cloud-managed connectivity in harsh outdoor environments. This gateway combines 4G LTE Cat4 cellular backup with N300 Wi-Fi, offering seamless failover and remote management via the Omada SDN Controller. Its IP65 weatherproof housing and wall/pole mountability make it ideal for outdoor deployments such as surveillance, kiosks, and remote sites.

Advantages

With integrated 4G LTE Cat4 (up to 150 Mbps downlink) and dual-band N300 Wi-Fi, this gateway ensures continuous connectivity even when wired connections fail. The PoE input (802.3af/at) simplifies installation by powering the device over Ethernet, while one PoE output port can power an external device like an IP camera. Cloud management via Omada SDN Controller allows centralized configuration, monitoring, and firmware updates from anywhere.

Suitable for

• Outdoor surveillance systems requiring reliable cellular backup
• Remote monitoring and control in agriculture, oil & gas, or smart cities
• Temporary event networks or construction sites needing quick deployment
• Branch offices or retail stores with limited wired internet options

Key specifications

• 4G LTE Cat4: Download up to 150 Mbps, Upload up to 50 Mbps
• Wi-Fi: 802.11b/g/n, N300 (2.4 GHz)

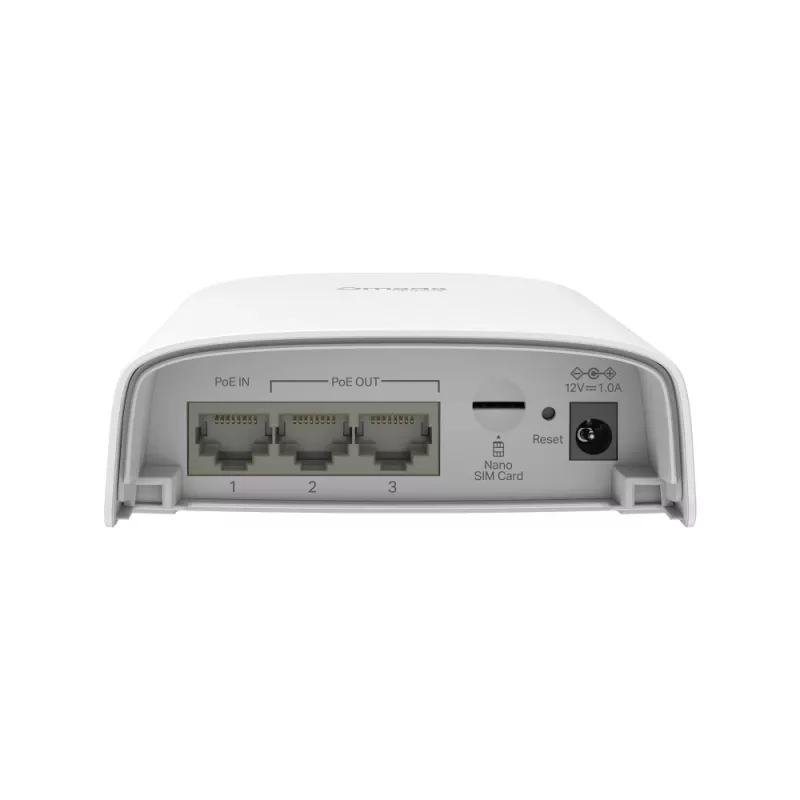

• Ethernet: 1x Gigabit WAN/LAN (PoE input), 2x Gigabit LAN (1x PoE output)
• SIM Slot: 1x Nano SIM
• Outdoor Rating: IP65 weatherproof
• Lightning Protection: 6KV, ESD Protection: 8KV
• Management: Omada SDN Controller (Cloud/Hybrid Cloud), Standalone
• VPN: IPsec, OpenVPN, L2TP, PPTP (up to 20 tunnels)
• Power: 802.3af/at PoE (injector not included)
• Operating Temperature: -30 to 70 °C

Recommendations

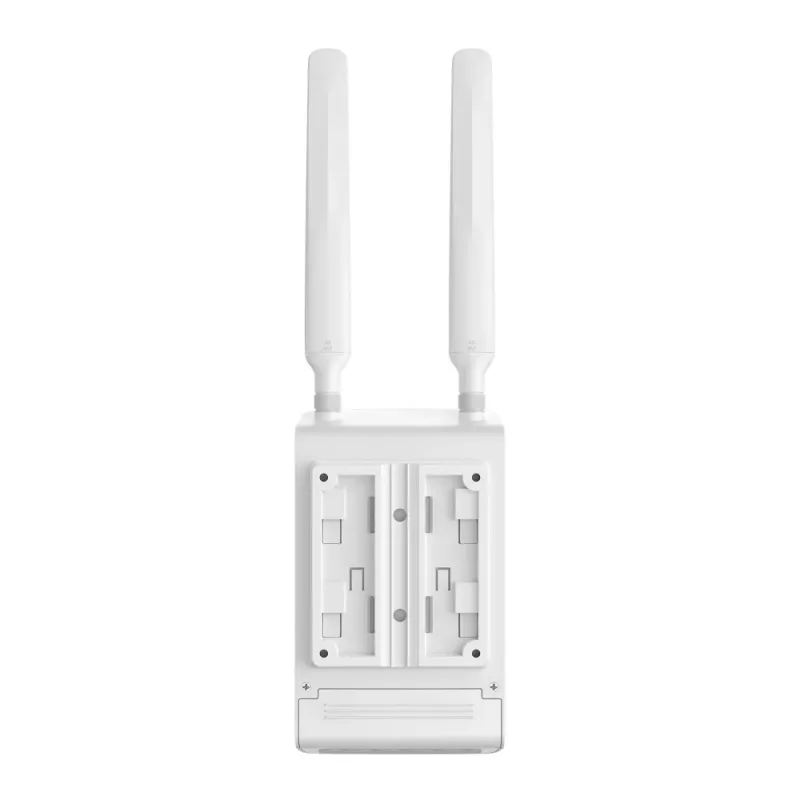

For optimal performance, use a PoE injector or PoE switch that supports 802.3af/at. The gateway is wall/pole mountable; mounting kit included. Ensure the SIM card is activated with a data plan. For cloud management, set up the Omada SDN Controller on a local server or cloud service.
