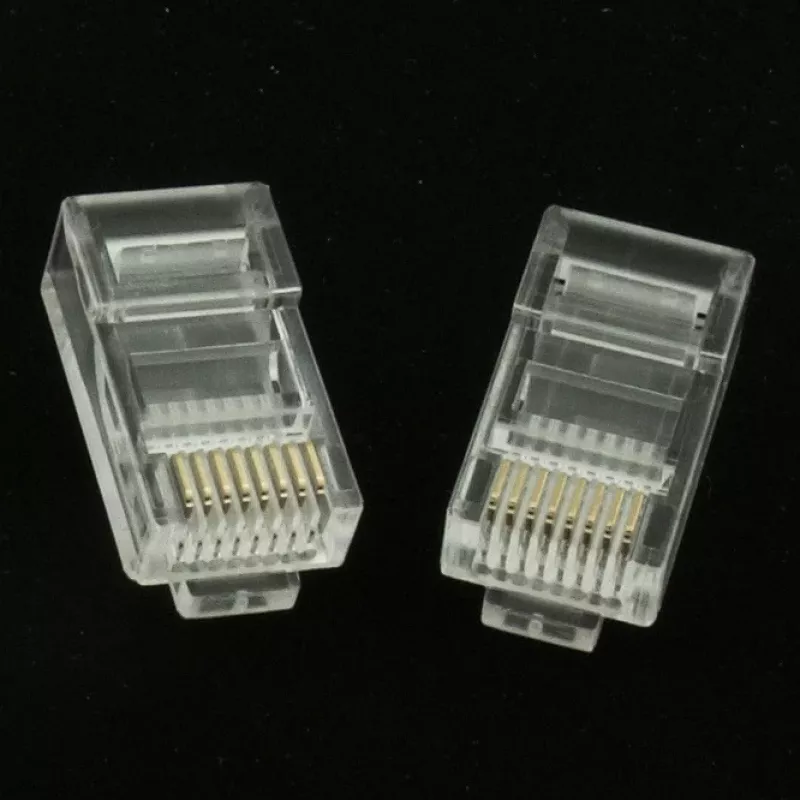

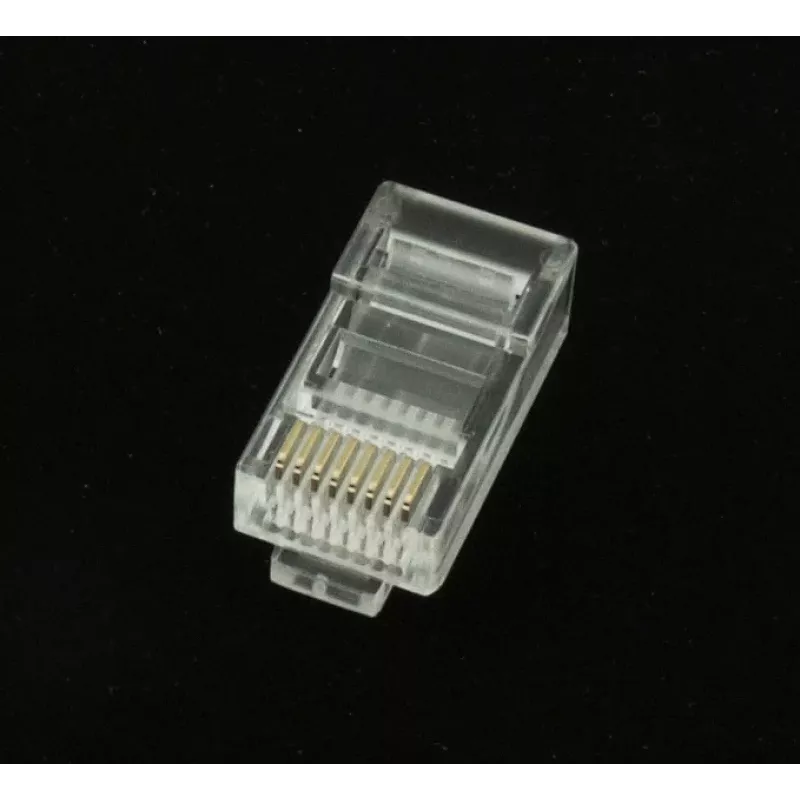

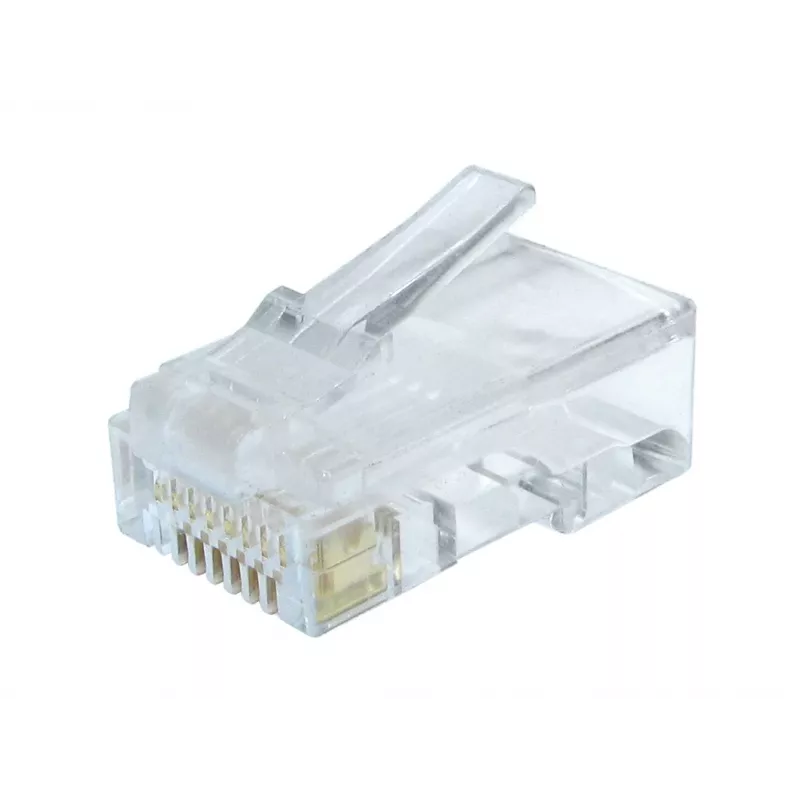

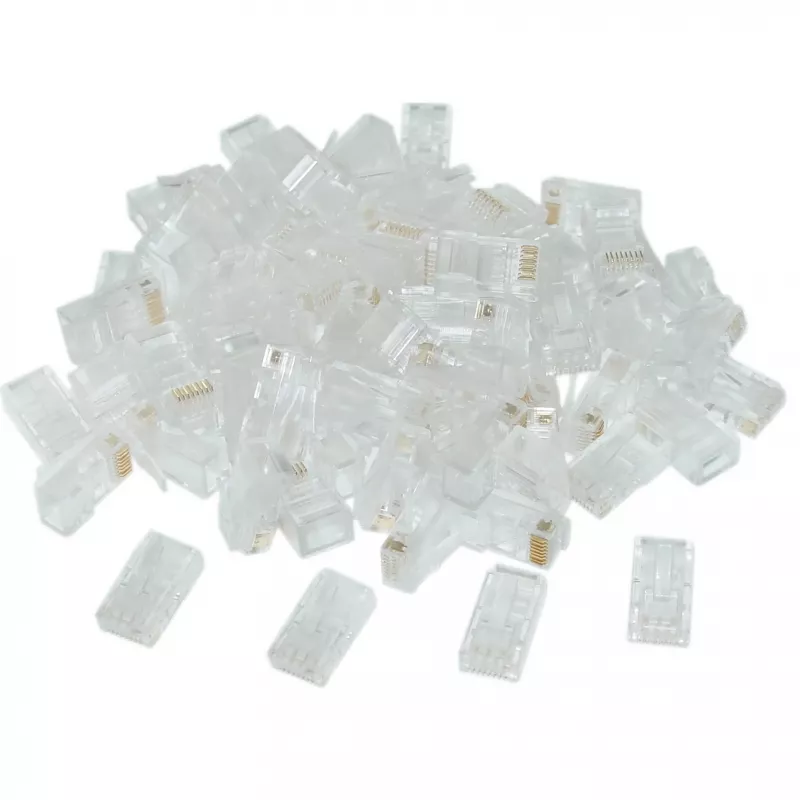

Gembird LC-8P8C-002/50 Ficha modular RJ-45, transparente, dourada, pack de 50

The Gembird LC-8P8C-002/50 is a high-quality RJ-45 modular plug designed for professional Ethernet network cabling. This pack contains 50 pieces, each featuring a transparent polycarbonate housing and gold-plated contacts for reliable, corrosion-free connections. Suitable for both solid and stranded conductors, these plugs are compatible with Cat5e and Cat6 cables, supporting data rates up to 1000 Mbps (Gigabit Ethernet).

Advantages

Gold-plated contacts with 3µ thickness ensure optimal conductivity and long-term durability. The transparent housing allows for easy visual inspection of wire placement, reducing installation errors. Unshielded (UTP) design is ideal for standard office and home networking environments.

Suitable for

• Ethernet network cabling (Cat5e, Cat6)
• RJ-45 connector termination for patch cables and structured cabling
• DIY and professional network installations

Key specifications

• Product Type: Modular Plug
• Connector Type: RJ-45 (8P8C)
• Pack Quantity: 50 pieces
• Contact Plating: Gold (3µ)
• Shielding: Unshielded (UTP)
• Housing Material: Polycarbonate (PC)
• Colour: Transparent
• Conductor Support: Solid and Stranded
• Termination Method: Crimp
• Dimensions (L x W x H): 25 mm x 12 mm x 12 mm
• Weight per Connector: 2 g
• Maximum Data Rate: Up to 1000 Mbps
• Certifications: RoHS Compliant
• Operating Temperature: -10°C to 60°C

Recommendations

For best results, use with a quality crimping tool and ensure proper wire sequence (T568A or T568B). Test each terminated cable with a network cable tester to verify connectivity.
