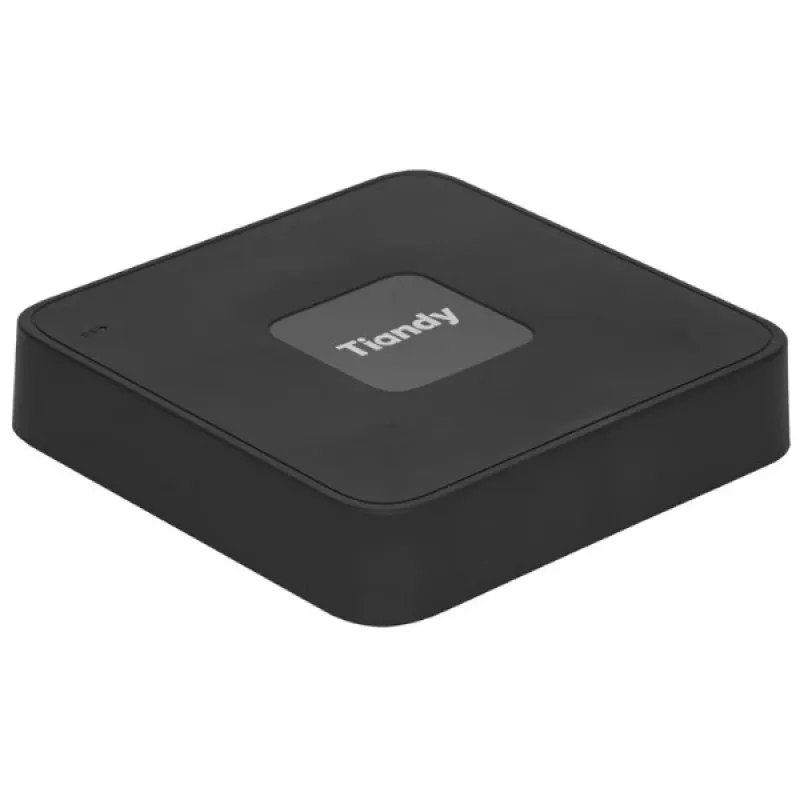

Tiandy TC-R3108 NVR IP de 8 canais com 8 portas PoE, gravação 8MP, H.265+, HDMI/VGA

The Tiandy TC-R3108 is an 8-channel IP network video recorder engineered for small to medium surveillance installations, delivering 8MP recording resolution and integrated PoE for streamlined deployment. With eight PoE ports and a 120W power budget, this NVR powers IP cameras directly over Ethernet, eliminating separate power supplies and simplifying wiring. It supports H.265+ compression to reduce bandwidth and storage requirements while maintaining high-quality video. The recorder features HDMI and VGA outputs, with HDMI supporting up to 4K resolution, and includes one SATA bay for up to 10TB of storage. Embedded Linux ensures stable operation, while the Tiandy View Pro mobile app enables remote access and management. This NVR is ideal for retail stores, offices, and residential properties requiring reliable, high-definition surveillance.

Advantages

The TC-R3108 combines eight PoE ports with 8MP recording capability, offering a cost-effective and efficient solution for IP camera systems. Its H.265+ compression technology significantly reduces storage needs, while the 4K HDMI output provides crisp live and playback viewing. The unit's fanless design ensures silent operation, and the embedded Linux OS delivers robust performance. With support for smart analytics like motion detection and line crossing (camera dependent), this NVR enhances security monitoring.

Suitable for

• Small retail stores and boutiques requiring discreet, high-quality surveillance
• Office buildings needing centralized recording for multiple IP cameras
• Residential homes with up to 8 PoE cameras for perimeter monitoring
• Warehouses and small industrial sites where PoE simplifies installation

Key specifications

• 8 IP camera channels, each supporting up to 8MP resolution
• 8 PoE ports with IEEE 802.3af/at, total budget 120W
• Video compression: H.265+/H.265/H.264+/H.264
• 1 HDMI (up to 4K) and 1 VGA output
• 1 SATA bay, supports up to 10TB HDD (not included)
• Network: 1 RJ45 10/100/1000Mbps Ethernet port
• 2 USB 2.0 ports for mouse and backup
• Audio: 1 RCA input, 1 RCA output, two-way audio support
• Operating temperature: -10°C to +55°C
• Power supply: DC 48V
• Mobile app: Tiandy View Pro (TVP) for iOS and Android
• Smart analytics: motion detection, line crossing, intrusion, object left/removed (camera dependent)

Recommendations

For optimal performance, pair the TC-R3108 with Tiandy IP cameras that support H.265+ and smart analytics. Use a surveillance-grade hard drive (e.g., WD Purple) up to 10TB for reliable 24/7 recording. Ensure the PoE budget is not exceeded: with all 8 ports used, average per-port power should be under 15W. Configure remote access via the Tiandy View Pro app for convenient monitoring from anywhere.
