Genius Brain JA592/FAAC 452MPS Comando para automatismos de portões de batente

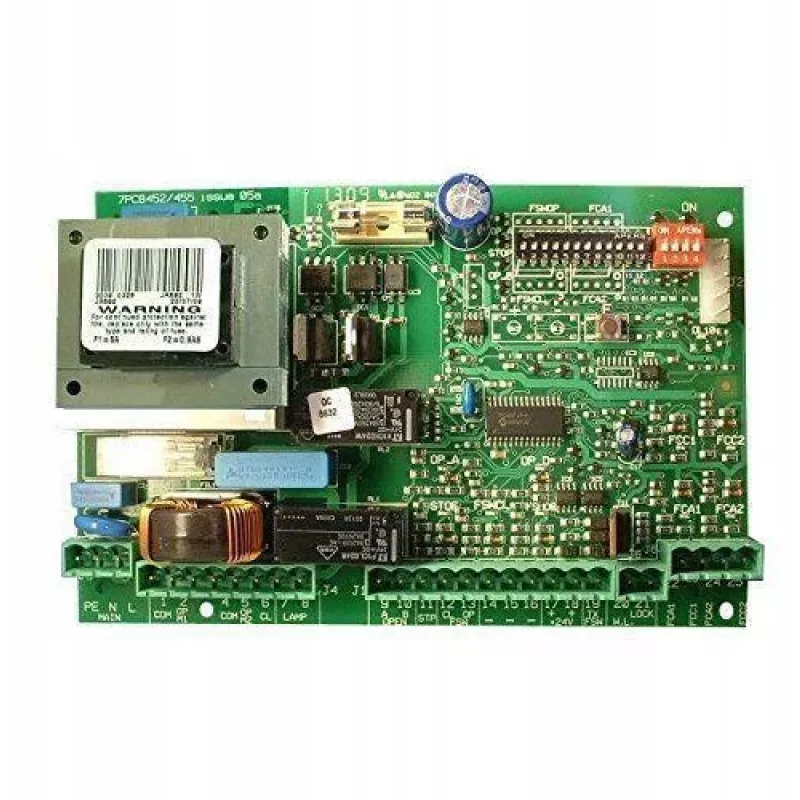

The Genius Brain JA592/FAAC 452MPS is a microprocessor-based control unit designed for 230V AC swing gate operators. It supports single or dual motor operation and features a built-in 433.92 MHz rolling code radio receiver compatible with Genius and FAAC SLH transmitters. The unit offers adjustable functions including automatic closing time, motor force, soft start/stop, and pedestrian opening. Safety inputs for photocell, safety edge, and stop ensure reliable operation. Outputs for electric lock and flashing light are provided. Compatible with Genius 230V AC swing gate motors such as G-BAT and KRONO.

Advantages

Reliable microprocessor control with rolling code security. Flexible programming via dip-switches and potentiometers. Supports up to 63 transmitters. Suitable for residential and commercial swing gate applications.

Suitable for

• Genius 230V AC swing gate motors (G-BAT, KRONO)
• FAAC 452MPS compatible systems
• Single or dual motor swing gates

Key specifications

• Input Power Supply: 230V AC, 50/60 Hz
• Motor Output Voltage: 230V AC
• Max Motor Power: 800 W
• Max Accessory Output: 24V DC, 500 mA
• Radio Frequency: 433.92 MHz
• Radio Code: Genius/FAAC SLH Rolling Code
• Receiver Capacity: Up to 63 transmitters
• Safety Inputs: Photocell, Safety Edge, Stop
• Electric Lock Output: 230V AC
• Flashing Light Output: 230V AC
• Operating Temperature: -20°C to +55°C
• Protection Class: IP00

Recommendations

For optimal performance, use with Genius 230V AC swing gate motors and compatible transmitters. Ensure proper installation by a qualified technician.
