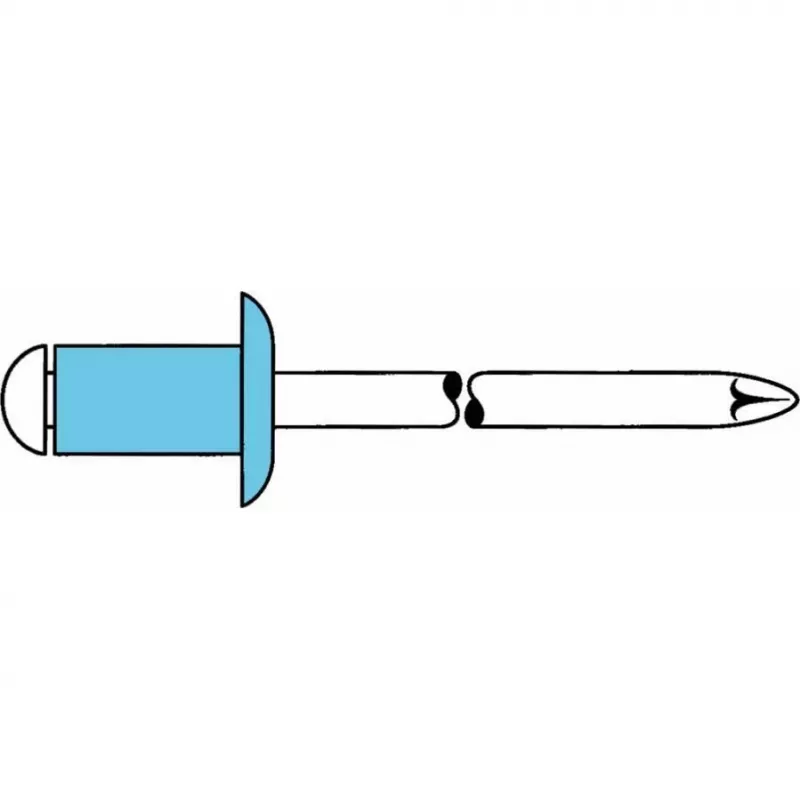

GESIPA rebite cego aço inoxidável A2 5x8mm cabeça abaulado larga faixa de aperto 2-4mm (6330924) 6330924 LEGIERUNGSZUSCHL

When fastening materials in corrosive environments, ordinary rivets fail quickly. The GESIPA Blind Rivet VA A2 5x8mm solves this with a stainless steel A2 body and mandrel, offering high corrosion resistance for indoor and outdoor applications. Its dome head (Flachrundkopf) provides a clean, low-profile finish, while the 5mm diameter and 8mm length suit a grip range of 2-4mm, making it ideal for joining thin sheets or components where access is limited to one side.

Who is it for

This rivet is for professionals and DIYers who need durable, corrosion-resistant fastening in marine, automotive, construction, or general metalwork. It works with standard blind rivet tools and is suitable for stainless steel, aluminium, and other materials where a secure, permanent joint is required.

Main features

• Stainless steel A2 (AISI 304) body and mandrel for high corrosion resistance
• Dome head (Flachrundkopf) for a neat, finished appearance
• 5mm diameter and 8mm length with a grip range of 2-4mm
• Complies with DIN 7337 standard for blind rivets
• Drill hole diameter: 5.1-5.2mm
• Typical shear strength: 2.5 kN; tensile strength: 3.5 kN

Specifications

• Rivet Type: Blind Rivet
• Material (Rivet Body): Stainless Steel A2 (AISI 304)
• Material (Mandrel): Stainless Steel A2 (AISI 304)
• Rivet Diameter: 5 mm
• Rivet Length: 8 mm
• Grip Range: 2 - 4 mm
• Head Type: Dome Head (Flachrundkopf)
• Head Diameter: 9.5 mm
• Head Height: 1.5 mm
• Drill Hole Diameter: 5.1 - 5.2 mm
• Shear Strength: 2.5 kN
• Tensile Strength: 3.5 kN
• Finish: Natural / Bright
• Standard Compliance: DIN 7337

Tips

For best results, drill a hole of 5.1-5.2mm diameter and ensure the total material thickness falls within the 2-4mm grip range. Use a blind rivet tool with appropriate nosepiece for 5mm rivets. Store in a dry place to maintain the bright finish.
