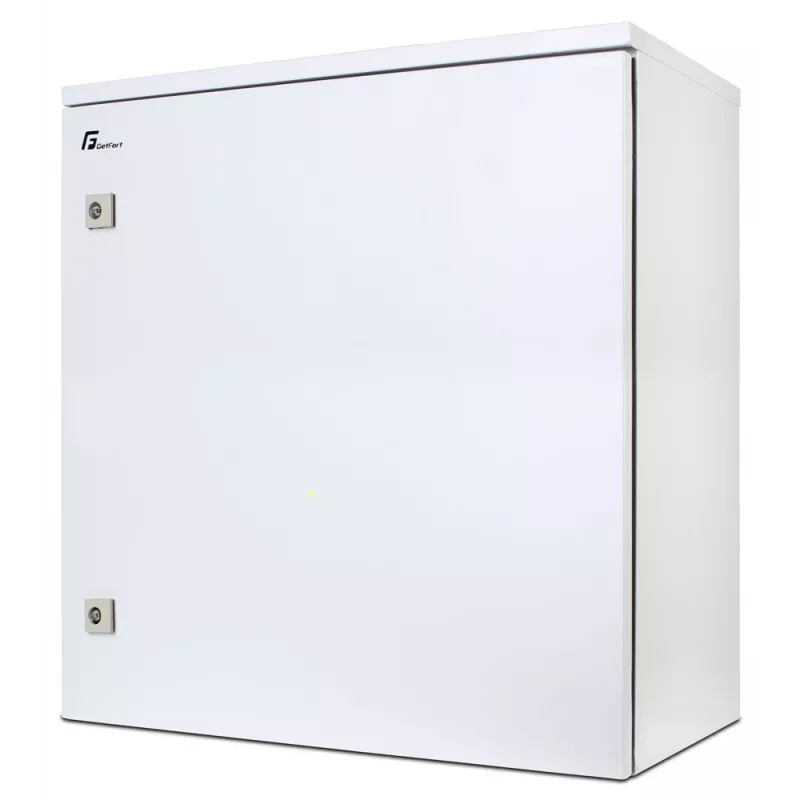

Getfort Armário de rack hermético 19 polegadas 9U para montagem na parede 550x320 mm cinzento

The Getfort HGF09-53E-WSG is a high-quality hermetic wall-mount rack cabinet designed for secure and reliable installation of 19-inch network and industrial equipment in demanding environments. With a compact 9U height and robust IP54 protection, this enclosure is ideal for outdoor, industrial, and harsh settings where dust, moisture, and physical impact are concerns.

Advantages

This rack cabinet offers exceptional protection with its sealed design, preventing ingress of dust and water jets. The powder-coated steel construction ensures durability and longevity, while the integrated key lock provides security for valuable equipment. The wall-mountable design saves floor space and allows for flexible placement.

Suitable for

• Outdoor telecommunications and networking installations
• Industrial automation and control systems
• Security and surveillance equipment housing
• IT infrastructure in warehouses, factories, and workshops

Key specifications

• Rack Standard: 19-inch
• Rack Units: 9U
• Enclosure Type: Wall-Mount, Hermetic/Outdoor
• IP Protection Rating: IP54
• External Dimensions (WxDxH): 600 x 550 x 500 mm
• Usable Internal Depth: ~480 mm
• Material: Powder-coated steel

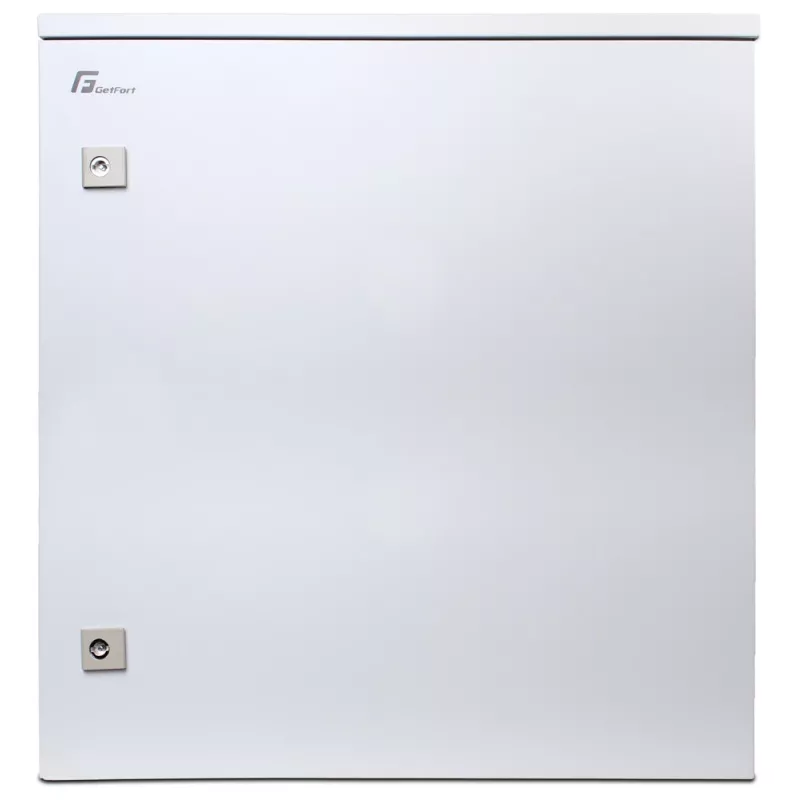

• Door Type: Single metal door, front

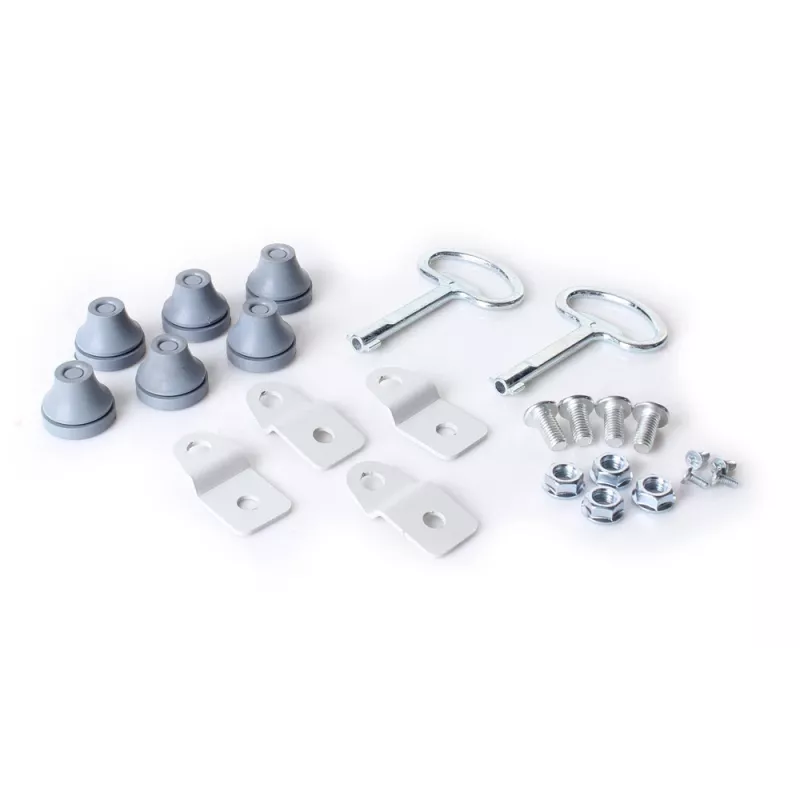

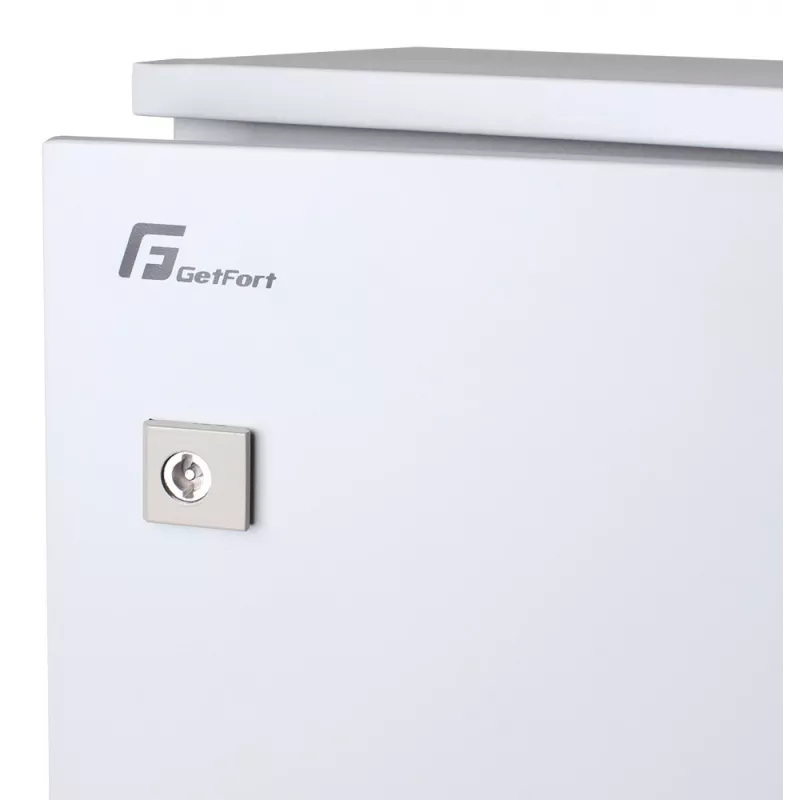

• Lock Type: Key lock (2 keys included)
• Cable Entry: Sealed cable glands (bottom)
• Mounting Type: Wall-mountable
• Color: Grey (RAL 7035)
• Maximum Static Load Capacity: 60 kg
• Ventilation: Passive (sealed design)

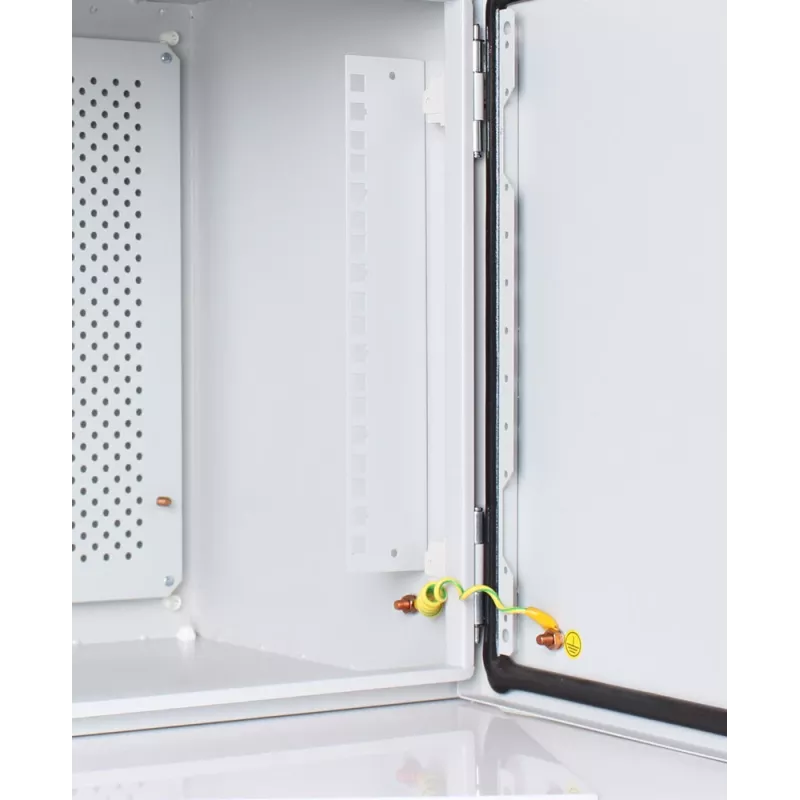

• Grounding: Integrated grounding points

Recommendations

For optimal performance, ensure the wall mounting surface is capable of supporting the total weight of the cabinet and installed equipment. Use appropriate fixings for the wall type. The sealed design limits passive cooling; consider active cooling solutions if high-power equipment is installed.
