Getfort Armário de rack hermético para montagem na parede 10 polegadas 6U 330x230mm IP54 cinzento-claro

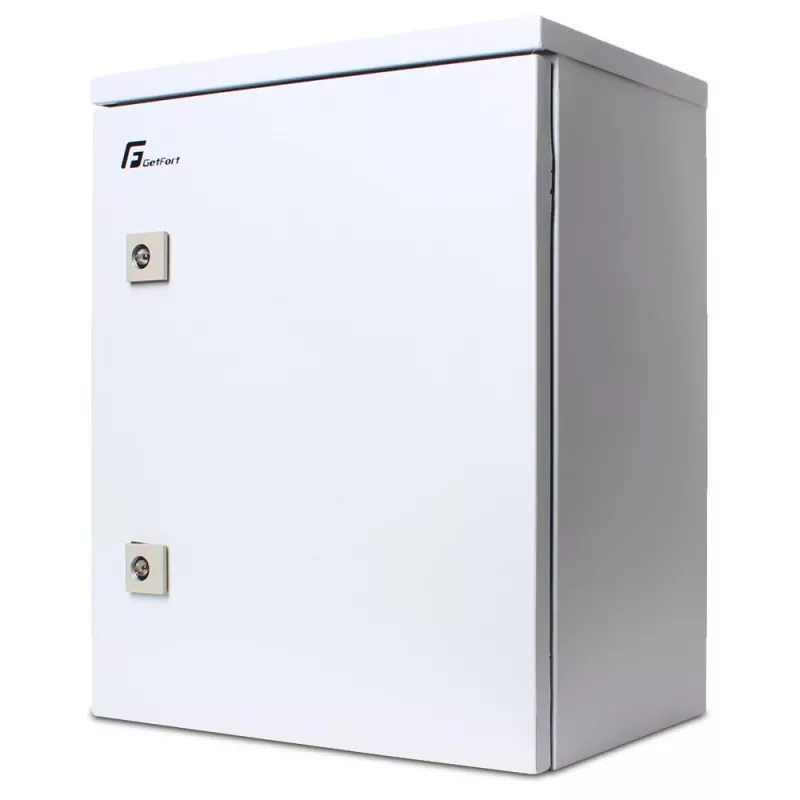

The Getfort HGF06-32E-WSG is a high-quality hermetic wall-mount rack cabinet designed for secure and reliable installation of 10-inch network and telecommunications equipment. With a compact 6U form factor and robust IP54 protection, this enclosure is ideal for outdoor, industrial, and CCTV applications where dust and water ingress must be minimized.

Advantages

Built with a powder-coated steel welded frame, this cabinet offers exceptional durability and a long service life. The IP54 rating ensures protection against dust and splashing water, making it suitable for harsh environments. The solid metal door with a single-point key lock provides security for your valuable equipment. Cable entry is facilitated through sealed gland entries at the bottom, maintaining the enclosure's integrity.

Suitable for

• Outdoor and industrial network installations
• CCTV and surveillance systems
• Telecommunications equipment housing
• Secure wall-mounted server and patch panel enclosures

Key specifications

• Rack Standard: 10-inch
• Rack Units: 6U
• External Dimensions (HxWxD): 330 x 310 x 230 mm
• Usable Internal Depth: ~200 mm
• Material: Powder-coated Steel
• Colour: Light Grey (RAL 7035)
• Door: Solid metal door with 180° opening angle

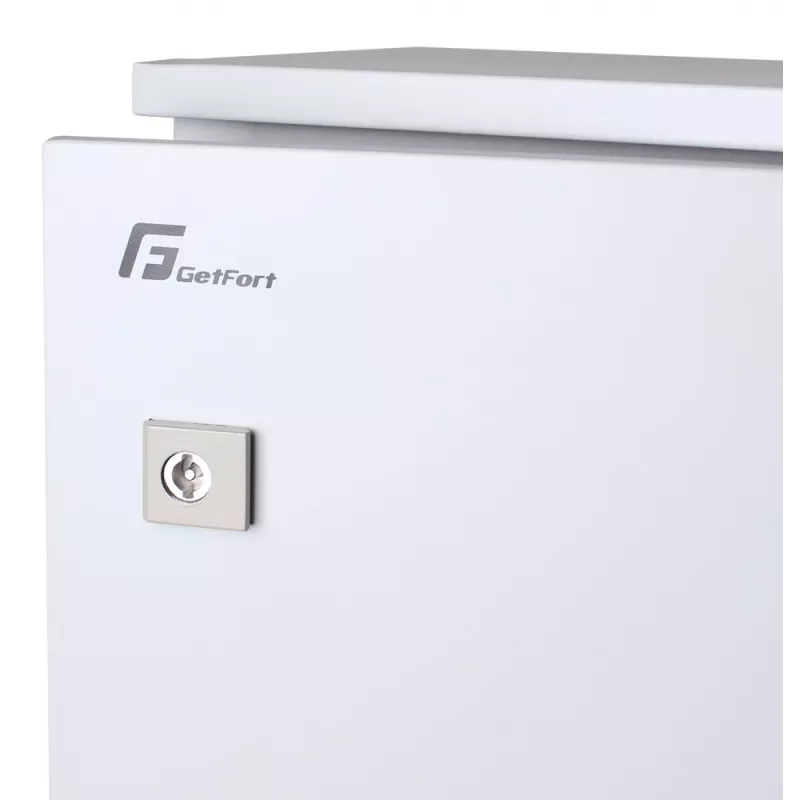

• Locking: Single-point key lock
• IP Rating: IP54
• Max Static Load Capacity: 20 kg
• Mounting: Wall-mountable with pre-drilled holes
• Ventilation: Passive (no active fans)

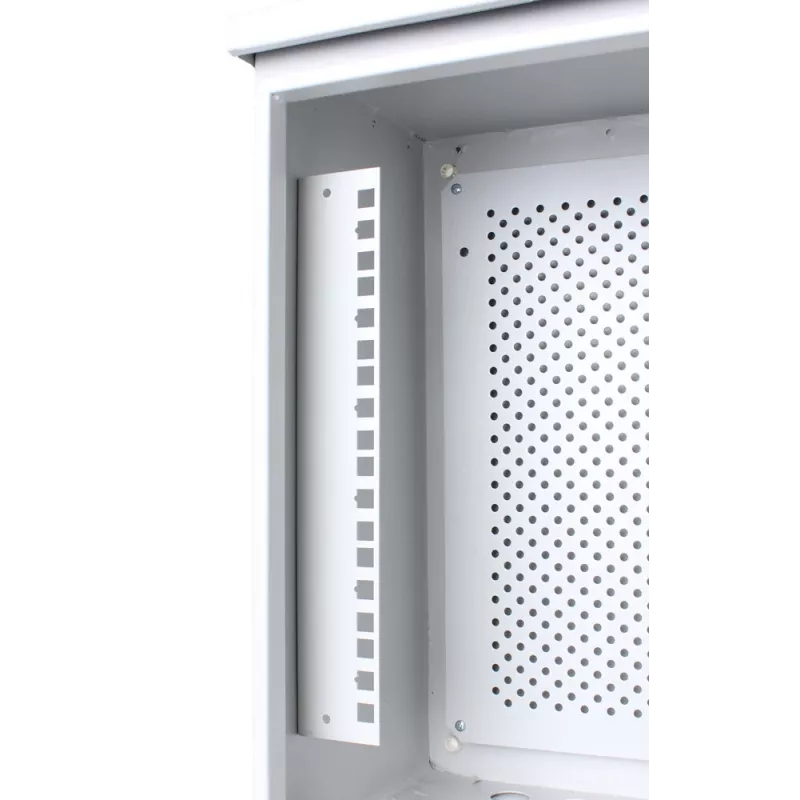

• Rack Profiles: Two 10-inch front mounting profiles

Recommendations

For optimal performance, ensure the cabinet is mounted on a solid wall capable of supporting the total weight of the enclosure and installed equipment. Use appropriate sealing for cable entries to maintain the IP54 rating. This cabinet is designed for indoor and outdoor use but should be sheltered from direct, prolonged exposure to heavy rain or extreme conditions.
