GETFORT Ficha Modular RJ45 Cat.6 8P8C UTP com Guia de Fios Integrado (pack de 100)

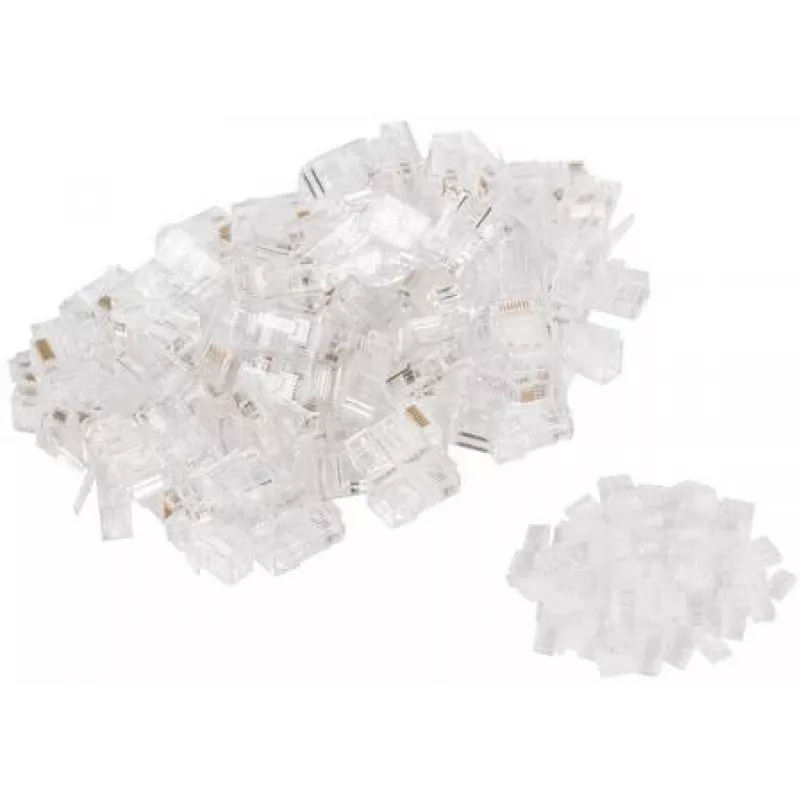

The GETFORT RJ45 Cat.6 8P8C UTP modular plug is designed for high-performance Ethernet networking, supporting data transfer rates up to 10 Gigabit Ethernet (10GBASE-T) with a frequency bandwidth of up to 250 MHz. Each plug features an integrated wire guide (load bar) for easy and reliable termination of solid or stranded conductors (23-26 AWG). The 50-micron gold-plated contacts ensure optimal conductivity and corrosion resistance, while the transparent high-impact polycarbonate housing allows for visual inspection of wire placement. This pack contains 100 plugs, ideal for bulk installations in structured cabling systems.

Advantages

• Supports 10GBASE-T for future-proof network speeds
• Integrated wire guide simplifies termination and reduces errors
• 50µ gold plating ensures reliable connections over many mating cycles
• Compatible with standard RJ45 crimping tools
• Transparent housing for easy wire verification

Suitable for

• Ethernet network installations in offices, data centers, and homes
• Terminating Cat.6 and Cat.5e solid or stranded cables
• Custom patch cable manufacturing
• Structured cabling systems requiring high reliability

Key specifications

• Connector Type: RJ45
• Category: Cat.6
• Pin Configuration: 8P8C
• Shielding: UTP (Unshielded)
• Contact Plating: 50 Micron Gold
• Housing Material: High-Impact Polycarbonate (PC)
• Wire Compatibility: Solid and Stranded
• Wire Gauge: 23-26 AWG

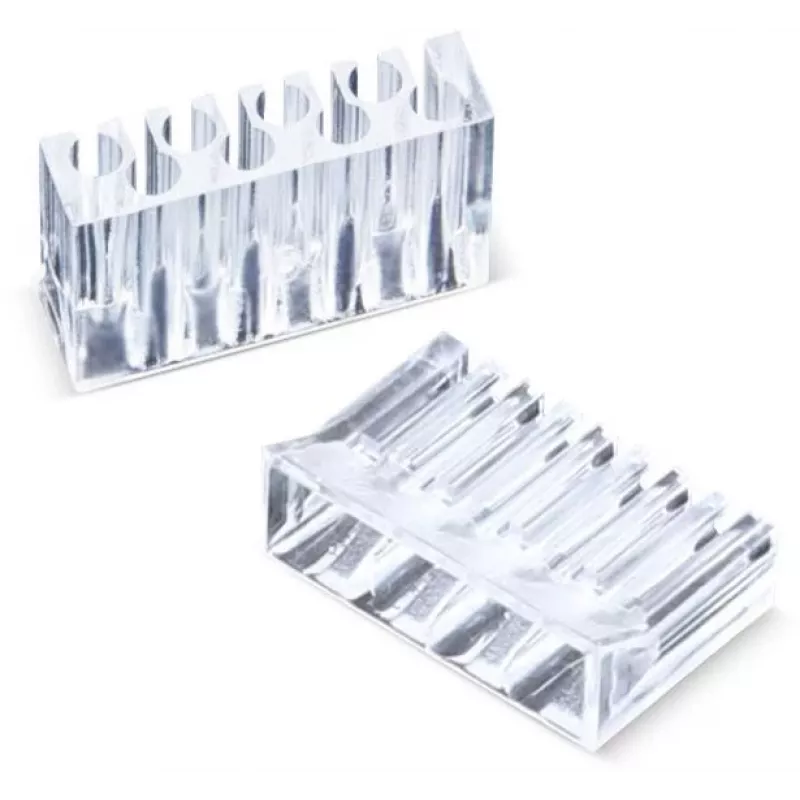

• Special Feature: Integrated Wire Guide (Load Bar)
• Quantity: 100 Plugs
• Termination: Crimp-on
• Max Data Rate: 10 Gigabit Ethernet (10GBASE-T)
• Frequency Bandwidth: 250 MHz
• Standard Compliance: TIA/EIA-568-C.2
• Color: Transparent
• Operating Temperature: -10°C to 60°C
• Mating Cycles: 750 cycles minimum

Recommendations

For best performance, use with Cat.6 or higher cabling and ensure proper crimping technique. Always test terminated plugs with a cable tester to verify continuity and wiring standards.
