GETFORT GF-102-1G-S Conversor de Media SFP para RJ45 1000Mbps

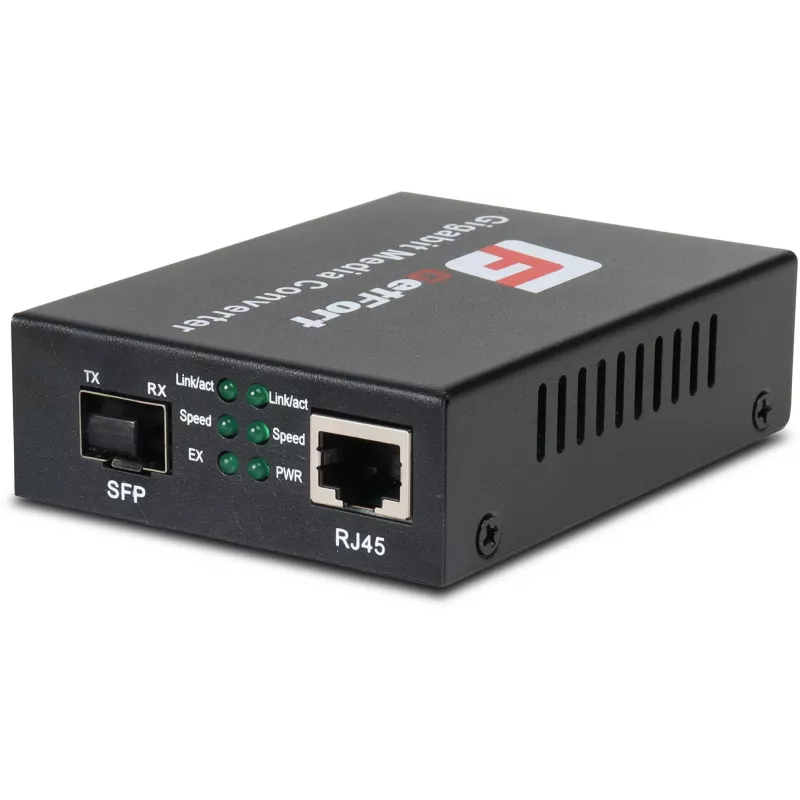

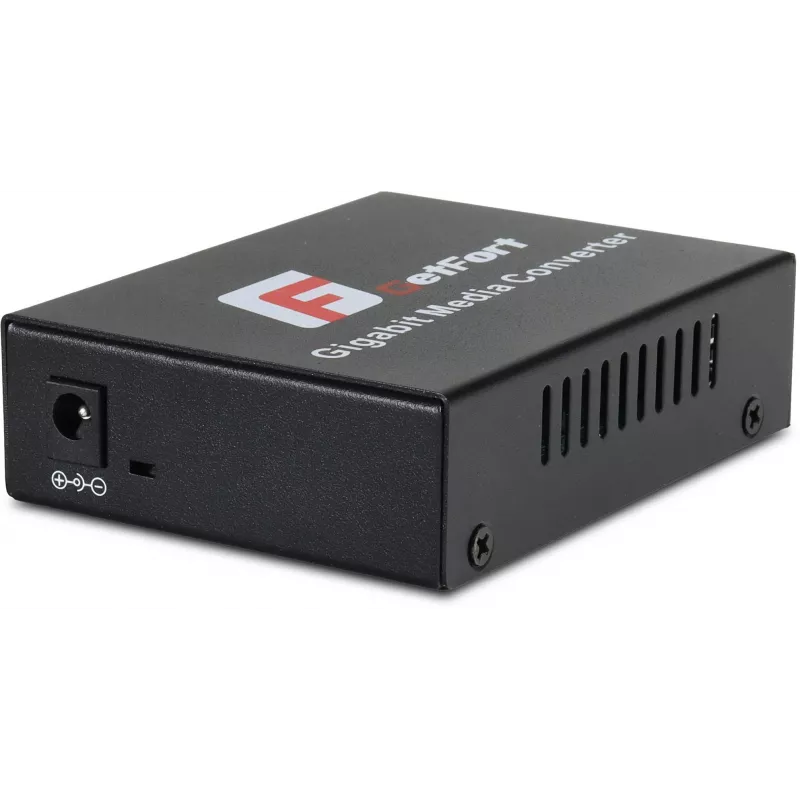

The GETFORT GF-102-1G-S is a high-performance media converter designed to seamlessly connect SFP fiber optic modules to RJ45 copper networks. Supporting data rates of 10/100/1000Mbps with auto-negotiation, it ensures reliable and fast data transmission for enterprise and industrial applications. Its compact metal housing and versatile mounting options make it ideal for desktop or wall-mounted installations.

Advantages

This media converter offers hot-pluggable SFP slot for easy fiber connectivity, auto MDI/MDIX on the RJ45 port, and jumbo frame support up to 9K bytes. With low power consumption under 2.5W and a wide operating temperature range, it delivers stable performance in demanding environments.

Suitable for

• Extending network reach beyond 100 meters using fiber optics
• Connecting SFP-based switches or routers to copper Ethernet devices
• Upgrading legacy networks to gigabit speeds
• Industrial and office environments requiring reliable media conversion

Key specifications

• Conversion Type: SFP to RJ45
• Data Rate: 10/100/1000Mbps (Auto-negotiation)
• Fiber Port: 1x SFP Slot (Hot-pluggable)
• Ethernet Port: 1x RJ45 (Auto MDI/MDIX)
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x
• Duplex Mode: Full/Half-duplex (RJ45)
• Jumbo Frame: Up to 9K Bytes
• LED Indicators: PWR, FX Link/Act, TX Link/Act, FX FDX/COL, TX FDX/COL

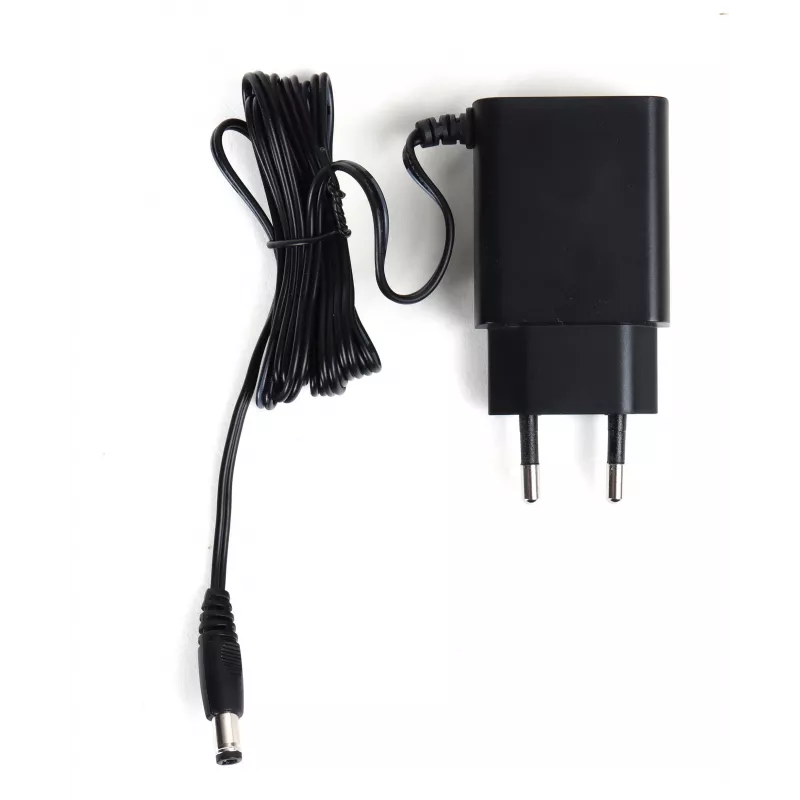

• Power Supply: External DC 5V/1A
• Power Consumption: < 2.5W
• Housing: Metal
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Switching: Store-and-Forward
• Flow Control: IEEE 802.3x (Full-Duplex), Backpressure (Half-Duplex)
• Mounting: Desktop, Wall-mountable

Recommendations

For optimal performance, use with a compatible SFP module (not included). Ensure proper ventilation and avoid exposure to extreme temperatures or moisture. This converter is plug-and-play, requiring no configuration.
