Conversor de mídia Fast Ethernet LevelOne RJ45 para SC, fibra multimodo, 1310 nm, 2 km

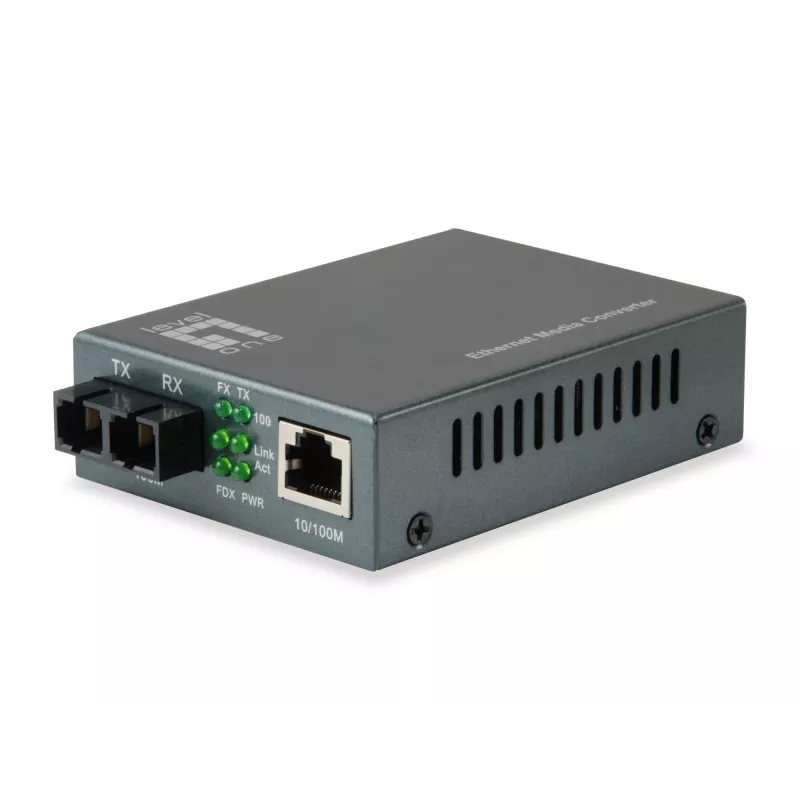

The LevelOne Media Converter RJ45 to SC FVT-1101 converts network signals between copper Ethernet and multimode fiber-optic links. It provides a 10/100Base-TX RJ-45 port with auto-negotiation for 10Base-T and 100Base-TX and a 100Base-FX SC fiber port. In multimode configuration the converter supports fiber runs up to 2 km and can be used as a standalone unit or installed as a slide-in module in the CHV-2000 19” converter chassis.

Advantages

The converter supports both full duplex and half duplex operation, automatic speed sensing and a single-fiber SC interface for straightforward integration into existing infrastructure. Compact design and compatibility with the CHV-2000 chassis allow flexible deployment in distributed or centralized wiring closets. CE certification and simple power requirements (5 V / 1 A) make it suitable for standard network installations.

Suitable for

• Extending Fast Ethernet links over multimode fiber up to 2000 m
• Connecting copper-based switches or routers to fiber backbone
• Deployments requiring a compact standalone converter or slide-in module for a 19” chassis

Key specifications

• Maximum data transfer rate: 100 Mbit/s
• Ethernet LAN (RJ-45) ports: 1 (10/100Base-TX, auto-sensing)
• Fiber ports: 1 (100Base-FX, SC connector, multimode)
• Maximum transfer distance: 2000 m

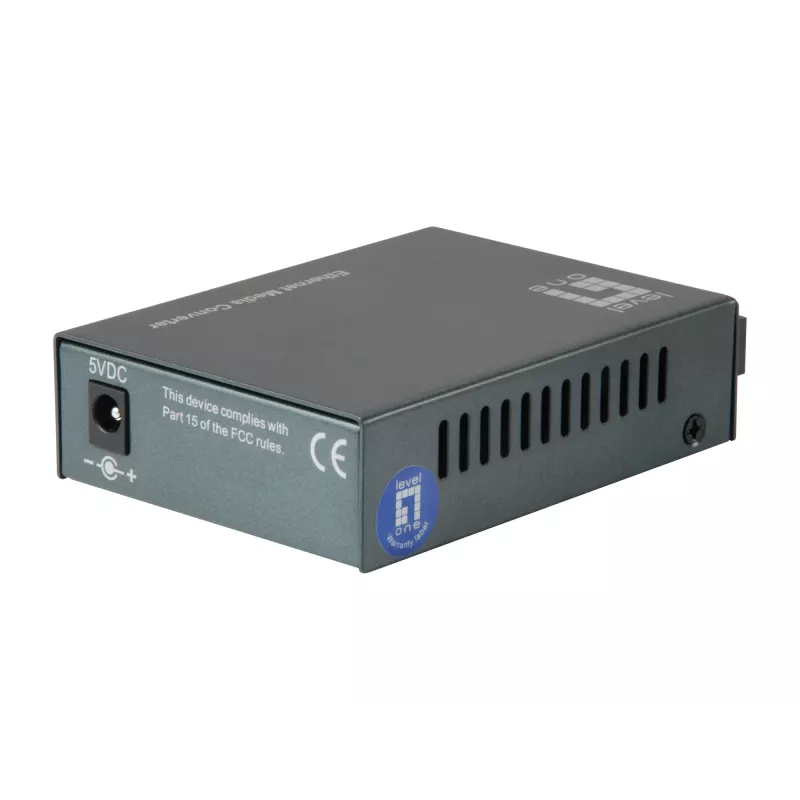

• Power input: 5 V, 1 A
• Product colour: Black
• Certifications: CE

How to use

Connect the RJ-45 port to a switch, router or Ethernet device using Cat5e/6 cable and connect the SC fiber port to the multimode fiber link. Ensure the converter is powered with a compatible 5 V/1 A adapter. If installing multiple units, slide modules into the CHV-2000 chassis and secure according to the chassis manual. The device will automatically negotiate speed and duplex settings with the connected Ethernet equipment.

Recommendations

For reliable operation use multimode fiber rated for the required distance, verify SC connections are clean, and place the converter in a ventilated, dust-free environment. When pairing with other media converters or transceivers, match wavelength and fiber type to avoid link issues.
