GETFORT GF-ANT-360 Antena Omnidirecional 12 dBi 2,4-2,5 GHz Conector Fêmea N Branco

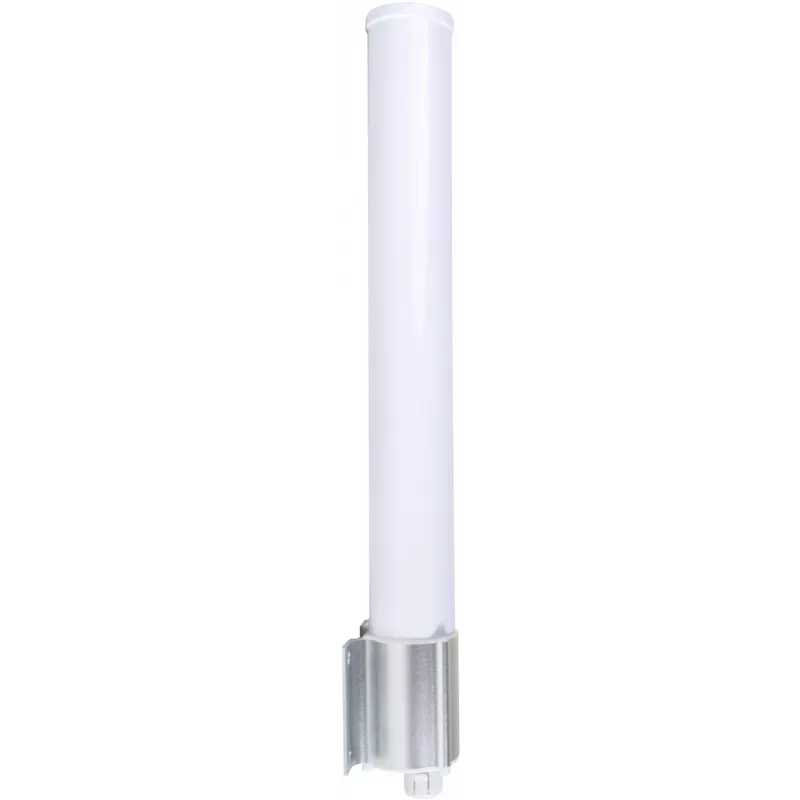

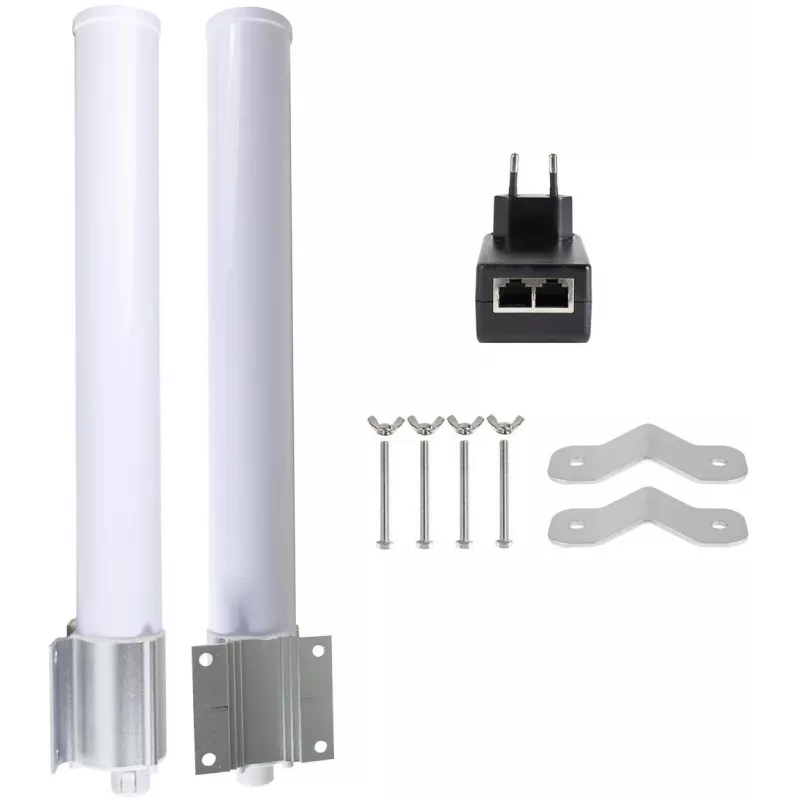

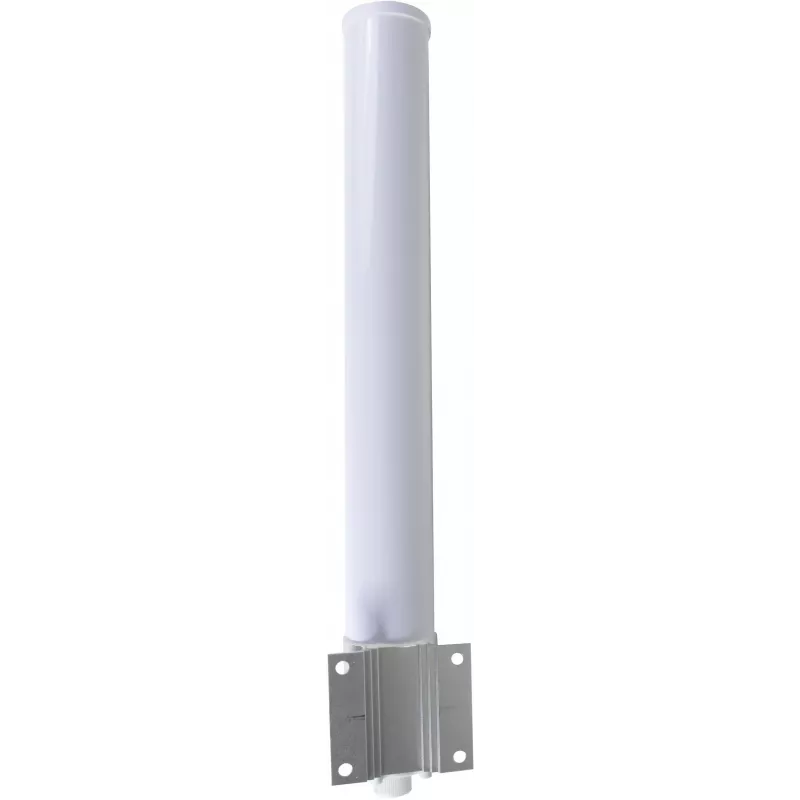

The GETFORT GF-ANT-360 is a high-performance omnidirectional antenna designed for professional Wi-Fi, WLAN, and ISM band applications. With a gain of 12 dBi and a 360° horizontal beamwidth, it provides robust coverage for outdoor wireless networks. The antenna features a durable fiberglass radome and is DC grounded for lightning protection, ensuring reliable operation in harsh environments.

Advantages

This antenna offers exceptional signal strength and coverage, making it ideal for point-to-multipoint deployments. Its omnidirectional pattern eliminates the need for precise alignment, simplifying installation. The included U-bolt pole mount allows for easy attachment to masts or poles, and the N-Female connector ensures compatibility with standard RF cables.

Suitable for

• Outdoor Wi-Fi networks (2.4 GHz)
• WLAN and ISM band applications
• Point-to-multipoint wireless links
• Coverage extension for rural or urban areas

Key specifications

• Antenna Type: Omnidirectional
• Frequency Range: 2.4 - 2.5 GHz
• Gain: 12 dBi
• VSWR: < 1.5
• Polarization: Vertical
• Impedance: 50 Ohm
• Connector: N-Female
• Horizontal Beamwidth: 360°
• Vertical Beamwidth: 8°

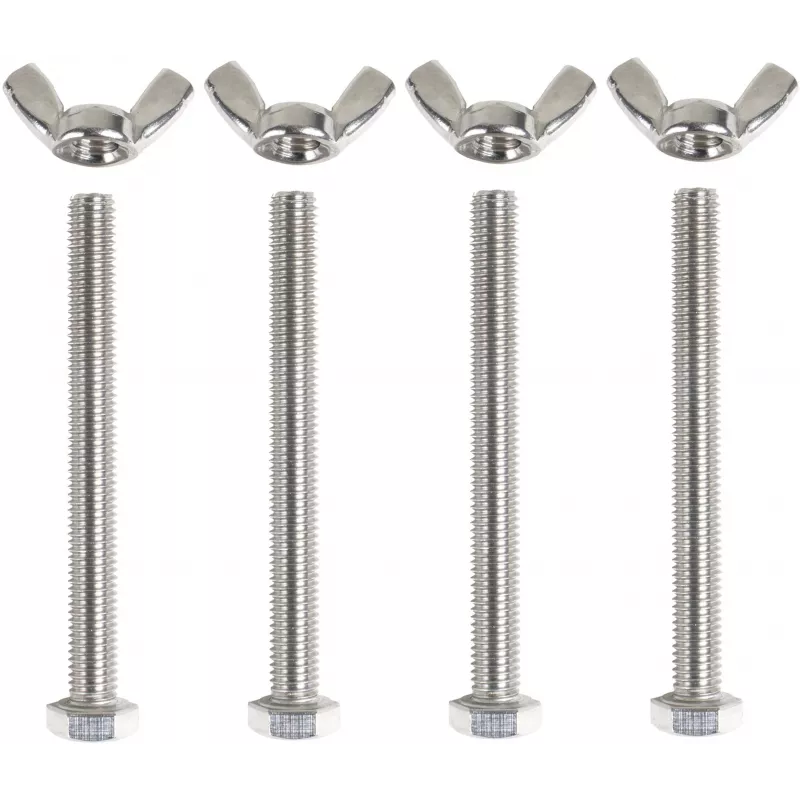

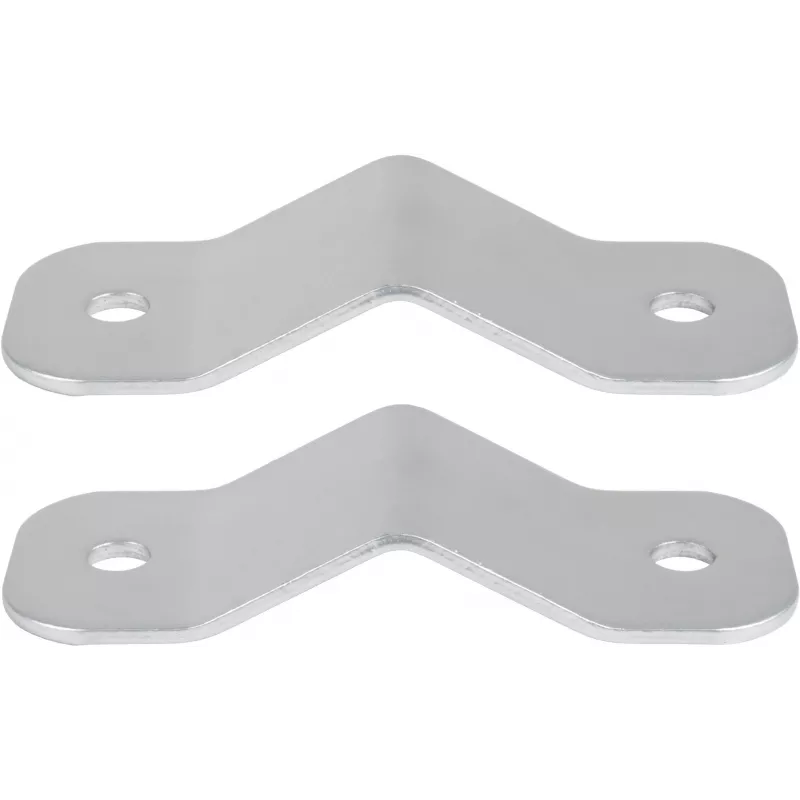

• Mounting: Pole Mount (U-bolt included)
• Radome Material: Fiberglass
• Operating Temperature: -40°C to +70°C
• Survival Wind Speed: 200 km/h
• DC Grounded: Yes
• Color: White

Recommendations

For optimal performance, use with low-loss coaxial cable and ensure proper grounding. The antenna is designed for outdoor use and should be mounted securely to withstand high winds.
