GETFORT GF-FO-PSNW-24SX Caixa de distribuição de fibra ótica, 12 fibras, SC/LC, montagem na parede, cinzento-claro

The GETFORT GF-FO-PSNW-24SX is a high-quality fiber optic distribution box designed for indoor wall-mounted applications. It provides reliable fiber management and termination for up to 12 fibers, supporting both single-mode and multi-mode cables. The box is constructed from powder-coated steel in light grey (RAL 7035) and features 4 PG11 cable glands for easy cable entry. With integrated strain relief and fiber routing, it ensures organized and secure fiber handling.

Advantages

This distribution box offers a compact and durable solution for fiber optic network termination. Its wall-mountable design saves space and allows for easy installation in telecom rooms, data centers, or customer premises. The screw-fastened cover provides secure access, while the compatibility with SC simplex and LC duplex adapters offers flexibility for various connector types. The box can accommodate up to 2 x 12-fiber splice trays, making it suitable for small to medium fiber count applications.

Suitable for

• Indoor fiber optic network termination points
• FTTH (Fiber to the Home) installations
• Telecom rooms and data centers
• Small to medium enterprise networks

Key specifications

• Product Type: Fiber Optic Distribution Box
• Mounting: Wall-mounted
• Fiber Capacity: Up to 12 fibers
• Adapter Compatibility: SC Simplex, LC Duplex
• Number of Adapter Slots: 12
• Material: Powder-coated steel
• Colour: Light Grey (RAL 7035)
• Ingress Protection: IP20

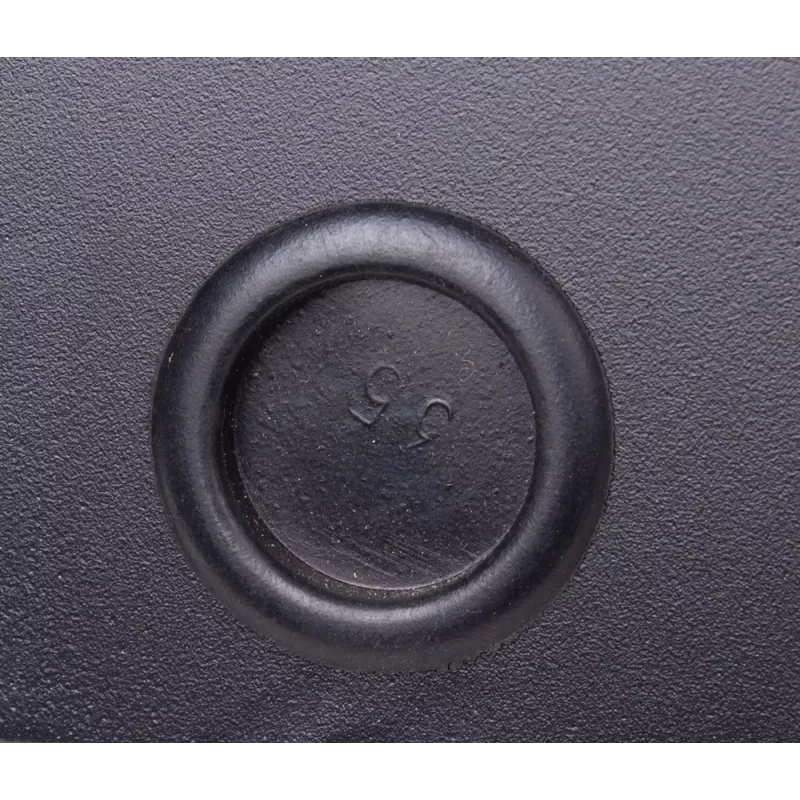

• Cable Entry: 4 x PG11 cable glands

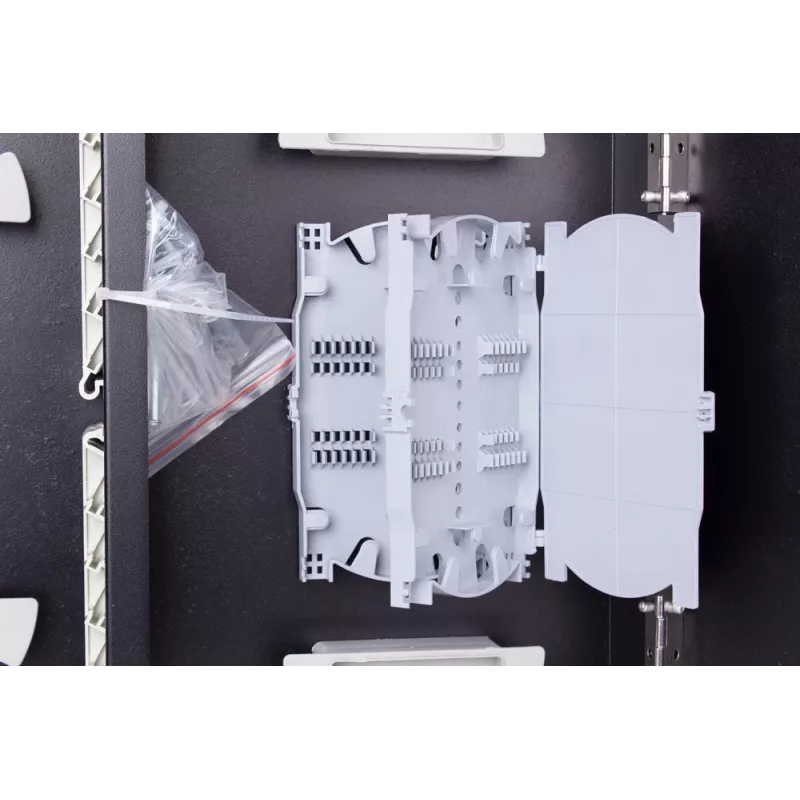

• Splice Tray Capacity: Up to 2 x 12-fiber splice trays
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +80°C
• Relative Humidity: 5% to 95% (non-condensing)
• Cover Type: Screw-fastened
• Fiber Compatibility: Single-mode and Multi-mode

Recommendations

For optimal performance, use with compatible SC or LC connectors and ensure proper cable strain relief. This distribution box is ideal for indoor environments where reliable fiber termination and management are required.
