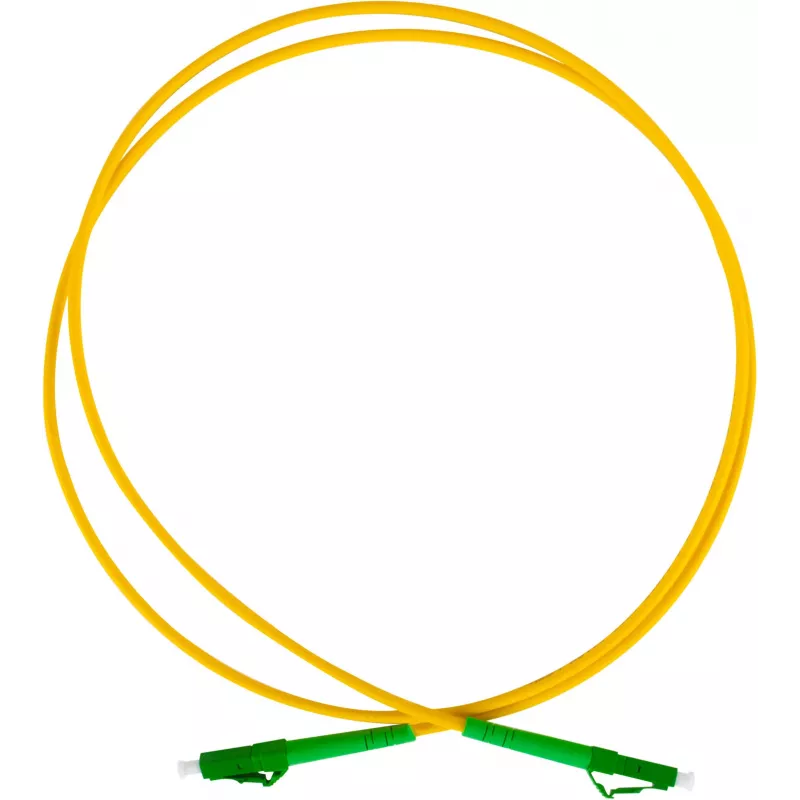

GETFORT GF-LALAS5 cabo de patch monomodo LC/APC para LC/APC simplex 5m

With a return loss of ≥60 dB and insertion loss ≤0.3 dB, this GETFORT single-mode patch cable delivers exceptional signal clarity for demanding fiber optic links. The LC/APC to LC/APC simplex configuration ensures precise angled physical contact connections, ideal for high-density patching in FTTH, CATV, and data center environments.

Overview

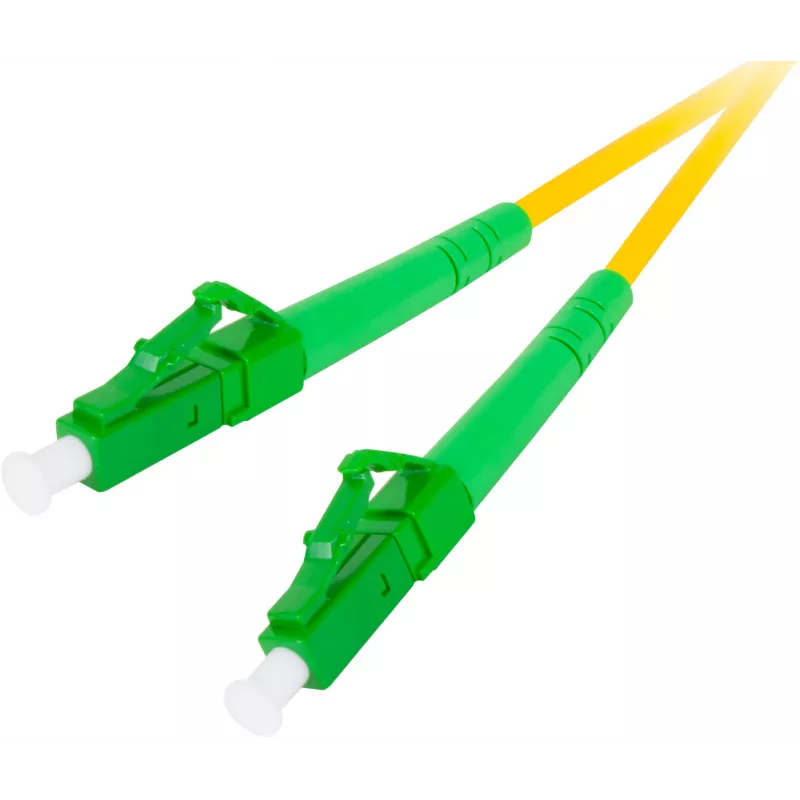

The GETFORT GF-LALAS5 is a 5-meter single-mode fiber optic patch cable terminated with LC/APC connectors on both ends. It features a 9/125 µm OS2 fiber core, a yellow LSZH jacket, and a 2.0 mm diameter for easy routing. The cable is compliant with IEC 61754-20, TIA/EIA-568-C.3, and RoHS standards, ensuring reliable performance and safety.

What stands out

• Angled Physical Contact (APC) polishing minimizes back reflections, achieving return loss ≥60 dB.
• Low insertion loss of ≤0.3 dB preserves signal integrity across the link.
• LSZH jacket emits low smoke and zero halogen, making it safe for enclosed spaces.
• Simplex design with 2.0 mm diameter is flexible and easy to manage in tight spaces.
• Supports wavelengths 1310 nm and 1550 nm for versatile single-mode applications.

Technical details

• Fiber Type: Single-Mode (SM) OS2, 9/125 µm
• Connector Type: LC/APC to LC/APC
• Cable Type: Simplex
• Cable Length: 5 meters
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥60 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 2.0 mm
• Jacket Color: Yellow
• Operating Wavelengths: 1310 nm, 1550 nm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius: 30 mm
• Durability: 500 mating cycles
• Standard Compliance: IEC 61754-20, TIA/EIA-568-C.3, RoHS

Our verdict

The GETFORT GF-LALAS5 is a high-performance, reliable patch cable for professionals who demand low loss and high return loss in single-mode networks. Its LSZH jacket and robust construction make it suitable for both indoor and controlled outdoor environments, while the LC/APC connectors ensure stable, low-reflection connections.
