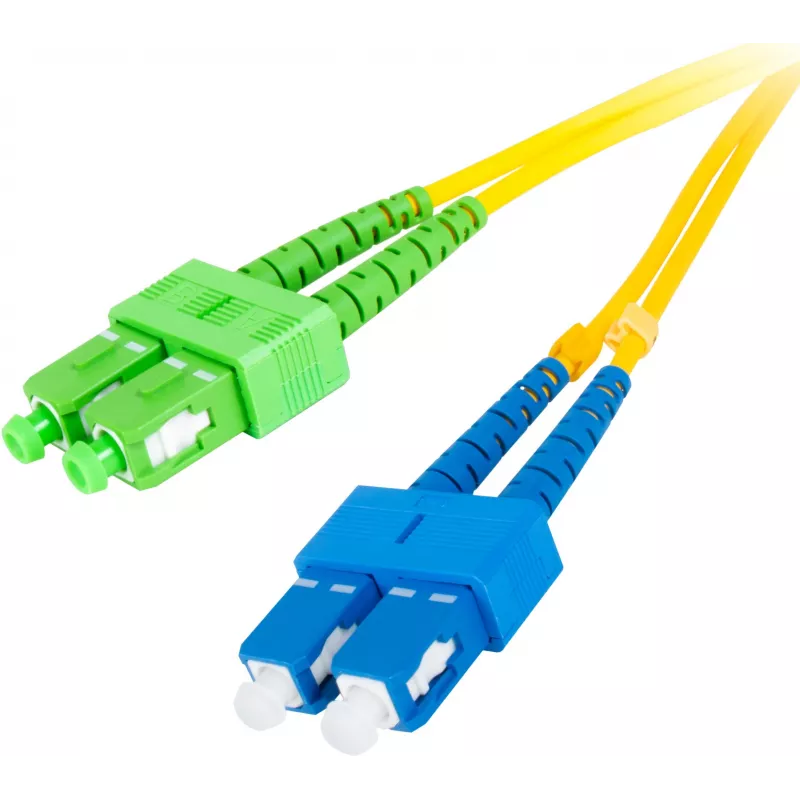

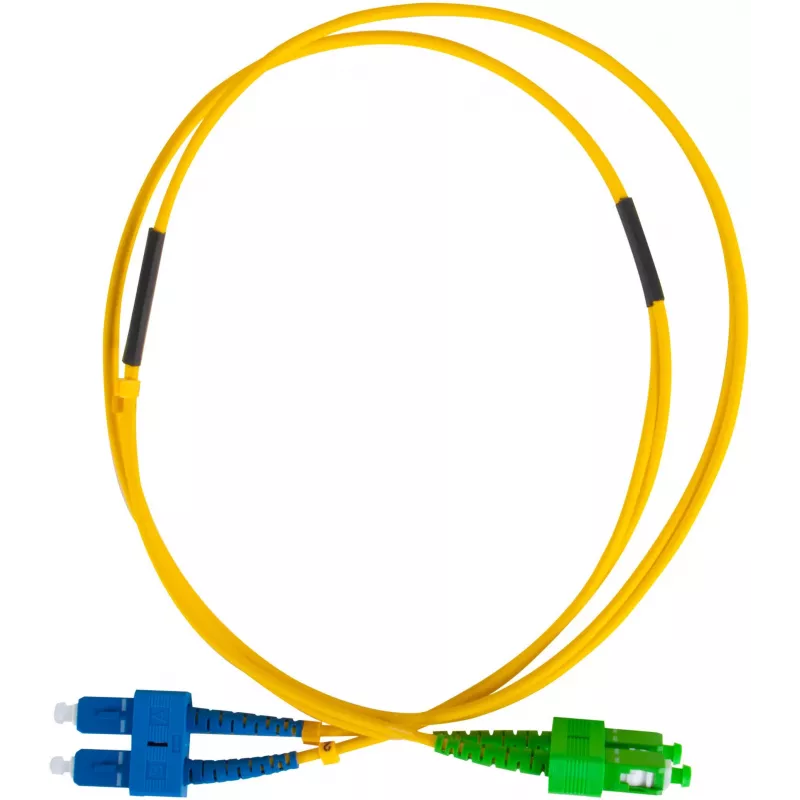

GETFORT GF-SUSAD1 Cabo de fibra ótica monomodo duplex SC/UPC para SC/APC, 1m, LSZH, amarelo

Engineered for bend-insensitive single-mode performance, the GETFORT GF-SUSAD1 patch cord pairs an SC/UPC connector on one end with an SC/APC connector on the other, delivering a reliable 1-meter link for FTTH, CATV, and telecom networks. Unlike standard jumpers, its G.657.A2 fiber tolerates tight routing without signal degradation, while the LSZH jacket keeps installations safe in enclosed spaces.

Highlights

• Duplex single-mode fiber with 9/125 µm core/cladding
• SC/UPC to SC/APC connectors with zirconia ceramic ferrules
• Low insertion loss ≤ 0.3 dB; high return loss (UPC ≥ 50 dB, APC ≥ 60 dB)
• Bend-insensitive G.657.A2 fiber for flexible installation
• LSZH yellow jacket, 2.0 mm duplex cable, 1 m length
• Operating temperature -20°C to +70°C; RoHS and CE compliant

In daily use

This patch cord excels in high-density fiber panels, ONT connections, and test environments where mixed UPC/APC interfaces are common. The crossed A-B polarity ensures proper transmit/receive alignment in duplex links. Its compact 1-meter length reduces slack and clutter, while the bend-insensitive design prevents microbending losses even when routed around corners or through cable managers.

Full specifications

• Brand: GETFORT
• Model: GF-SUSAD1
• MPN: GF-SUSAD1
• EAN: 5908231254115
• Product type: Fiber optic patch cord
• Fiber mode: Single-mode (SM)
• Connector A: SC/UPC
• Connector B: SC/APC
• Cable structure: Duplex
• Cable length: 1 m
• Fiber core diameter: 9 µm
• Cladding diameter: 125 µm
• Fiber standard: G.657.A2 (bend-insensitive)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket colour: Yellow
• Cable diameter: 2x 2.0 mm
• Insertion loss: ≤ 0.3 dB
• Return loss (UPC): ≥ 50 dB
• Return loss (APC): ≥ 60 dB
• Ferrule material: Zirconia ceramic
• Polarity: A-B (crossed)
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Compliance: RoHS, CE

Final note

For technicians and integrators needing a dependable mixed-connector single-mode link, the GETFORT GF-SUSAD1 offers precision polishing, robust construction, and safety-rated materials in a convenient 1-meter length.
