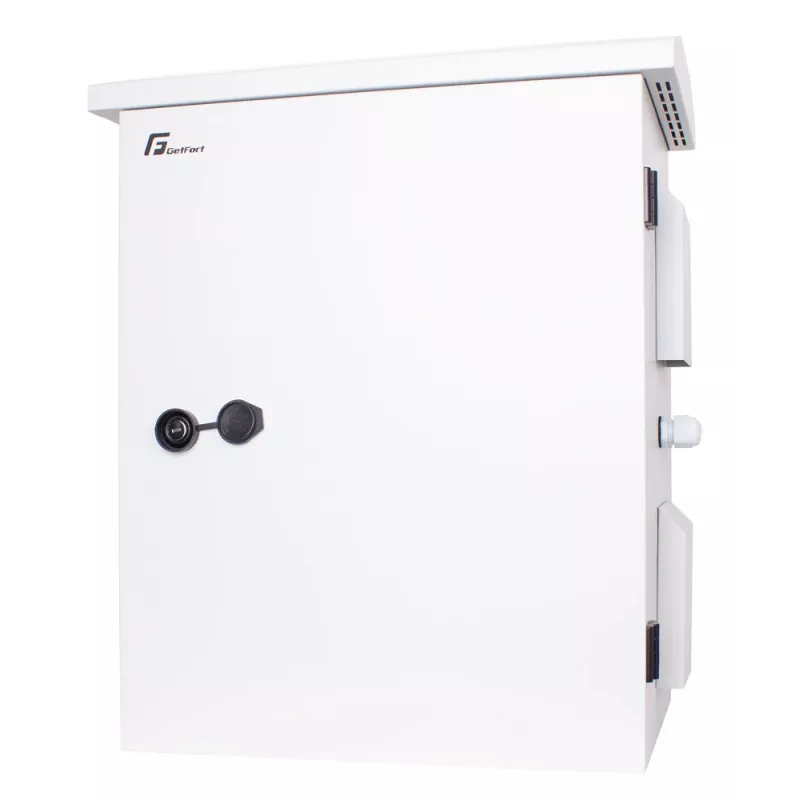

Getfort HGF-40/35/60 Caixa de mastro hermética 400x350x600mm IP65

The Getfort HGF-40/35/60 is a robust hermetic pole-mounted enclosure crafted from galvanised steel with a powder-coated finish. Designed for demanding outdoor environments, this IP65-rated housing protects sensitive electrical and electronic equipment from dust, water jets, and corrosion.

Advantages

The enclosure offers full hermetic protection thanks to its polyurethane gasket and seamless welded construction. The galvanised steel body, finished in RAL 7035 light grey, provides excellent durability against harsh weather, UV radiation, and mechanical impact. The single hinged door opens 120° for easy access and features a 2-point locking system with a key to prevent unauthorised entry. Integrated grounding studs on both door and body ensure safe earthing. Pole mounting brackets are supplied, enabling secure installation on poles, masts, or walls. The removable bottom gland plate allows flexible cable entry while maintaining the IP rating when fitted with appropriate glands.

Suitable for

• Telecommunications equipment
• Industrial control systems
• Outdoor monitoring and surveillance
• Distribution and junction boxes in harsh environments

Key specifications

• External dimensions: 400 x 350 x 600 mm (W x D x H)
• Protection rating: IP65 (dust-tight and protected against water jets)
• Material: Galvanised steel, powder coated
• Colour: RAL 7035 (light grey)
• Door: Single hinged door with 2-point key lock
• Gasket: Polyurethane (PU) sealing gasket
• Material thickness: 1.0 mm

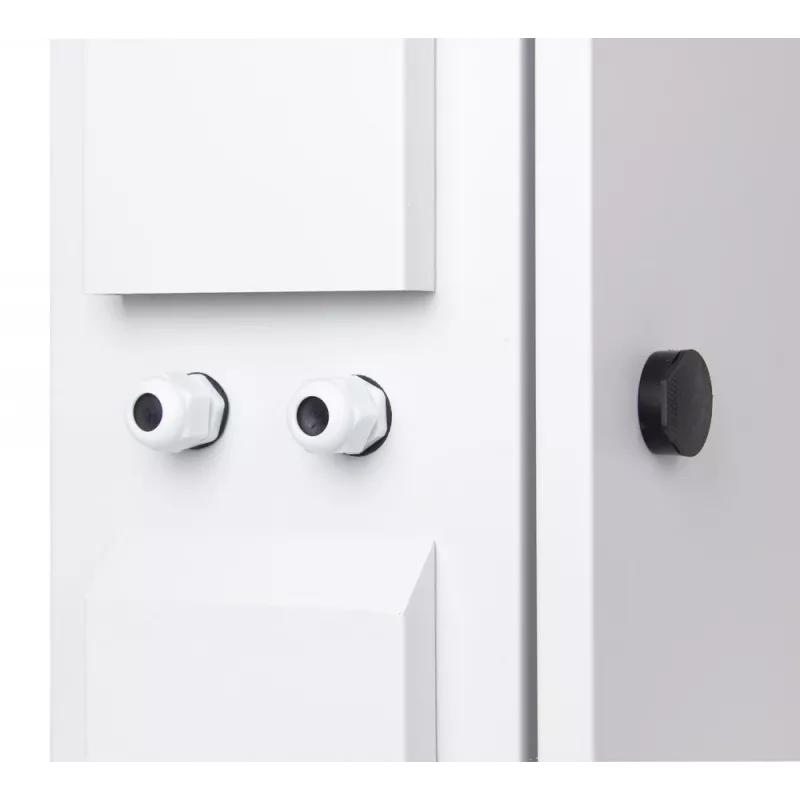

• Cable entry: Removable bottom gland plate
• Mounting: Pole mounting brackets (included)
• Door opening angle: 120°
• Standards compliance: EN 60529
• UV and corrosion resistant

Recommendations

When installing the enclosure, ensure proper sealing of all cable entries using appropriate IP65-rated glands. The enclosure is designed for outdoor use but should be mounted with the door facing downwards where possible to reduce water accumulation on the gasket. Periodic inspection of the gasket and locking mechanism is recommended to maintain long-term protection.
