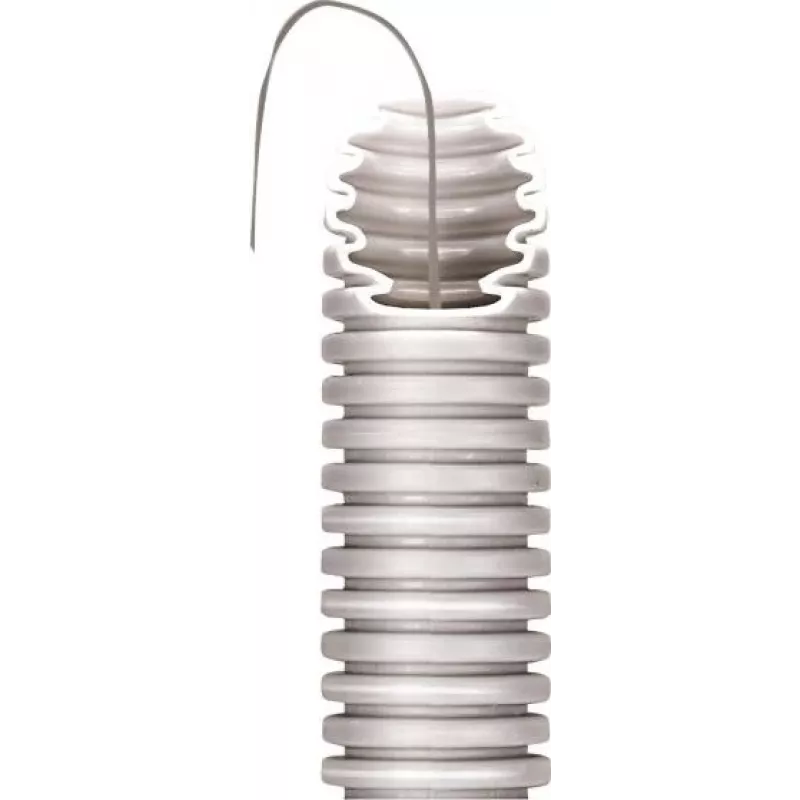

Tubo corrugado flexível GEWISS DX20140R ICTA/40F, 40mm, Cinzento, 25m com fio-guia

Routing electrical cables through walls, floors, or conduits often means fighting stiff pipes or dealing with separate pull wires. The GEWISS DX20140R solves this by combining a flexible corrugated conduit with a pre-installed pull wire, so cable installation becomes faster and less frustrating.

Who is it for

Electricians and installers who need a reliable, flexible conduit for protecting and routing cables in residential, commercial, or light industrial settings. It suits both new installations and retrofits where bends and tight spaces are common.

Main features

• Flexible corrugated design for easy bending and routing
• Pre-installed pull wire for quick cable drawing
• Grey polypropylene construction, halogen-free
• Nominal diameter 40 mm, length 25 m
• Compression resistance class 3 (750 N)
• Impact resistance class 4 (6 J)

Specifications

• Product type: Flexible corrugated conduit pipe
• Series: GEWISS ICTA 3422 DX
• Nominal diameter: 40 mm
• Length: 25 m
• Colour: Grey
• Material: Polypropylene (PP)
• Feature: Pre-installed pull wire
• Standard compliance: EN 61386-22
• Compression resistance: Class 3 (750 N)
• Impact resistance: Class 4 (6 J)
• Minimum operating temperature: -5 °C
• Maximum operating temperature: +90 °C
• Flame propagation: Non-flame propagating
• Halogen-free: Yes
• Application: Electrical installations, cable protection
• Flexibility: Flexible
• Inner diameter (approx.): 32.5 mm
• Outer diameter (approx.): 40.5 mm

Tips

When pulling multiple cables, use a suitable lubricant to reduce friction and protect the cable insulation. The pre-installed pull wire can be replaced if damaged, but ensure the replacement is securely attached before pulling.
