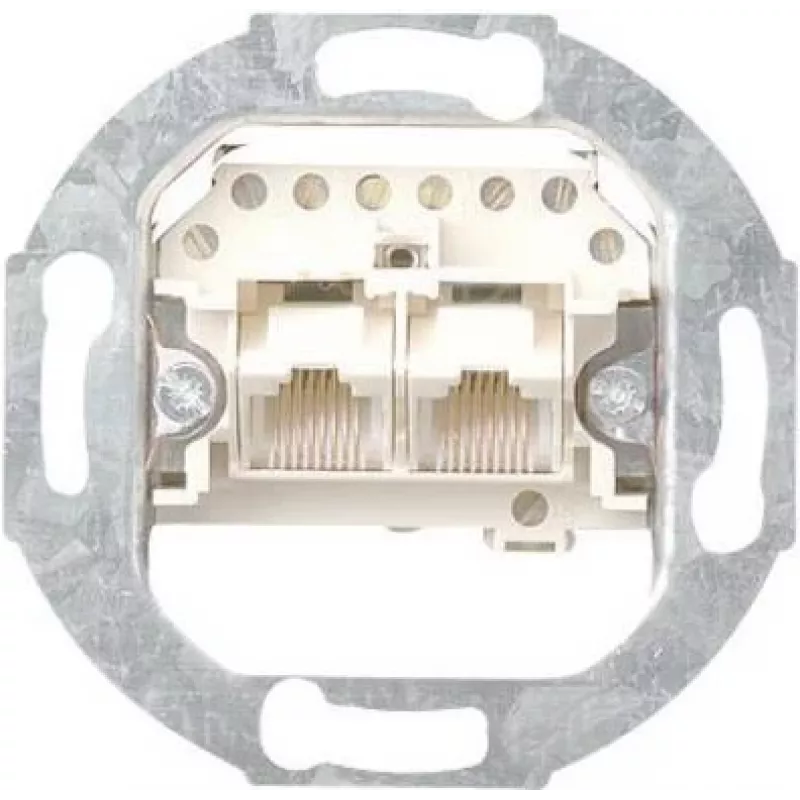

Gira anel de suporte com placa central para tomadas UAE/IAE/ISDN, System 55, E2, Event, Esprit, ClassiX, F100, 1 tomada, encastrar, abertura 50x50 mm, termoplástico sem halogéneos 018700

When installing data or telecommunication sockets in Gira switch ranges, you need a reliable support ring that holds the module securely and fits the design frame perfectly. This support ring with central plate is the base for UAE, IAE, and ISDN sockets in Gira System 55, E2, Event, Esprit, ClassiX, and F100 design lines. It provides a stable, flush-mounted foundation for a single data module, with a central opening of 50 x 50 mm to accept standard modules like RJ45 connectors. Made from halogen-free, shatterproof thermoplastic, it ensures long-term durability in indoor installations.

Who is it for

Electricians and installers working with Gira switch ranges who need a compatible support ring for data and telecommunication sockets. It is suitable for both new installations and retrofits where a clean, integrated look is required.

Main features

• Compatible with Gira System 55, E2, Event, Esprit, ClassiX, and F100 design lines
• Supports UAE, IAE, and ISDN socket modules
• 1-gang design for single data or telecommunication port
• Central plate opening of 50 x 50 mm for standard modules
• Flush-mounted installation
• Halogen-free, shatterproof thermoplastic material
• Operating temperature range: -5 to +45 °C
• Storage temperature range: -25 to +70 °C
• Relative humidity tolerance: 5 to 95 % (non-condensing)
• Installation depth: approx. 32 mm

Specifications

• Product type: Support ring with central plate
• Socket type compatibility: UAE, IAE, ISDN
• Design line compatibility: System 55, E2, Event, Esprit, ClassiX, F100
• Mounting type: Flush-mounted
• Material: Thermoplastic (shatterproof)
• Central plate opening: 50 x 50 mm
• Number of ports/modules: 1-gang
• Halogen-free: Yes
• Operating temperature: -5 to +45 °C
• Storage temperature: -25 to +70 °C
• Relative humidity: 5 to 95 % (non-condensing)
• Installation depth: Approx. 32 mm

Tips

This support ring is designed to be covered by a design plate from the matching Gira range. Ensure the module you install fits the 50 x 50 mm opening. For outdoor or damp locations, use an appropriate sealed enclosure as the ring itself has no IP rating.
