Fixação adesiva para abraçadeiras HellermannTyton QM20APT-A, 20 x 20 mm, branco, PA66, entrada de 4 vias, 1000 unid. 151-02971

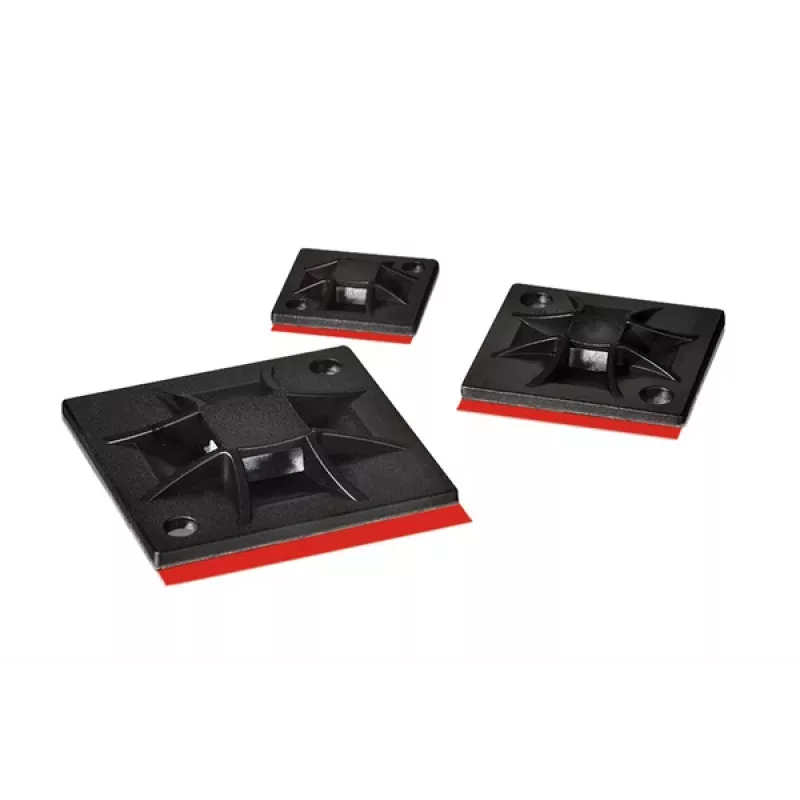

The QM20APT-A stands out among adhesive cable tie mounts with its four-way cross-shaped entry, allowing cable ties to be routed in multiple directions from a single compact base. This design simplifies cable management in tight spaces where flexibility is essential.

Highlights

• Four-way cable tie entry for versatile routing
• High-tack synthetic rubber adhesive for secure bonding
• Made of halogen-free polyamide 6.6 (PA66)
• Compact 20 x 20 mm footprint, 4.5 mm height
• Supports cable ties up to 4.8 mm width
• White colour (RAL 9010) blends with light surfaces
• Supplied in bulk pack of 1000 pieces

In daily use

The mount adheres to high surface energy plastics, metal, and painted surfaces, making it suitable for indoor cable bundling and routing. Its low profile keeps installations neat, and the four entries accommodate multiple tie orientations, reducing the need for additional mounts.

Full specifications

• Product type: Cable tie mount
• Mounting type: Adhesive
• Base dimensions: 20 x 20 mm
• Height: 4.5 mm
• Material: Polyamide 6.6 (PA66)
• Colour: White (RAL 9010)
• Adhesive type: Synthetic rubber adhesive
• Max. cable tie width: 4.8 mm
• Operating temperature: -40 °C to +85 °C
• Flammability rating: UL94 V2
• Halogen-free: Yes
• UV resistant: No
• Indoor/outdoor use: Indoor
• Number of cable tie entries: 4-way (cross-shaped)
• Pack quantity: 1000 pieces
• Series: Q-Mount

Final note

The QM20APT-A is a practical choice for professional cable management where a reliable adhesive mount and multi-directional tie routing are required.
