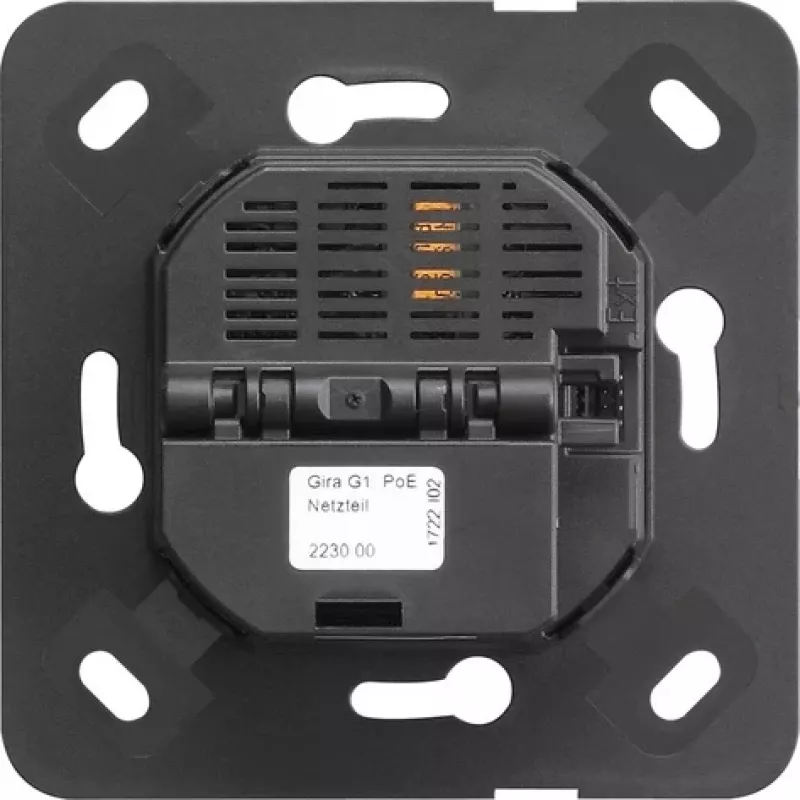

Gira fonte de alimentação PoE G1, 15,4 W, calha DIN, 100-240 V AC para 48-57 V DC, IEEE 802.3af 223000

Powering the Gira G1 client can be a challenge when a PoE switch is not available. This power supply injects power over the Ethernet cable, providing a stable 48-57 V DC output compliant with IEEE 802.3af, eliminating the need for a separate power outlet near the device.

Who is it for

Installers and integrators setting up Gira G1 touch panels in locations where a PoE switch is not present, or where a dedicated power source is preferred for reliability.

Main features

• Converts 100-240 V AC to 48-57 V DC PoE (IEEE 802.3af)
• Maximum output power 15.4 W, suitable for Gira G1
• DIN rail mounting (2 modules) for easy integration into electrical cabinets
• Input via screw terminals, output via RJ45
• High efficiency (>80%) and low standby consumption (<0.3 W)
• Operating temperature range -5 °C to +45 °C

Specifications

• Input voltage: 100-240 V AC
• Input frequency: 50/60 Hz
• Output voltage: 48-57 V DC
• Output power: max. 15.4 W
• PoE standard: IEEE 802.3af (Class 0/1/2/3)
• Number of PoE ports: 1
• Mounting: DIN rail (2 TE)
• Input connection: screw terminals
• Output connection: RJ45
• Protection class: IP20
• Operating temperature: -5 °C to +45 °C
• Standby power consumption: <0.3 W
• Efficiency: >80%
• Housing material: plastic

Tips

Ensure the DIN rail location provides adequate ventilation and is protected from moisture. The power supply is designed for indoor use only.
