gira mecanismo de interruptor de tecla 315600 – mecanismo de tecla comutador unipolar

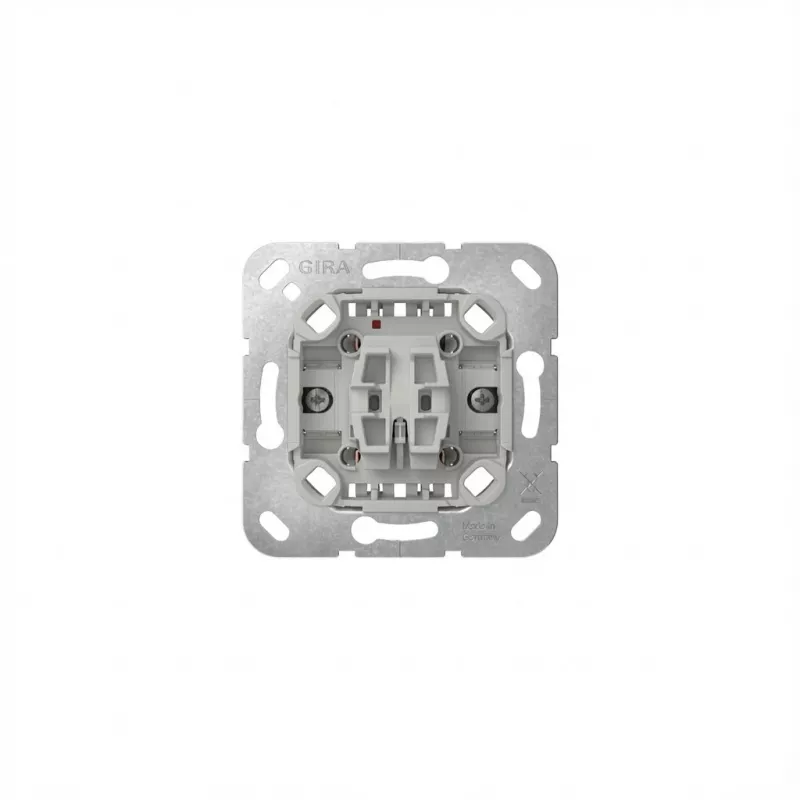

The gira rocker switch insert 315600 is a modular single-pole changeover rocker module designed for installation in compatible flush-mounted frames and switch ranges. It functions as a single-pole changeover (Wechsler) actuator that enables switching between two circuit outputs from a single input. The insert is intended for use in residential and commercial electrical installations where a compact, replaceable rocker insert is required and where standardised mounting into modular frames is preferred.

Advantages

The rocker insert offers a compact form factor that fits standard modular frames and can be replaced independently of the frame or cover. Its single-pole changeover design provides reliable electrical switching between two outputs while minimising space usage in a switch system. The module is suitable for series installation with other modular components and supports straightforward wiring and maintenance in typical wall box setups.

Suitable for

Key specifications

How to use

Install the rocker switch insert into a compatible flush-mounted modular frame following local electrical regulations and ensuring power is disconnected before work begins. Connect the incoming live conductor and the two switched outputs to the designated terminals according to the wiring diagram provided with the switch range. After wiring, secure the insert in the frame and attach the cover or rocker cap. Verify correct operation by restoring power and testing the switching between outputs.

Recommendations

Use only with compatible modular frames and cover plates from the same switch system. Ensure connections are tightened to the specified torque and that conductor cross-sections match the recommendations for the installation. For safety and compliance, have installation or replacement performed by a qualified electrician and follow local electrical codes.
