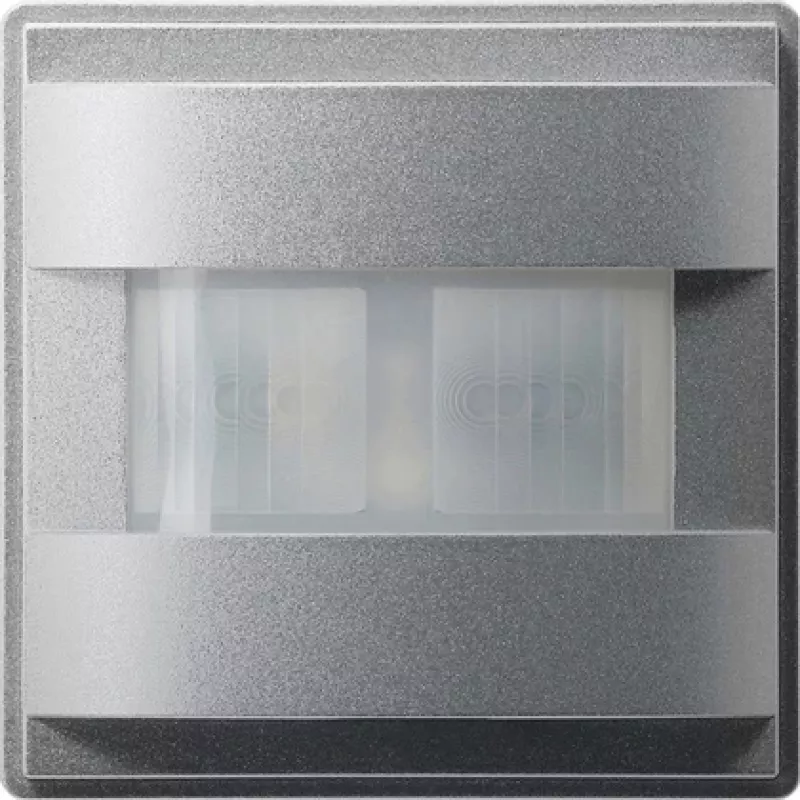

Gira S3000 Módulo de detetor de movimento 1,10 m Standard, TX_44, alumínio 537365

With a 180° detection angle and a tangential range of up to 12 m, the Gira S3000 motion detector attachment delivers precise, automatic lighting control for flush-mounted installations.

Overview

The Gira S3000 motion detector attachment (model 537365) is a passive infrared (PIR) sensor designed for use with the Gira TX_44 design line. It is intended for flush-mounted installation in combination with a suitable Gira S3000 insert and a TX_44 frame. The unit features an aluminium finish and is recommended for mounting at a height of 1.10 m.

What stands out

• Wide 180° detection angle with tangential range up to 12 m and radial range up to 8 m
• Adjustable brightness threshold from approximately 1 to 1000 lux
• Adjustable time delay from approximately 10 seconds to 30 minutes
• Compatible with Gira S3000 switching inserts (relay, dimmer, secondary unit)
• Aluminium finish for TX_44 frames

Technical details

• Sensor type: Passive Infrared (PIR)
• Series: Gira S3000
• Design line: Gira TX_44
• Installation type: Flush-mounted
• Recommended mounting height: 1.10 m
• Detection angle: 180°
• Detection range tangential: approx. 12 m
• Detection range radial: approx. 8 m
• Brightness threshold: adjustable, approx. 1 to 1000 Lux
• Time delay: adjustable, approx. 10 seconds to 30 minutes
• Material: Thermoplastic (PC) / Aluminium
• Colour: Aluminium
• Operating temperature: -20 °C to +45 °C

Our verdict

A reliable motion sensor for Gira S3000 systems, offering flexible settings and a sleek aluminium look for TX_44 installations.
