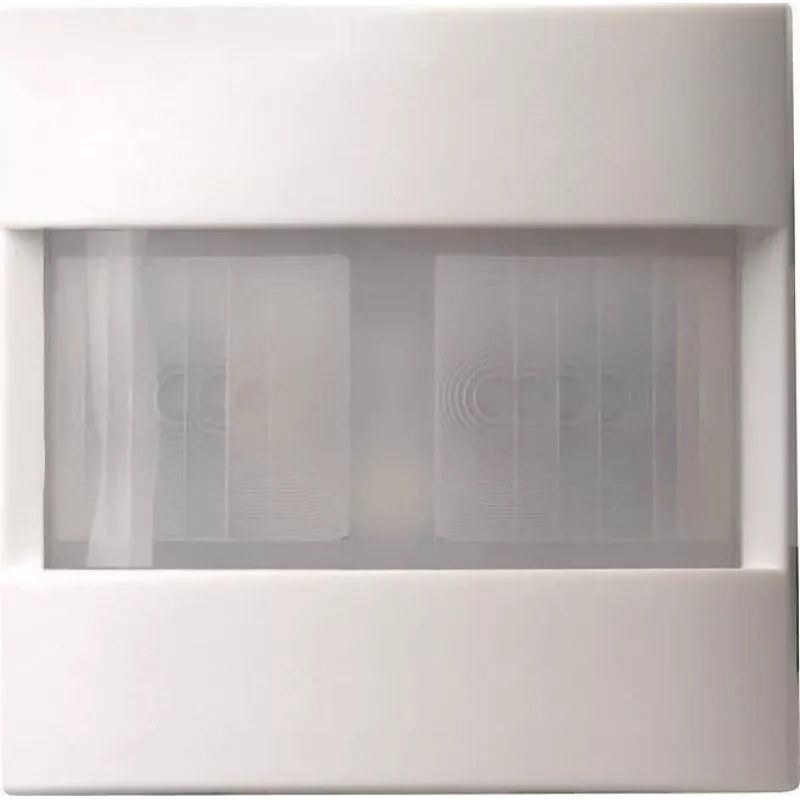

Gira S3000 Módulo detetor de movimento, System 55, branco puro mate 537327

The Gira S3000 Motion Detector Insert brings precise, energy-saving automation to flush-mounted installations. Unlike basic motion sensors, it offers adjustable brightness and time settings, making it suitable for both indoor and covered outdoor areas. Its compact design fits seamlessly into the Gira System 55 range and compatible design lines.

Highlights

• Passive infrared sensor with 180° detection angle
• Tangential range up to 12 m, radial range up to 6 m
• Brightness threshold adjustable from 1 to 1000 lux or infinite
• Time delay adjustable from 10 seconds to 30 minutes
• Supports LED, halogen, and ohmic loads

In daily use

Mount the detector at a height of 1.10 m for optimal coverage. It automatically switches lighting on when movement is detected and ambient light falls below the set threshold. After the last detected movement, the light remains on for the configured delay, then switches off. The pure white matt finish blends discreetly into modern interiors.

Full specifications

• Operating voltage: 230 V AC, 50/60 Hz
• Maximum switching capacity: 2300 W (ohmic), 400 W (LED), 2300 W (halogen HV)
• Connection type: 3-wire (L, N, switched L)
• Protection class: IP20
• Operating temperature: -15 °C to +45 °C
• Housing material: thermoplastic
• Mounting type: flush-mounted

Final note

Designed for the Gira System 55, this motion detector insert offers reliable automation with flexible settings for a wide range of lighting applications.
