Gira System 3000 módulo horário de controlo de estore com Bluetooth, encastrar, 230 V, 6 A 536727

The Gira System 3000 blind control timer module combines a weekly time switch with Bluetooth connectivity, allowing precise scheduling of blinds and shutters directly from a smartphone. Unlike basic timers, it offers astro and random functions for automated sun protection and presence simulation, plus manual override via buttons on the device.

Highlights

• Bluetooth Low Energy for app-based programming and control
• Integrated weekly and daily timer with astro function
• Random function simulates presence for added security

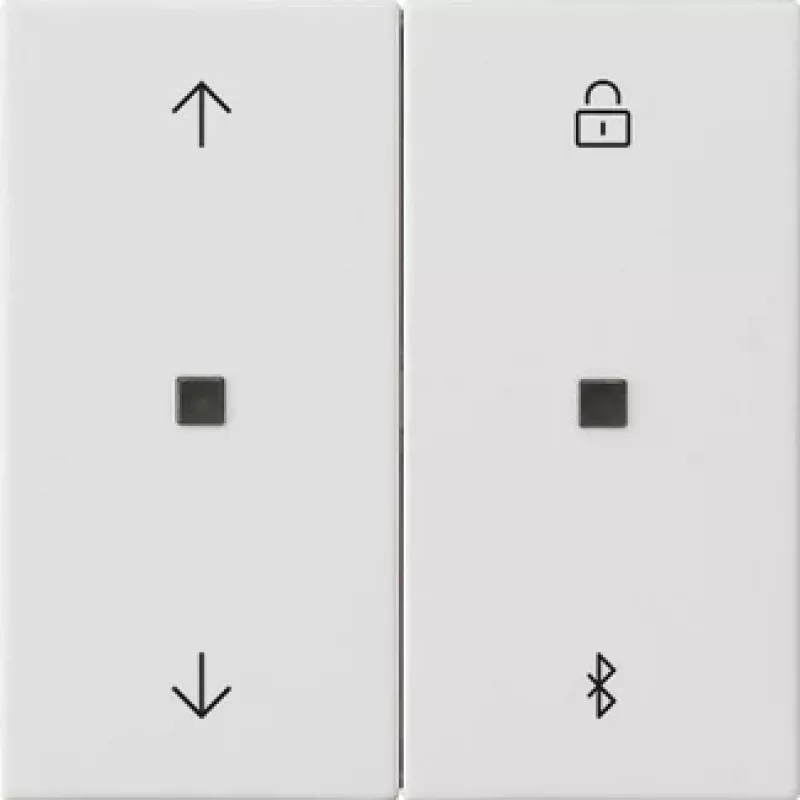

• Manual operation via buttons on the module
• Memory function retains settings after power failure

In daily use

Set schedules once in the Gira System 3000 app and the module executes them reliably, even without a constant connection. The twilight function can close blinds automatically at dusk, while the block function prevents unintended operation. Flush-mounted installation fits standard wall boxes and works with Gira System 3000 cover frames.

Full specifications

• Operating voltage: 230 V AC, 50/60 Hz
• Switching current: 6 A (inductive load for motors)
• Connection: 3-wire (L, N, UP, DOWN)
• Mounting type: Flush-mounted
• Standby power consumption: < 0.5 W
• Operating temperature: -5 °C to +45 °C
• Protection class: IP20 (when installed)
• Connectivity: Bluetooth Low Energy

Final note

Compatible with Gira System 3000 cover frames and rocker switches, this module is a versatile addition to any smart home setup.
