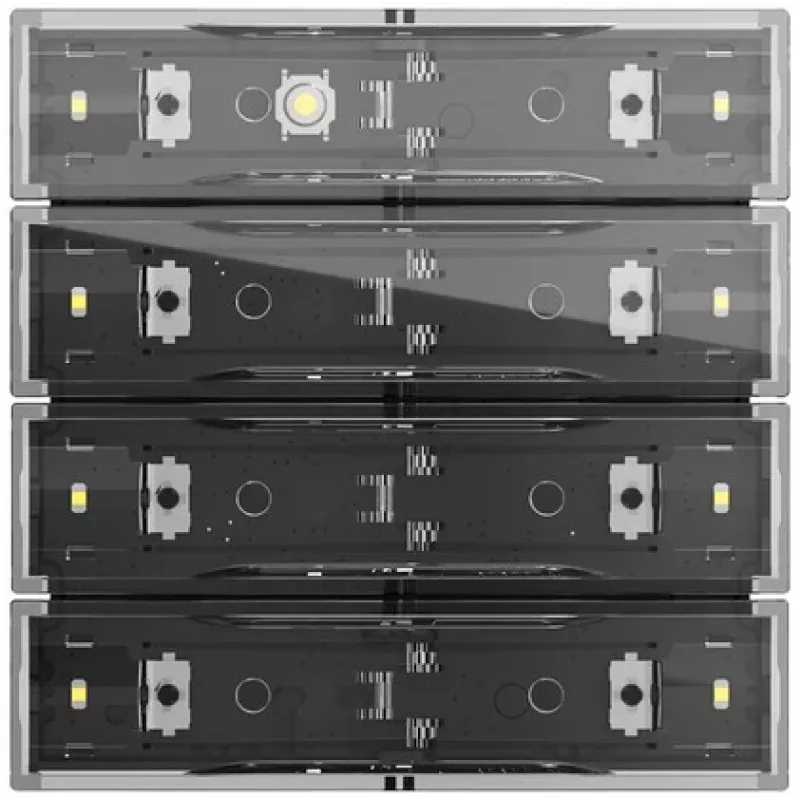

Gira Tastsens.4.70 Standard 4f KNX 531400 - Sensor tátil KNX 4 módulos, branco puro brilhante

KNX pushbutton sensor with 4 independent functions, providing flexible control of switching, dimming, blinds, scenes, and temperature. The integrated room temperature controller and backlit labeling field make it a versatile component for intelligent building automation.

Advantages

Four configurable channels allow multiple functions to be controlled from a single device. The integrated temperature sensor enables room temperature control directly from the sensor. LED indicators provide clear status feedback, and the backlit labeling field ensures readability in low light.

Suitable for

• KNX installations in residential and commercial buildings
• Control of lighting, blinds, and HVAC from a central point
• Integration with Gira switch ranges: Standard 55, E2, Event, Esprit

Key specifications

• System protocol: KNX
• Number of functions: 4-fold
• Design line: Standard 4.70
• Mounting type: Flush-mounted
• Color: Pure white glossy
• Material: Thermoplastic, shatterproof
• Integrated functions: Switching, dimming, blind control, value transmitter, scene recall, room temperature control
• LED indicators: 4x red (status), 4x green (orientation/status)
• Integrated sensor: Temperature sensor
• Bus connection: Via bus terminal
• Power supply: Via KNX bus
• Protection class: IP20
• Operating temperature: 0 °C to +45 °C
• Programming software: ETS
• Labeling field: Yes, with backlight
• Operation mode: Single-surface or rocker function
• Integrated controller: Room temperature controller (RTC)

Recommendations

For complex KNX projects requiring multi-function control and temperature regulation, this sensor offers a compact solution. Ensure compatibility with the chosen Gira cover frame.
