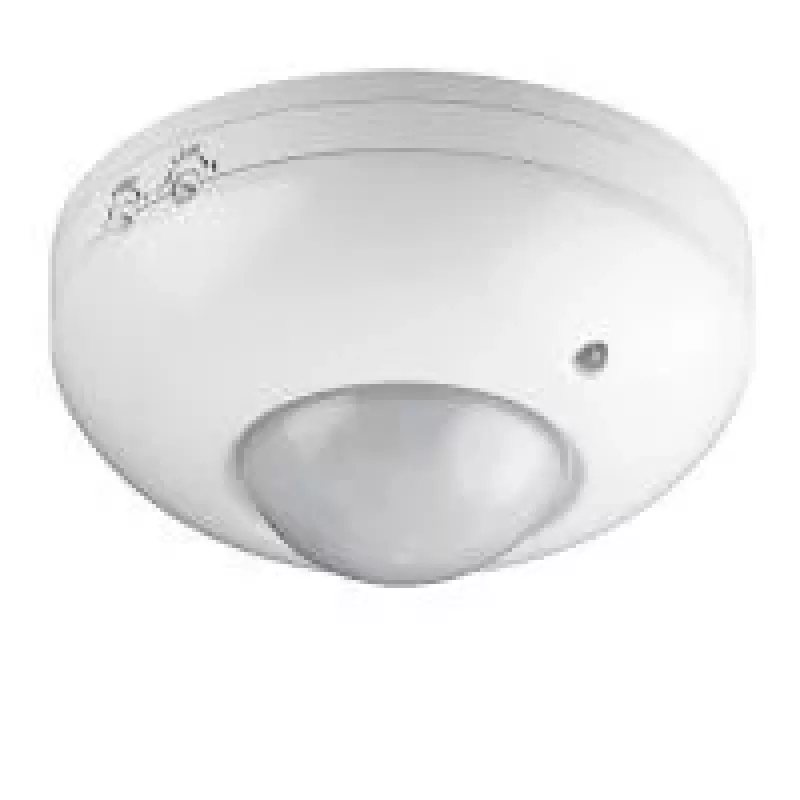

Goobay detetor de movimento por infravermelhos (PIR), cobertura 360°, alcance 6 m, montagem em teto, altura de montagem 2,2-4 m, 230 V AC, IP20 para interiores, branco (95172)

The GOOBAY PIR Motion Sensor 95172 is a reliable and energy-efficient passive infrared sensor designed for automatic lighting control in indoor and outdoor areas. With a wide 180° detection angle and a maximum range of 12 meters, it ensures comprehensive coverage for corridors, gardens, driveways, and entryways. The sensor is surface-mounted on walls and supports an installation height of 0.5 to 3.5 meters, making it versatile for various settings.

Advantages

This motion sensor offers adjustable time delay (10 seconds to 7 minutes) and light sensitivity (3 to 2000 lux), allowing you to customize operation based on ambient light and personal preference. Its IP44 rating provides protection against splashing water, making it suitable for covered outdoor use. The sensor supports both incandescent loads up to 1200 W and LED/fluorescent loads up to 300 W, ensuring compatibility with modern lighting. With a standby power consumption of only 0.5 W, it contributes to energy savings.

Suitable for

• Automatic lighting control in hallways, staircases, and garages
• Security lighting for driveways, gardens, and entrances
• Energy-efficient automation in commercial and residential buildings

Key specifications

• Sensor Technology: PIR (Passive Infrared)
• Detection Angle: 180°
• Detection Range: Max. 12 m
• Mounting Type: Surface-mounted (Wall)
• Recommended Installation Height: 0.5 - 3.5 m
• Operating Voltage: 220-240 V AC, 50/60 Hz
• Max. Incandescent Load: 1200 W
• Max. LED/Fluorescent Load: 300 W
• Time Delay Adjustment: 10 s - 7 min
• Light Sensitivity Adjustment: 3 - 2000 lux
• IP Rating: IP44
• Colour: White
• Material: PC (Polycarbonate)
• Standby Power Consumption: 0.5 W
• Operating Temperature: -20 °C to +40 °C
• Operating Humidity: <93% RH
• Certifications: CE, RoHS

Recommendations

For optimal performance, install the sensor at a height of 2-3 meters and avoid placing it near heat sources or air conditioning vents. Ensure the detection area is free from obstructions. This sensor is ideal for replacing traditional switches with automated lighting control.
