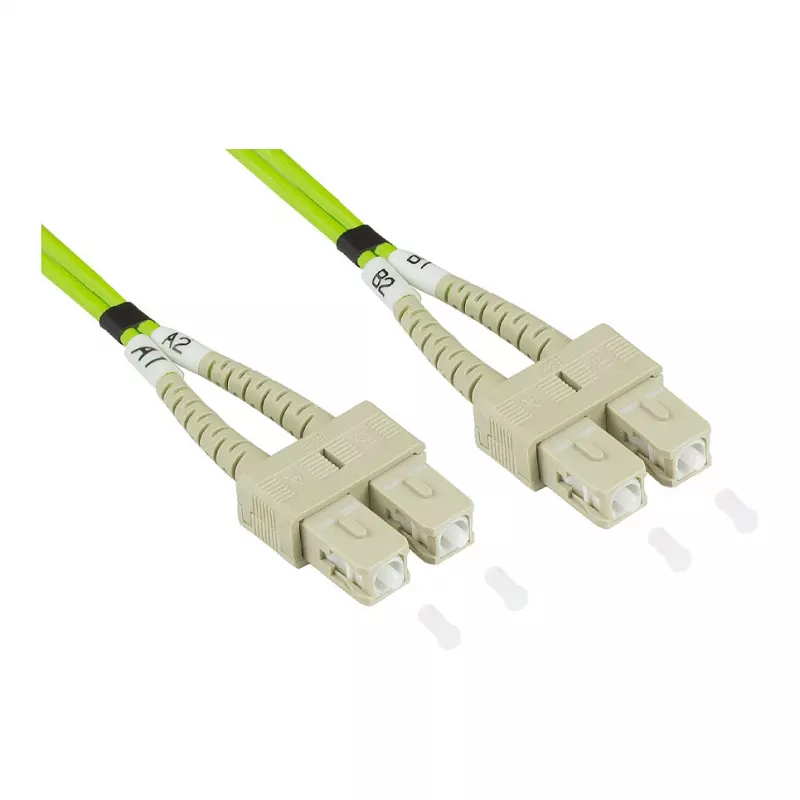

GoodConnections Alcasa LW-815SC5 cabo de patch de fibra ótica 15 m LSZH OM5 duplex SC/SC verde

In modern data centres where 40/100GbE and SWDM4 transceivers demand more from multimode infrastructure, this GoodConnections Alcasa patch cable delivers a dependable, high-bandwidth link between distribution panels and active equipment. Its OM5 rating and duplex design make it a sensible choice for high-speed rack-to-rack and switch-to-switch connections.

Key specifications

• Cable type: Fibre optic patch cable, duplex
• Fibre type: OM5 multimode, laser-optimised, 50/125 µm
• Connectors: 2x SC (duplex), ceramic ferrules
• Length: 15 m
• Jacket: LSZH (Low Smoke Zero Halogen), green
• Core/cladding diameter: 50/125 µm
• Minimum modal bandwidth: 4700 MHz·km @850 nm, 2470 MHz·km @953 nm
• Maximum insertion loss: ≤0.3 dB per connector pair
• Minimum return loss: ≥30 dB
• Cable diameter: 2.0 mm
• Operating temperature: -20°C to 70°C
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801, IEC 60794-2-50, RoHS

Why choose it

The cable is laser-optimised for OM5 performance, providing plenty of headroom for emerging SWDM4 applications. Its LSZH jacket reduces toxic and corrosive gas emissions in the event of fire, making it safer for confined spaces such as data centres. With low insertion loss and high return loss, it helps keep the optical link stable and error-free.

Ideal use cases

• Data centre and enterprise network patching
• Direct connection between switches, servers and storage devices
• High-speed application support including 40/100GbE and SWDM4

Good to know

OM5 multimode fibre is designed to support short wavelength division multiplexing (SWDM), which allows multiple wavelengths to be transmitted over a single fibre pair, effectively increasing bandwidth capacity without additional cabling.
