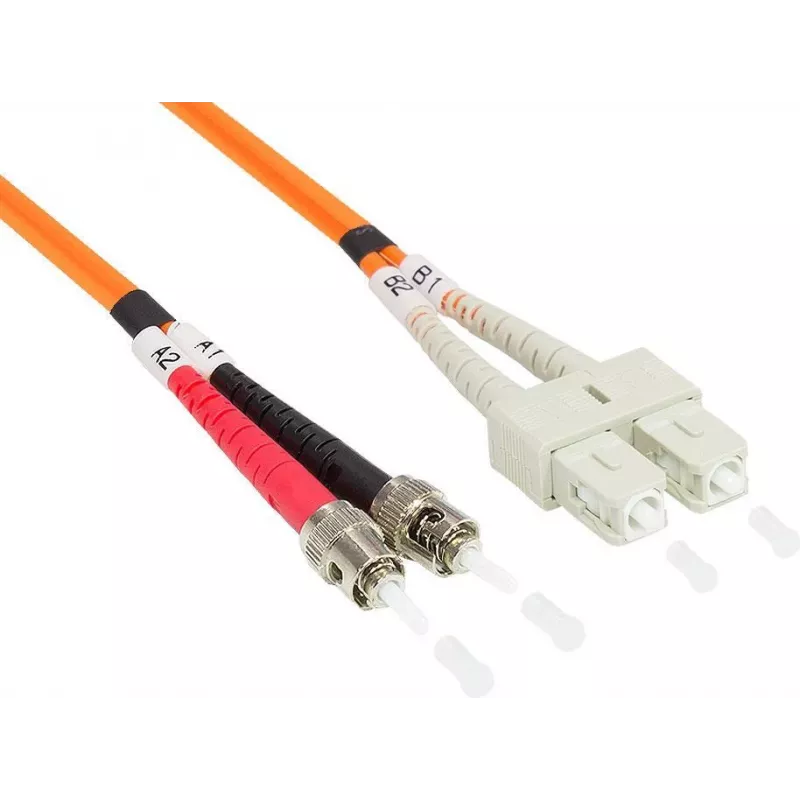

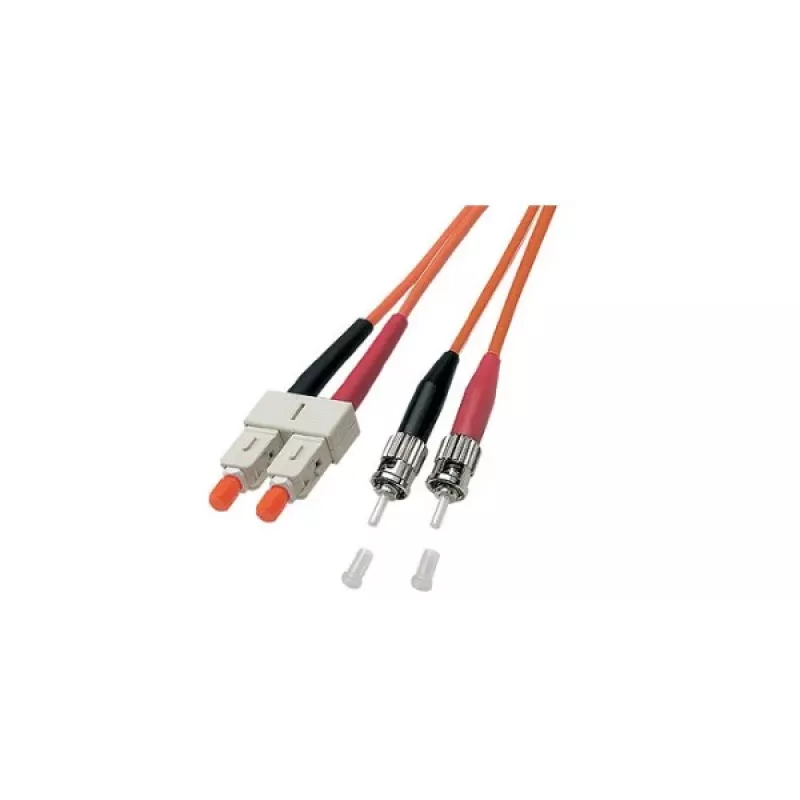

GoodConnections Cabo de fibra ótica OM2 duplex multimodo ST/SC, 50/125 µm, 5 m, laranja LW-805TC

Fibre optic patch cable with OM2 multimode fibre, duplex ST to SC connectors, and a 5-metre orange PVC jacket. This cable delivers reliable high-bandwidth connectivity for fast Ethernet, Fibre Channel, and ATM networks, supporting distances up to 550 metres at 1 Gbps.

Advantages

OM2 multimode fibre with 50/125µm core/cladding provides excellent signal integrity and low attenuation. Duplex ST and SC connectors with PC polish ensure precise alignment and minimal insertion loss. The orange PVC jacket is durable, flexible, and easy to identify in structured cabling systems. Fully compliant with TIA/EIA-568-C.3 and RoHS standards.

Suitable for

• Enterprise network backbone connections
• Data centre patching between switches, routers, and servers
• Telecommunications rooms and campus networks
• Industrial environments requiring robust fibre links

Key specifications

• Fibre type: OM2 multimode, 50/125µm
• Connectors: ST to SC, duplex, PC polish
• Length: 5 metres
• Jacket: PVC, orange
• Attenuation: ≤3.0 dB/km @850nm, ≤1.0 dB/km @1300nm
• Bandwidth: 500 MHz·km @850nm & @1300nm
• Insertion loss: <0.3 dB typical
• Return loss: >30 dB typical
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, TIA/EIA-568-C.3

Recommendations

Ideal for professionals seeking a dependable, standards-compliant OM2 patch cable for multimode fibre installations. Pair with matching ST and SC adapters for seamless connectivity.
