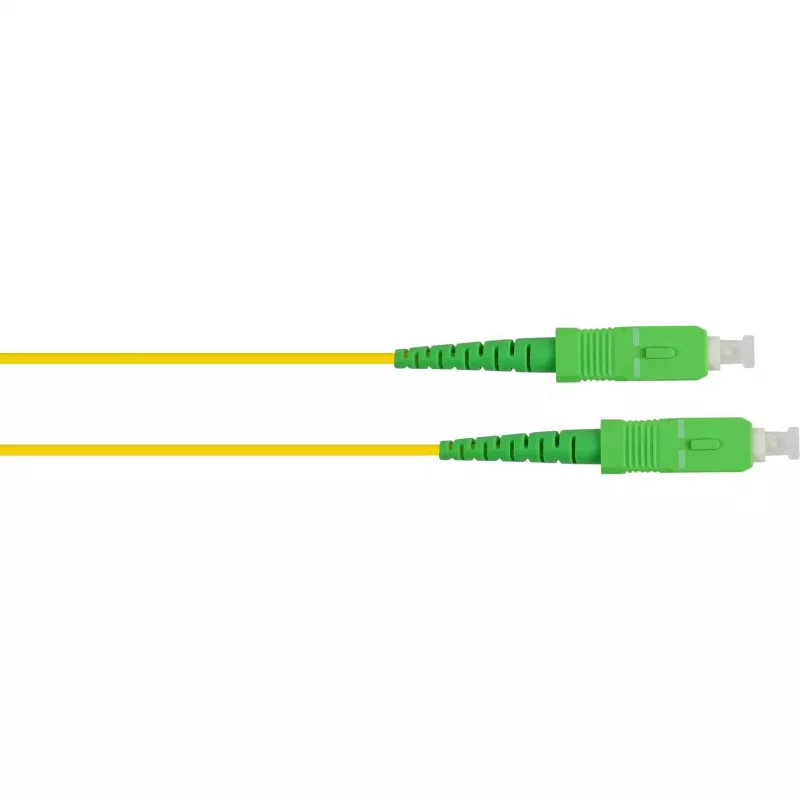

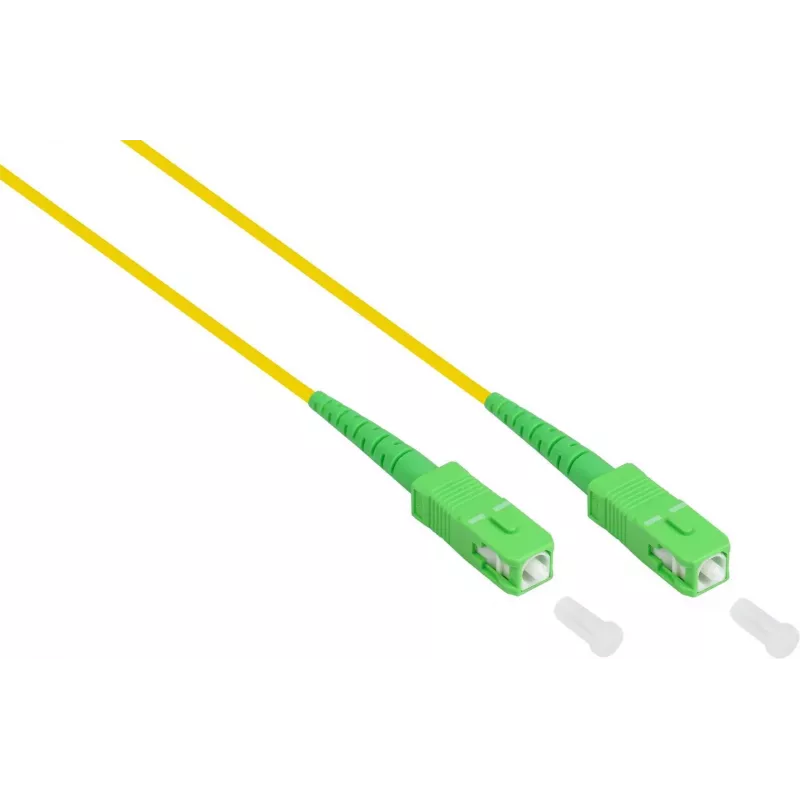

GoodConnections cabo de patch de fibra ótica OS2 monomodo simplex de 1m SC/APC a SC/APC, LSZH, 9/125µm LW-S901SASA

Fiber optic patch cable engineered for high-precision singlemode connectivity, delivering exceptional return loss performance with SC/APC connectors. This 1-meter simplex OS2 cable features a 9/125µm core/cladding and an LSZH jacket, making it ideal for FTTH, CATV, and long-haul network applications where signal integrity is critical.

Advantages

The angled physical contact (APC) polish on both SC connectors minimizes back reflections, achieving a typical return loss of over 60 dB. This ensures superior signal clarity for high-bandwidth transmissions. The low smoke zero halogen jacket enhances safety in enclosed spaces by reducing toxic emissions and smoke in case of fire. With a typical insertion loss below 0.3 dB, this cable maintains excellent link budgets over long distances.

Suitable for

• FTTH (Fiber to the Home) installations
• CATV and HFC networks
• Telecommunications and data centers
• Long-haul singlemode links
• High-density fiber patching

Key specifications

• Fiber type: OS2 singlemode (G.652.D)
• Core/cladding diameter: 9/125 µm
• Connectors: SC/APC to SC/APC
• Length: 1 meter
• Jacket material: LSZH
• Insertion loss: < 0.3 dB typical
• Return loss: > 60 dB typical
• Attenuation: ≤ 0.35 dB/km @ 1310nm, ≤ 0.25 dB/km @ 1550nm
• Operating temperature: -20°C to +70°C
• Bend radius: 10 mm static, 30 mm dynamic
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are kept clean and protected with dust caps when not in use. Avoid exceeding the minimum bend radius to prevent signal loss. This cable is ideal for patching between ODFs, optical splitters, and active equipment in singlemode networks.
