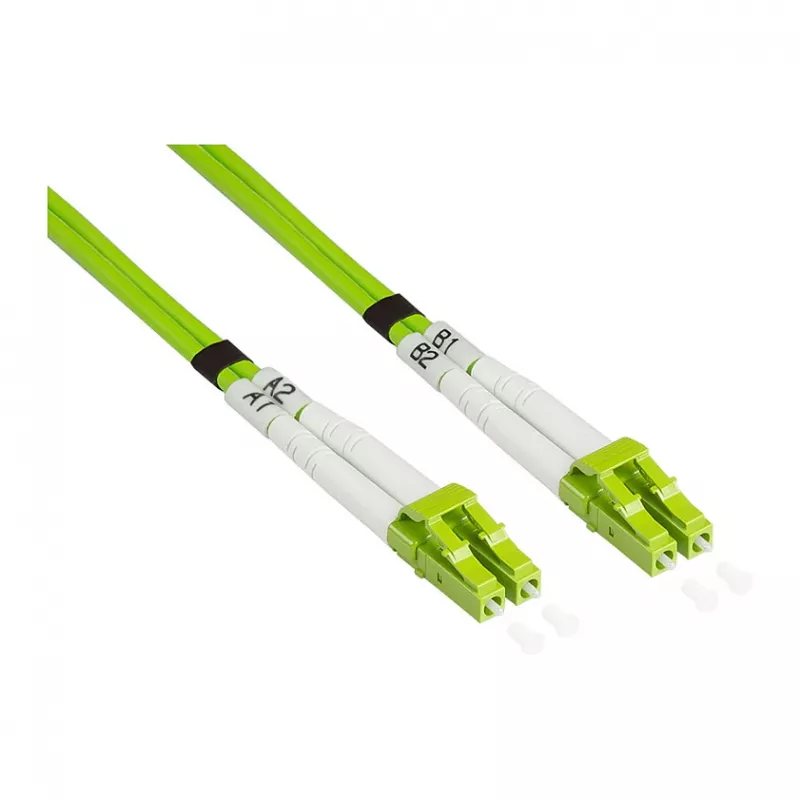

GoodConnections LW-815LC5 cabo de patch de fibra ótica 15m OM5 LSZH LC duplex verde

In a busy data center, a network engineer needs a reliable link between a top-of-rack switch and a server. This 15-meter OM5 multimode fiber patch cable from GoodConnections delivers that connection with LC duplex connectors on both ends and a green LSZH jacket. It supports high-speed Ethernet up to 400G using SWDM technology, making it a practical choice for modern infrastructure.

Key specifications

• Fiber type: OM5 wideband multimode (WBMMF), 50/125 µm core/cladding
• Connectors: LC duplex to LC duplex
• Length: 15 meters (49.2 ft)
• Jacket: LSZH (Low Smoke Zero Halogen), green
• Modal bandwidth: 4700 MHz·km @ 850 nm
• Insertion loss: ≤ 0.3 dB per connector pair
• Return loss: ≥ 50 dB
• Operating temperature: -20°C to 70°C
• Standards: IEC 60793-2-10 Type A1a.4, TIA-492AAAE, ISO/IEC 11801

Why choose it

OM5 fiber extends the usable wavelength range from 850 nm to 953 nm, enabling shortwave wavelength division multiplexing (SWDM). This allows 40G and 100G Ethernet over a single duplex pair, reducing fiber count and cost. The LSZH jacket emits low smoke and no halogen gases in a fire, enhancing safety in enclosed spaces.

Ideal use cases

• High-speed data center interconnects
• Enterprise backbone links
• 40G/100G/200G/400G Ethernet deployments
• SAN and high-performance computing environments

Good to know

The cable is duplex with two fibers, and the LC connectors are easy to handle in high-density patch panels. It meets strict fire safety standards and is built for reliable performance in demanding network environments.
