Patch Panel Alcasa GC-N0121

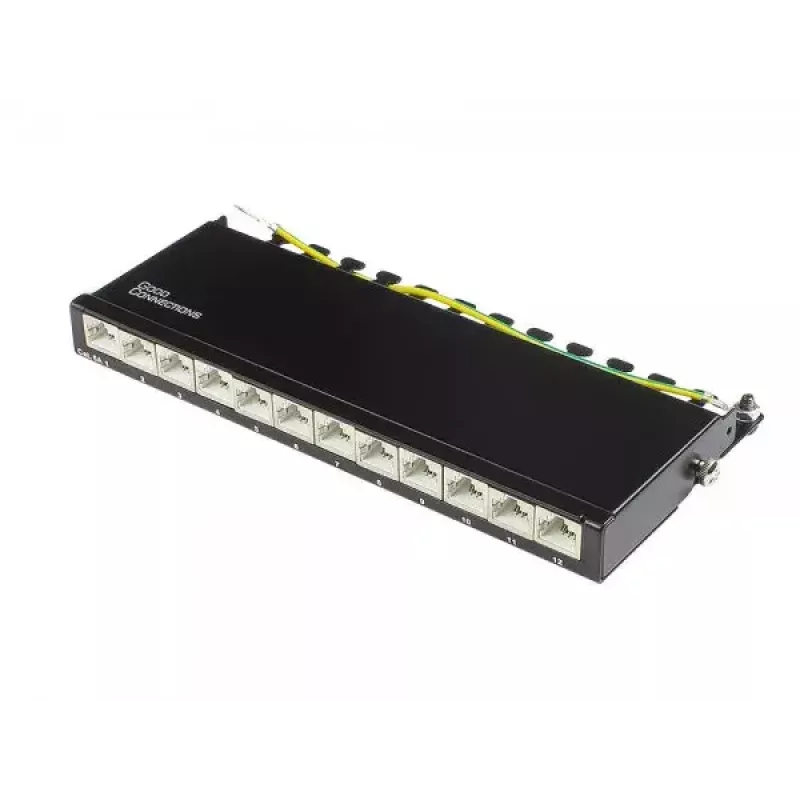

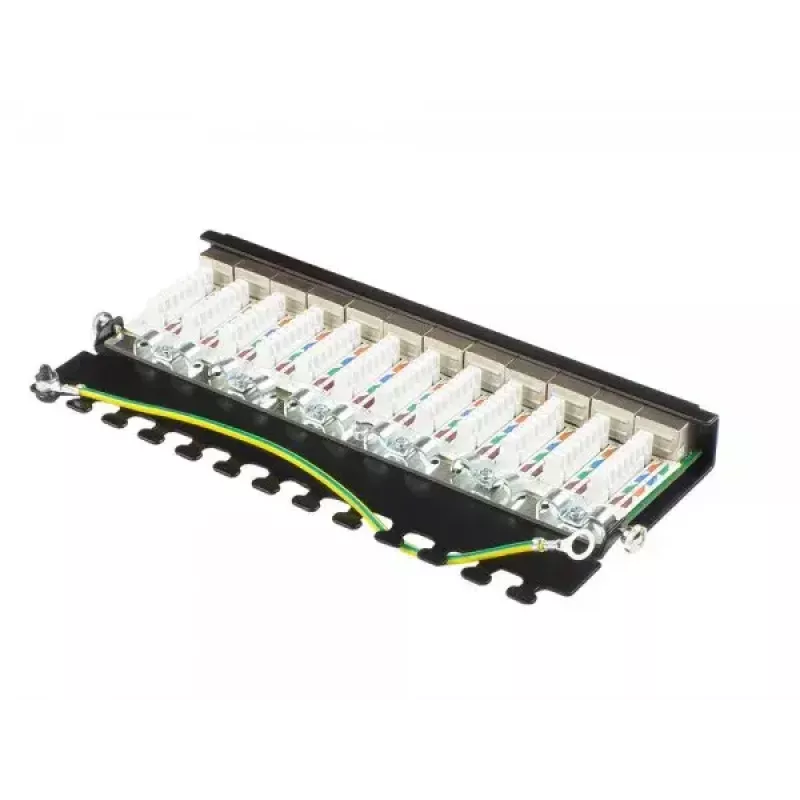

The Alcasa GC-N0121 is a 0.5U patch panel engineered for 10 Gigabit Ethernet networks. It provides twelve RJ45 ports arranged in a compact metal housing finished in black. Designed to accept Cat6a cable types, this Good Connections patch panel offers a space-efficient 0.5U form factor with dimensions of 212 mm (width) × 22 mm (height) × 100 mm (depth), allowing straightforward installation in standard 19-inch rack enclosures and open frame racks.

Advantages

The steel construction delivers mechanical strength and durability while the black finish offers a neutral, professional appearance in equipment cabinets. Twelve RJ45 ports support high-speed 10 Gigabit Ethernet links when terminated with Cat6a cabling, helping maintain signal integrity and consistent network performance. The compact 0.5U height conserves rack space, enabling higher port density in limited rack units.

Suitable for

• Data center top-of-rack or middle-of-row patching for 10GbE links
• Server rooms and network closets with Cat6a structured cabling
• Telecommunication racks in small to medium enterprise environments
• Retrofit projects where a low-profile, space-saving patch panel is required

Key specifications

• Form factor: 0.5U rack-mount panel
• Ports: 12 × RJ45
• Supported cable type: Cat6a
• Supported connection speed: 10 Gigabit Ethernet
• Material: steel housing
• Colour: black
• Dimensions: 212 mm (W) × 22 mm (H) × 100 mm (D)

How to use

Mount the patch panel into a standard 19-inch rack or frame using appropriate rack screws and cage nuts for a 0.5U position. Terminate each Cat6a cable to the corresponding RJ45 jack following T568A or T568B wiring standards, ensuring proper pair alignment and maintaining cable twist to preserve performance. After termination, label ports as required for easy identification, route patch cords to switches or active equipment, and verify connectivity and link speed with appropriate network testers.

Recommendations

Use Cat6a-rated cabling and maintain correct bend radius and separation from power cables to achieve reliable 10GbE performance. Periodically inspect terminations and cable management to prevent strain on RJ45 jacks and to sustain signal quality over time.
