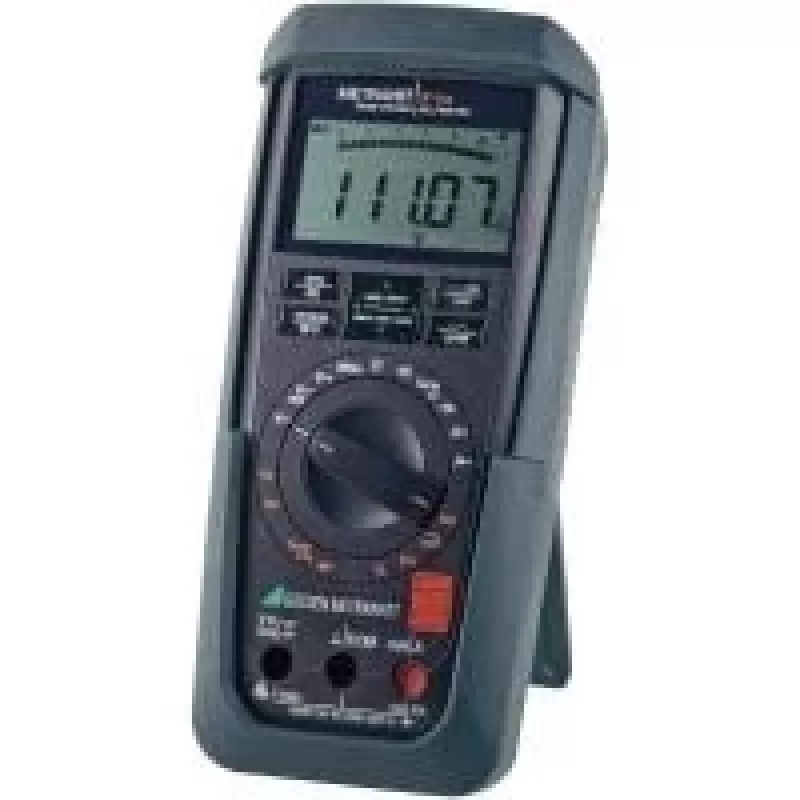

GOSSEN METRAWATT METRAHIT X-TRA multímetro digital, calibrado DAkkS, CAT III 1000 V / CAT IV 600 V, 60.000 counts, TRMS, M240A

Electrical engineers and field service technicians rely on the GOSSEN METRAWATT METRAHIT X-TRA for precise measurements in industrial and laboratory environments. This digital multimeter delivers 60,000 counts with true RMS capability for accurate AC voltage and current readings, even on non-sinusoidal waveforms. It is DAkkS calibrated and rated CAT III 1000 V / CAT IV 600 V for safe use on high-energy circuits.

Key specifications

• Display: 60,000 counts, digital
• Measurement principle: True RMS (TRMS) for AC voltage and current
• DC voltage range: 600 mV to 1000 V
• AC voltage range: 600 mV to 1000 V
• DC current range: 600 µA to 10 A (16 A for 30 s)
• AC current range: 600 µA to 10 A (16 A for 30 s)
• Resistance range: 600 Ω to 60 MΩ
• Capacitance range: 60 nF to 6 mF
• Frequency range: 60 Hz to 1 MHz
• Temperature measurement range: -200 °C to +1372 °C (K-type thermocouple)
• Safety category: CAT III 1000 V / CAT IV 600 V
• Data logger capacity: 15,400 measured values
• Interface: Infrared (for optional PC adapter)
• Protection rating: IP52
• Calibration certificate: DAkkS calibrated
• Special functions: Min/Max/Peak Hold, low-pass filter, automatic range selection, diode test, continuity test
• Power supply: 2 x 1.5 V AA batteries
• Basic DCV accuracy: ±0.05% + 5 digits

Why choose it

The METRAHIT X-TRA combines high measurement accuracy with robust safety features, making it suitable for demanding electrical work. Its DAkkS calibration certificate ensures traceability to national standards, and the large data logger capacity allows for extended recording sessions.

Ideal use cases

• Industrial maintenance and troubleshooting
• Laboratory measurements requiring high precision
• Field service on power distribution systems
• Testing and verification in electrical installations

Good to know

The multimeter operates on two AA batteries and features an infrared interface for optional PC connectivity. Its IP52 protection rating provides resistance to dust and dripping water, enhancing durability in challenging environments.
