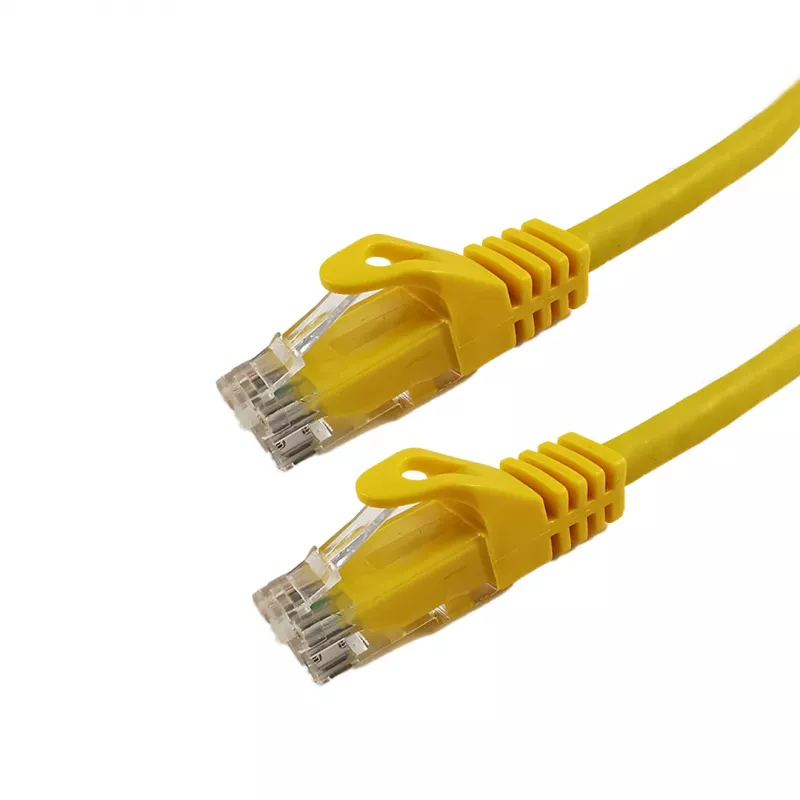

Grafenthal cabo de rede CAT6 F/UTP CU LSZH 0,25m amarelo

The Grafenthal Patch Cable CAT6 F/UTP CU LSZH 0.25m Yellow is a high-performance Ethernet cable designed for reliable network connections in data centers, server rooms, and professional IT environments. Manufactured with 100% copper conductors and F/UTP shielding, this cable ensures excellent signal integrity and minimal crosstalk, supporting Gigabit Ethernet and up to 10GBASE-T over short distances. The LSZH jacket provides enhanced safety in enclosed spaces, reducing toxic smoke and fumes in case of fire.

Advantages

This patch cable offers superior performance and durability. The gold-plated RJ45 connectors (50µ) ensure corrosion-resistant, stable connections. The stranded conductor construction provides flexibility for easy routing and cable management. With a bandwidth of up to 250 MHz and compliance with TIA/EIA-568B wiring standard, it is ideal for high-speed data transmission.

Suitable for

• Connecting computers, switches, routers, and patch panels in LAN networks
• Data centers and server rooms requiring reliable, high-speed connections
• Professional audio/video streaming and IP surveillance systems
• Any application where safety and performance are critical

Key specifications

• Cable Type: Patch Cable
• Category: CAT6
• Shielding: F/UTP (Foiled/Unshielded Twisted Pair)
• Conductor Material: 100% Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 0.25 m
• Color: Yellow
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µ)
• Conductor Gauge: 26 AWG
• Wiring Standard: TIA/EIA-568B
• Bandwidth: Up to 250 MHz
• Data Transfer Rate: Supports 10/100/1000BASE-T (Gigabit Ethernet), up to 10GBASE-T over short distances
• Cable Construction: Stranded
• Outer Diameter: Approx. 6.0 mm
• Impedance: 100 Ohm
• Operating Temperature: -20°C to 60°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with CAT6-compatible network equipment. Ensure proper cable management to avoid sharp bends and maintain signal quality. Ideal for short-distance connections where space is limited.
