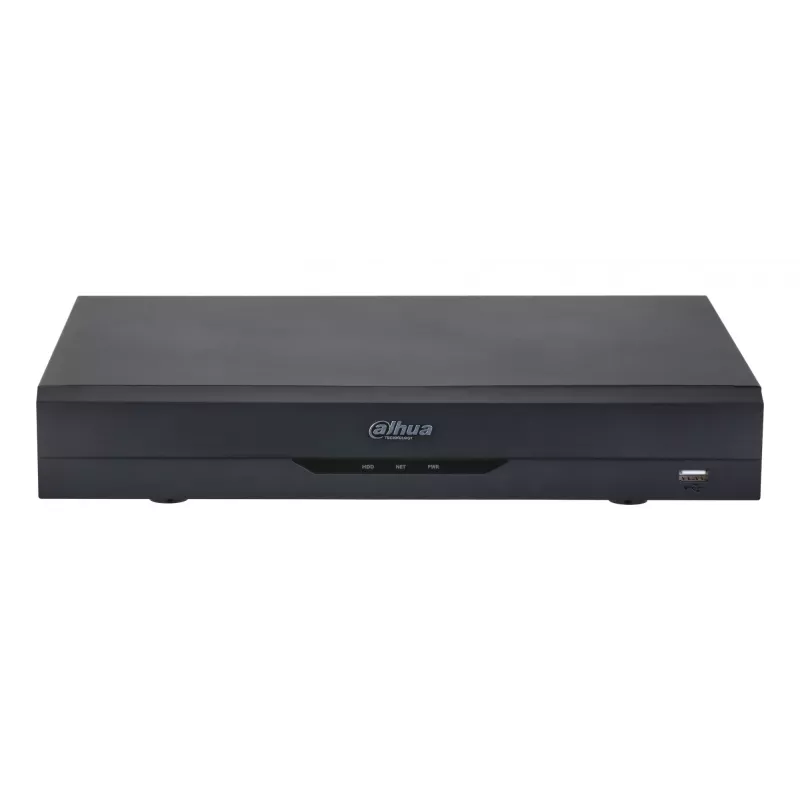

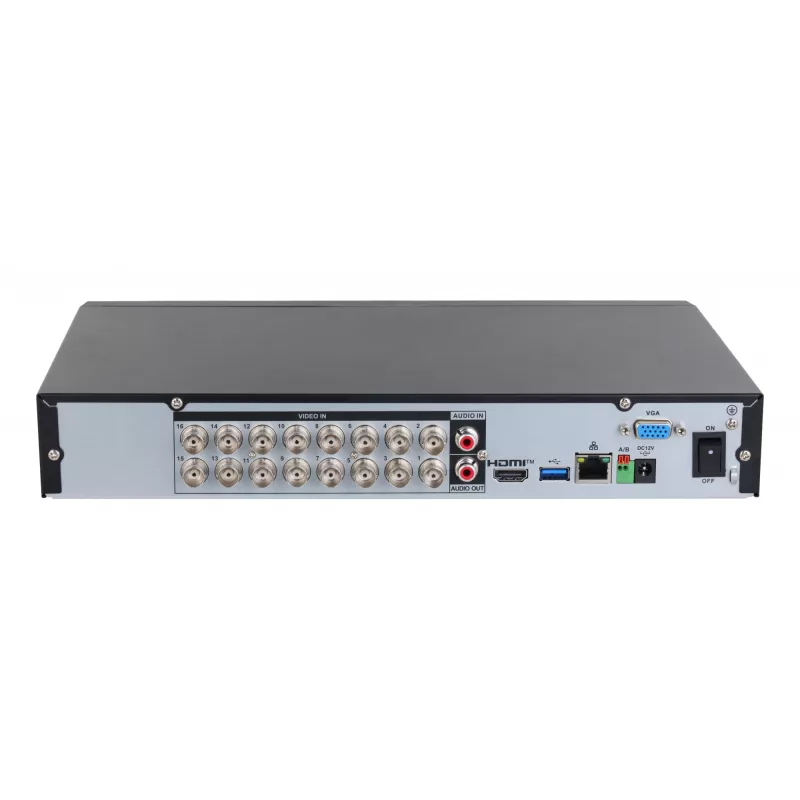

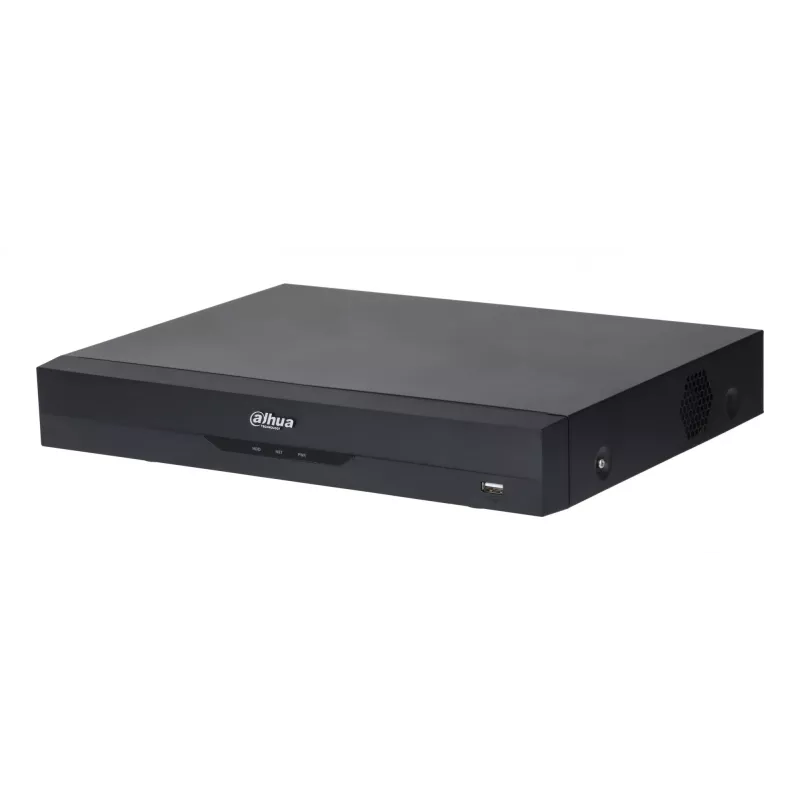

Dahua XVR5116H-4KL-I3/T DVR HDCVI penta-brid de 16 canais

The Dahua XVR5116H-4KL-I3/T is a 16-channel penta-brid HDCVI DVR in black. It supports HDCVI, AHD, TVI, CVBS and IP video input, and offers AI features such as AcuPick, perimeter protection, face recognition and SMD Plus.

Key features

• 16-channel two-way talk over coaxial cable
• 8-channel AcuPick for analog channels
• 8-channel perimeter protection for analog channels with tripwire and intrusion detection
• 4-channel face recognition for analog channels with face comparison
• 16-channel SMD Plus for analog channels or 32-channel SMD by camera
• 16-channel AI Coding
• Supports HDCVI, AHD, TVI, CVBS and IP video input
• Supports up to 32-channel IP camera input, each up to 8 MP, incoming bandwidth up to 128 Mbps
• Supports accessing Wi-Fi cameras
• Smart H.265+ and H.265 dual-stream video compression

Specifications

• Brand: Dahua
• MPN: XVR5116H-4KL-I3/T
• Product colour: Black
• Video input channels: 16
• Maximum video resolution: 3840 x 2160 pixels
• Video compression formats: H.264, H.264+, H.265, H.265+
• Video resolutions: 3840 x 2160, 1920 x 1080, 1280 x 720 pixels
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet, Gigabit Ethernet
• Ethernet LAN data rates: 10, 100, 1000 Mbit/s
• Supported network protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P
• Maximum HDD capacity: 16 TB
• Number of HDDs supported: 1
• Audio formats supported: G.711 A-law, G.711u, PCM
• Audio input channels: 16
• Audio output channels: 1.0
• Backup function: Yes
• Dual stream support: Yes
• Graphical user interface (GUI): Yes
• Multi-display modes: 1/16/25/36/4/8/9
• Multi-display supported: Yes
• Operating system installed: Embedded LINUX
• Playback modes: Event, General, Instant, Smart, Tag
• Rack capacity: 1U
• USB connectivity: Yes
• Video loss detection: Yes
• Video motion detection: Yes
• Power supply type: DC
• DC voltage: 12 V
• Power consumption (typical): 15 W
• Width: 325 mm
• Depth: 257.1 mm
• Height: 55 mm
• Weight: 1390 g
• Operating relative humidity: 10 - 90%
• Operating temperature: -10 - 55°C
• Storage temperature: -20 - 60°C
• Compliance certificates: CE
• Quick start guide: Yes
