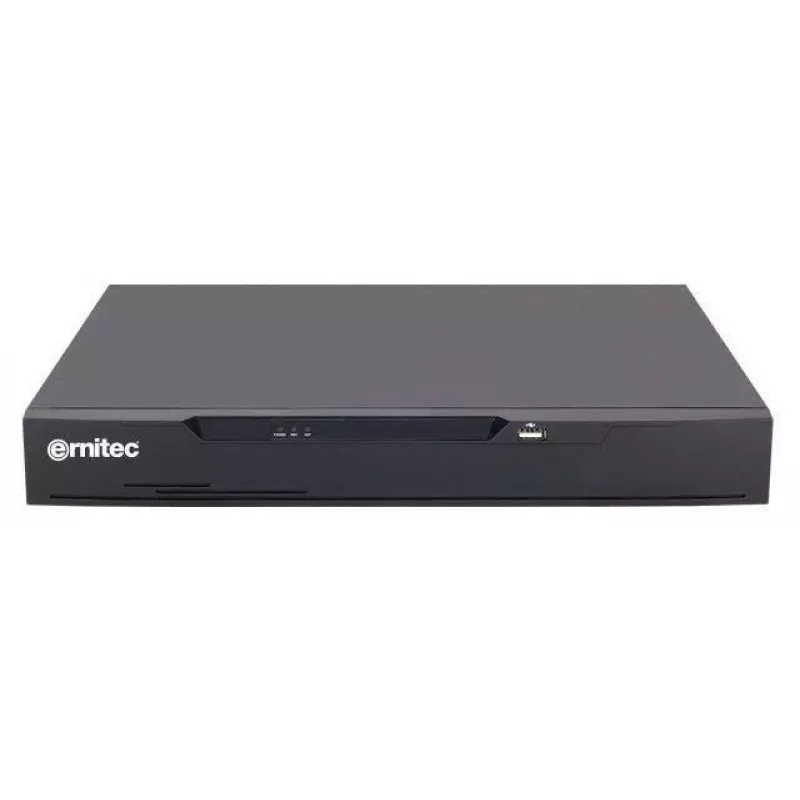

Gravador de vídeo em rede ERNITEC 0070-10403-A4 — Unidade NVR (Modelo 0070-10403-A4)

ERNITEC 0070-10403-A4 is a network video recorder (NVR) designed for centralized recording and management of IP and analog surveillance cameras. The unit accepts mixed video inputs including AHD, TVI, CVI, CVBS and IP streams, supports recording up to 4K-N/5MP resolution, and provides HDMI and VGA outputs for live monitoring and playback. It is intended for continuous and scheduled recording in commercial and industrial surveillance installations where multi-channel monitoring and reliable archive storage are required.

Advantages

The recorder supports up to 24 IP camera inputs with each channel capable of handling resolutions up to 5MP, enabling high-detail capture across multiple locations. Native support for AHD, TVI, CVI and CVBS analog formats simplifies integration with existing coaxial camera systems while IP inputs allow expansion and higher-resolution cameras. HDMI output at up to 3840×2160 and VGA output options provide flexible display choices for operator workstations. The device includes smart search and playback features, multi-language support and a consistent GUI/WEB interface for simplified management.

Suitable for

• Retail stores requiring multi-camera coverage and archive storage
• Office buildings and corporate sites with mixed analog and IP cameras
• Industrial facilities needing continuous recording and evidence retention
• Medium-scale surveillance deployments with centralized monitoring

Key specifications

• Video input formats: AHD, TVI, CVI, CVBS and IP
• Analog video inputs: 16-channel BNC
• IP video inputs: up to 24 channels (16+8ch), each channel up to 5MP
• Supported analog camera resolutions: 8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1
• CVBS output: PAL/NTSC support
• HDMI output resolutions: 3840×2160, 1920×1080, 1280×1024, 1024×768
• VGA output resolutions: 1920×1080, 1280×1024, 1024×768
• Audio inputs/outputs: 6/1
• Synchronous playback modes: 16 / 9 / 4 / 1 channels

How to use

Install cameras and connect analog cameras to the BNC ports and IP cameras to the network. Configure network settings and camera registration through the device GUI or web interface using the same interface layout for local and remote access. Set up recording schedules for continuous or event-triggered recording and allocate storage as required. Use HDMI or VGA outputs to connect to a monitor for live monitoring and use the smart search and playback functions to review recorded footage.

Recommendations

When deploying the NVR, use a dedicated network segment for IP cameras to ensure consistent bandwidth. Allocate sufficient storage based on camera count and chosen recording resolution, and enable scheduled backups or export important clips to external storage for evidence retention. Regularly check firmware updates and use the device’s smart search tools to speed up incident review.
