Gravador de vídeo em rede Hikvision DS-7608NXI-I2/8P/VPRO 8 canais 4K

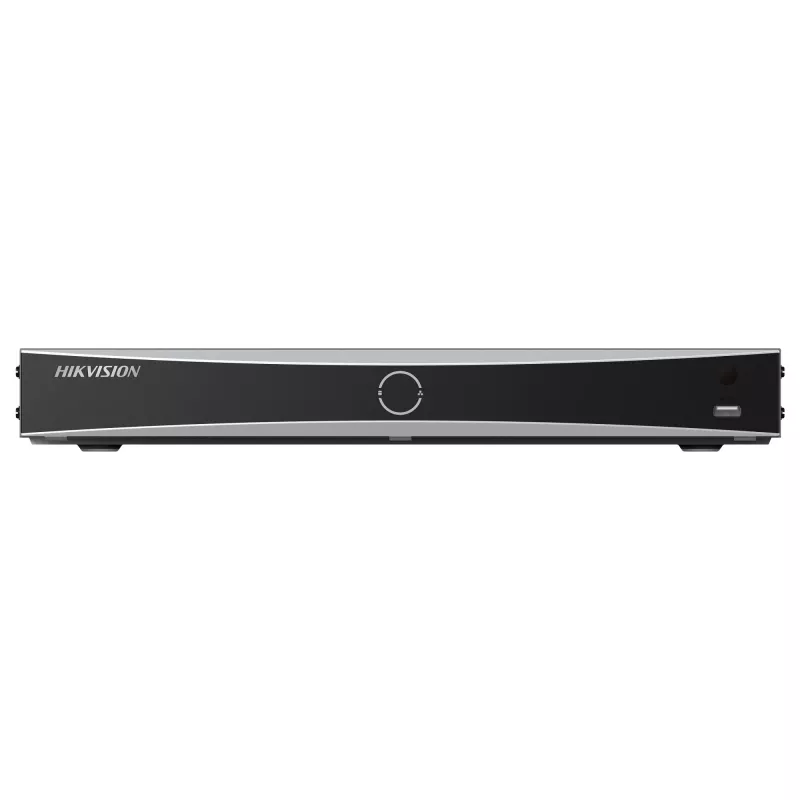

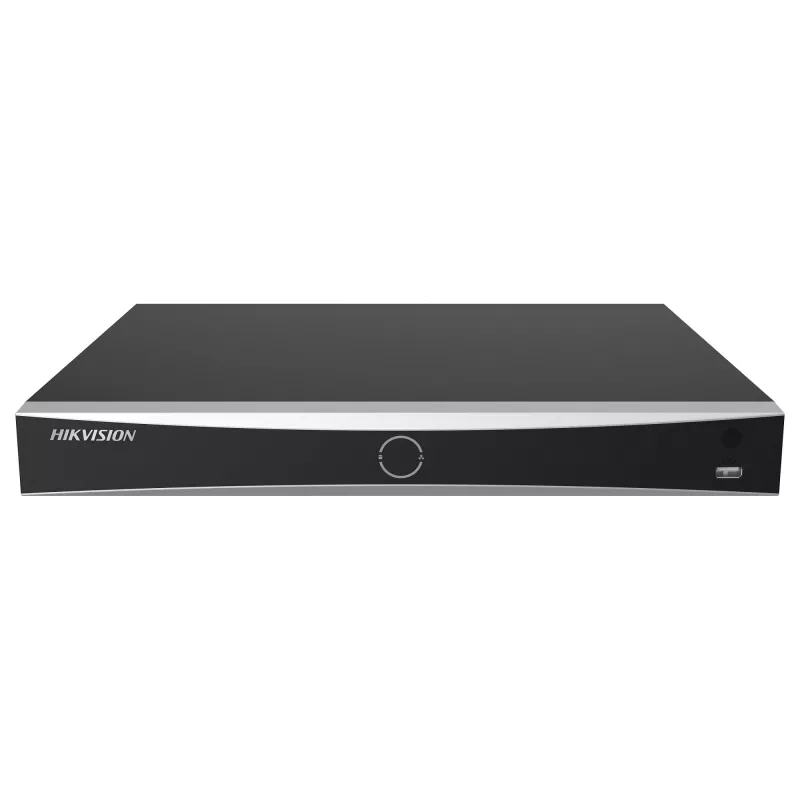

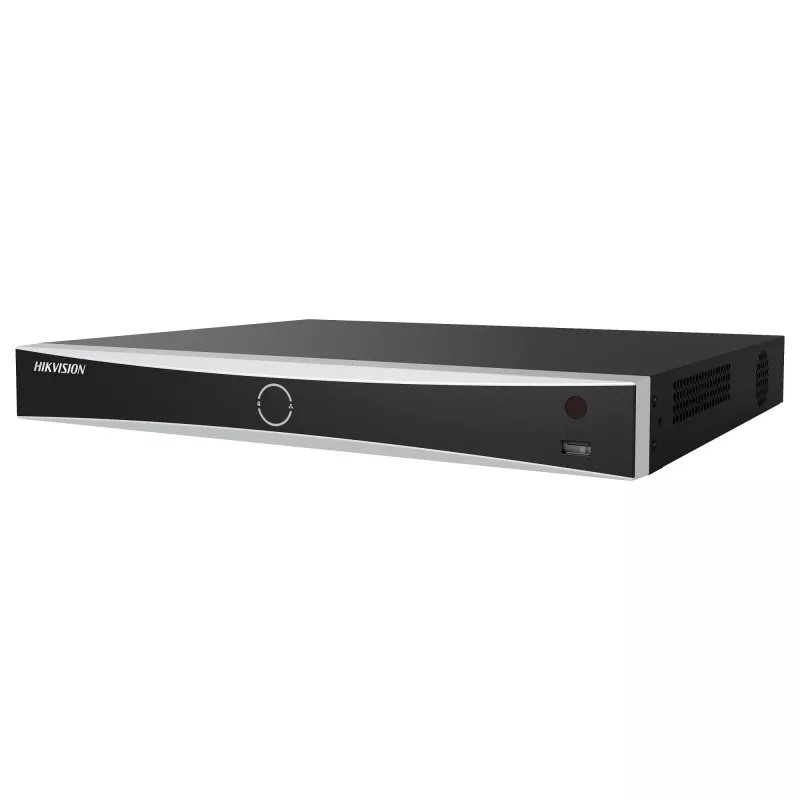

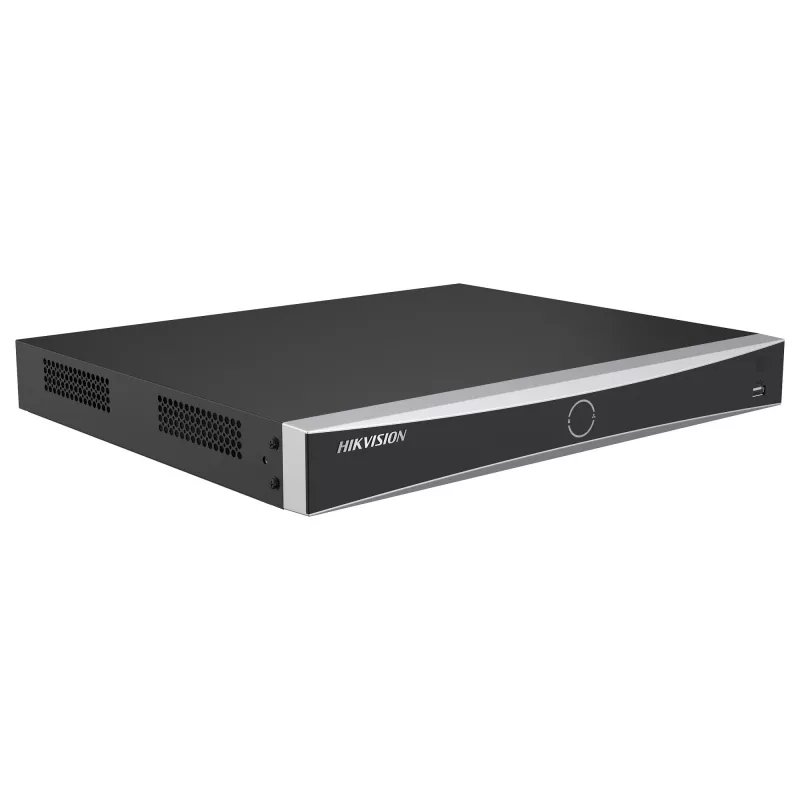

The Hikvision DS-7608NXI-I2/8P/VPRO is a 1U network video recorder supporting up to 8 IP camera inputs and recording at resolutions up to 3840 x 2160 pixels (4K). It provides a maximum internal storage capacity of 20 TB via SATA/SATA II/SATA III HDDs, a total input bandwidth of 96 Mbit/s and an output bandwidth of 256 Mbit/s. The recorder is intended for video surveillance and management, with integrated PoE ports and support for modern video codecs and AI-based analytics.

Advantages

The device supports multiple video codecs including H.265+/H.265 and H.264+/H.264 to reduce bandwidth and storage requirements. It includes intelligent analytics based on Guanlan large-scale AI models and up to 8-channel AcuSeek/AcuSearch capabilities, enhancing search and event detection. The unit offers up to 8-channel facial recognition for face picture extraction and up to 32-channel 1080p decoding capability. Built-in PoE ports simplify camera connectivity and power delivery in a single 1U rack-mountable chassis.

Suitable for

• Small to medium-sized business surveillance systems
• Retail stores and branch offices
• Office buildings and multi-room facilities
• Locations requiring facial recognition and AI-assisted search

Key specifications

• Model: DS-7608NXI-I2/8P/VPRO
• Channels: Up to 8 IP camera inputs
• Max resolution: 3840 x 2160 pixels (4K)
• Codec support: H.265+/H.265/H.264+/H.264
• AI features: Guanlan large-scale AI models, up to 8-ch AcuSeek/AcuSearch, up to 8-ch facial recognition
• Decoding capability: Up to 32-ch 1080p
• Input bandwidth: 96 Mbit/s; Output bandwidth: 256 Mbit/s
• Storage: Up to 20 TB (SATA/SATA II/SATA III)

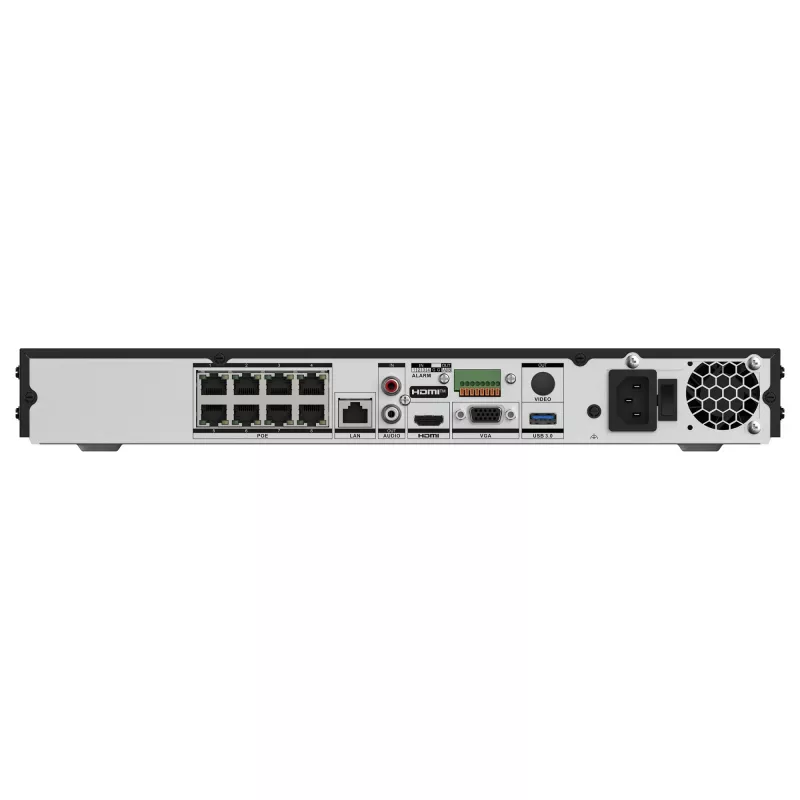

• Network: 9 × RJ-45 LAN ports with PoE
• Form factor: 1U rack mount; Color: Black; Power consumption: 120 W

How to use

Install the recorder in a standard 1U rack space and connect IP cameras to the PoE-enabled RJ-45 ports to provide network connection and power. Add compatible SATA hard drives up to a total of 20 TB to the internal bays. Configure network settings and camera channels through the recorder’s web interface or management software, select desired video codec (H.265+/H.265 or H.264+/H.264) and set recording schedules. Enable AI analytics and facial recognition features as required, and configure storage and retention policies.

Recommendations

For reliable continuous recording and AI analytics performance, use enterprise-grade surveillance HDDs, ensure sufficient network bandwidth for camera streams, and keep firmware updated. Place the recorder in a ventilated rack and configure regular backups for critical footage.
