Gravador de vídeo em rede PoE+ TP-Link VIGI 8 canais

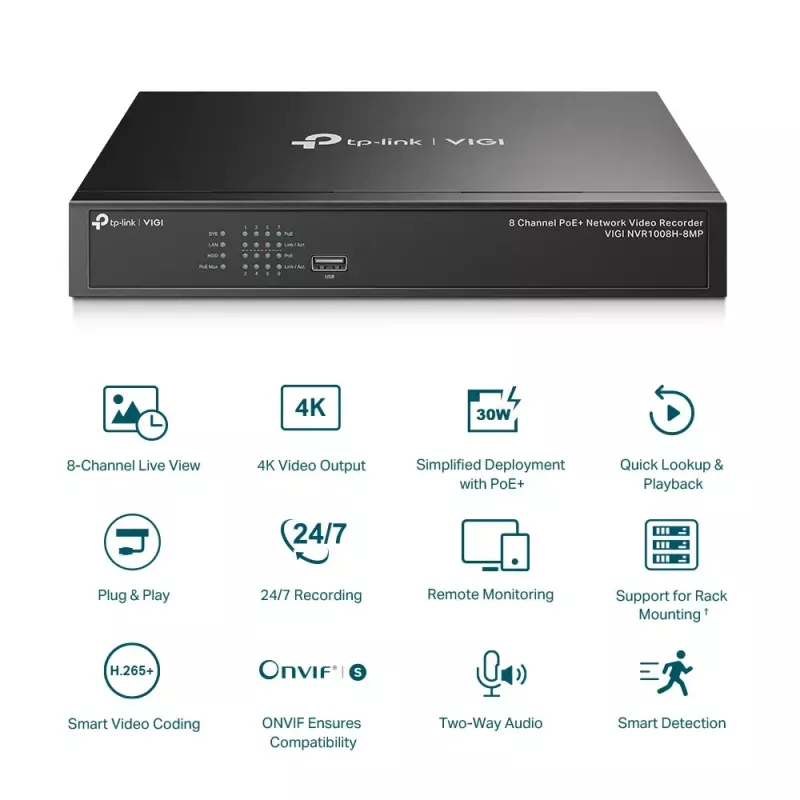

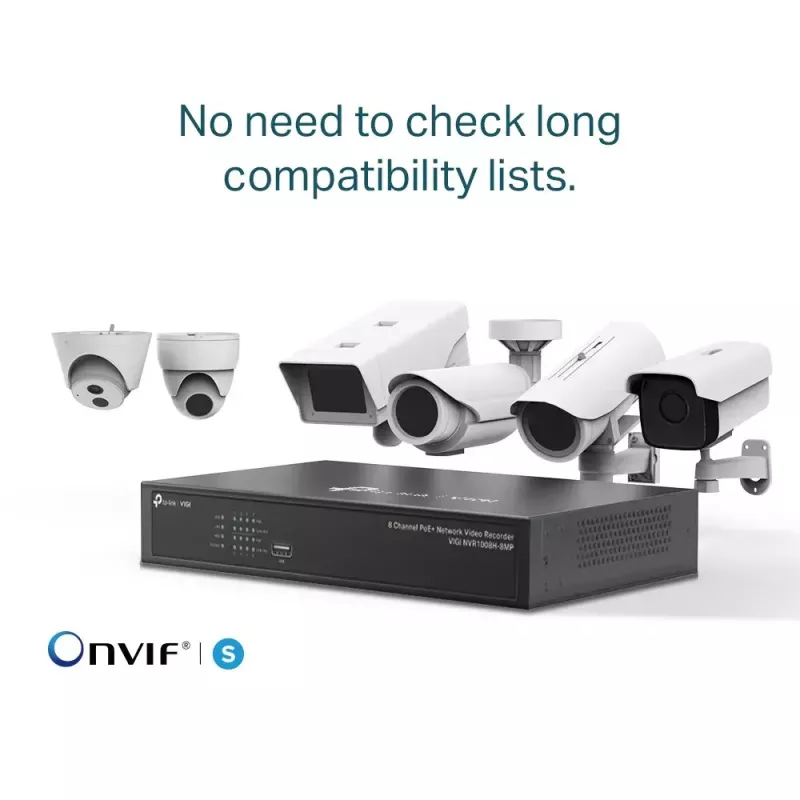

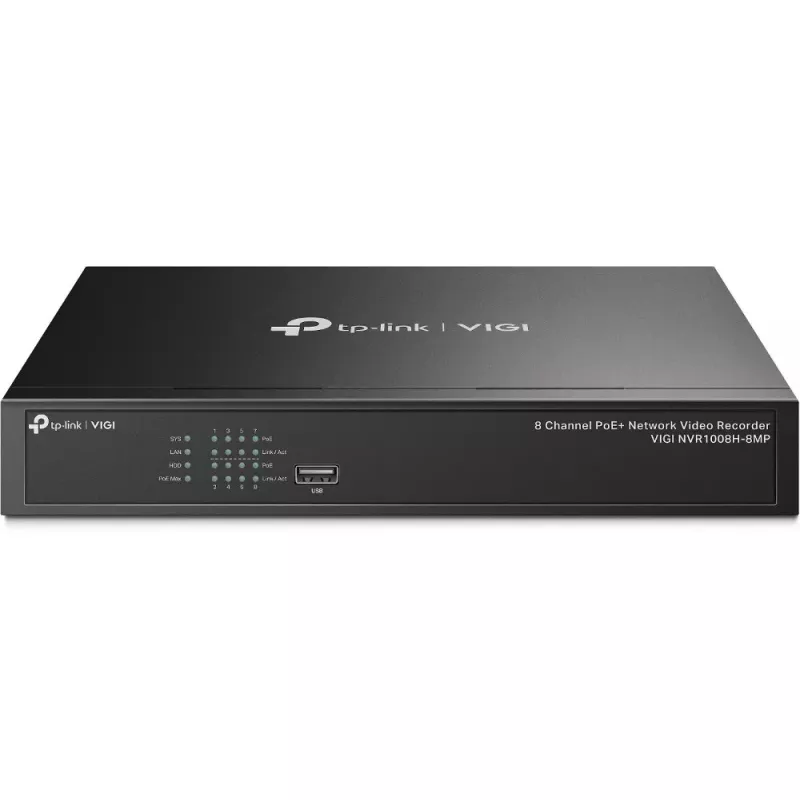

The TP-Link VIGI NVR1008H-8MP is an 8-channel PoE+ network video recorder that supports up to 8MP (3840 × 2160) resolution and 16MP decoding capacity. It provides 4K HDMI output, dedicated 8 PoE+ ports with a total budget of 113 W, and supports SATA HDD storage up to 10 TB. The unit supports continuous 24/7 recording, ONVIF compatibility for third-party IP cameras, and remote monitoring via the VIGI app, web UI, or VIGI Security Manager.

Advantages

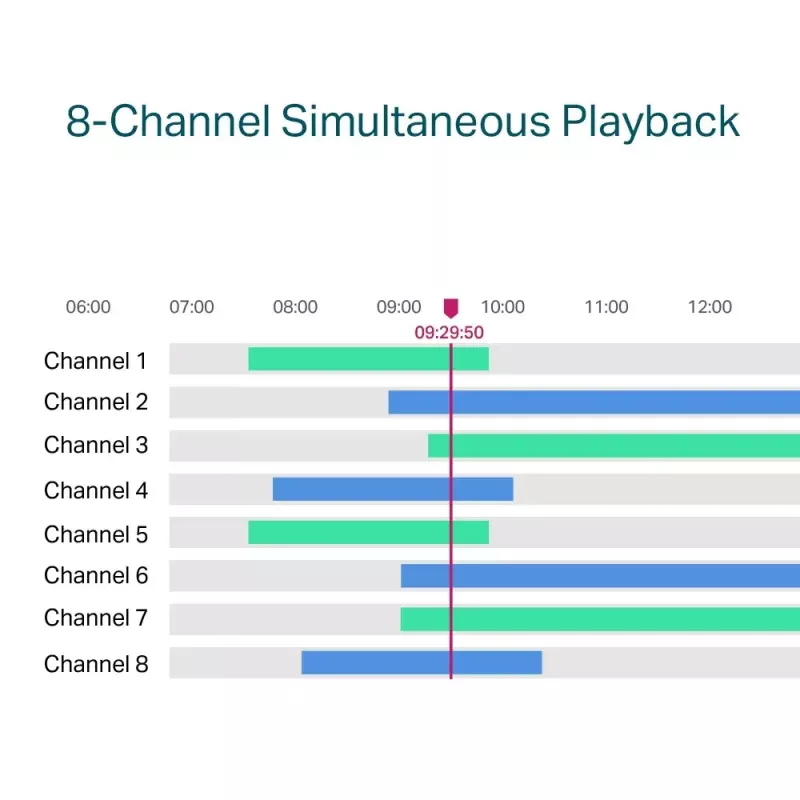

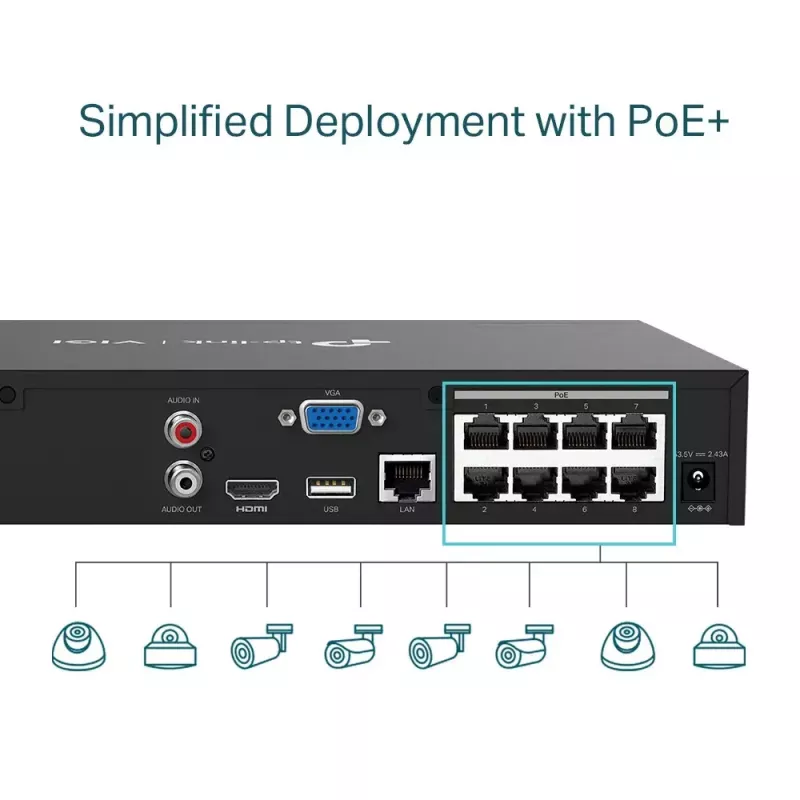

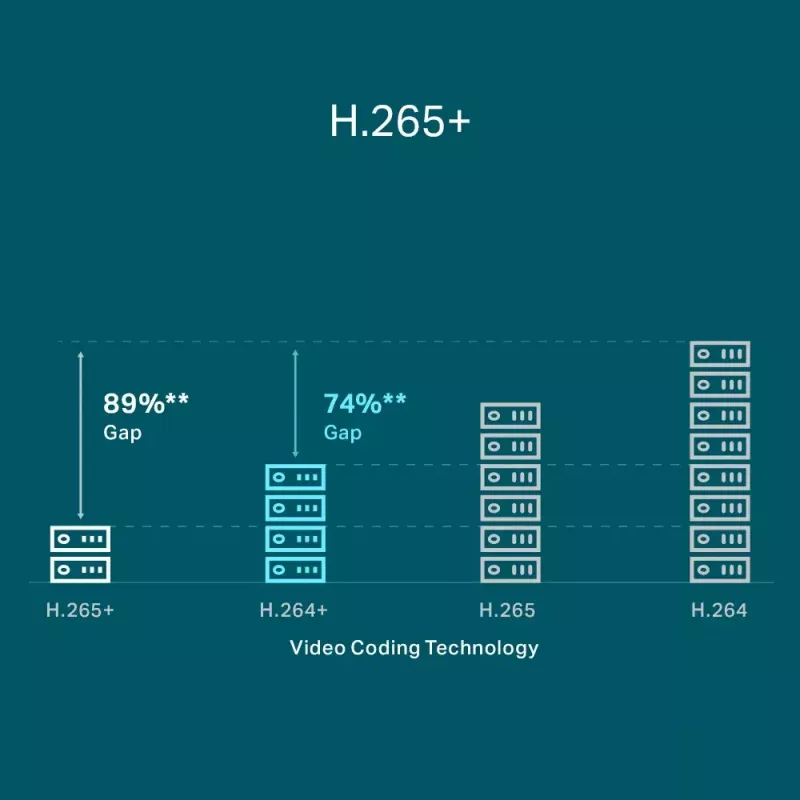

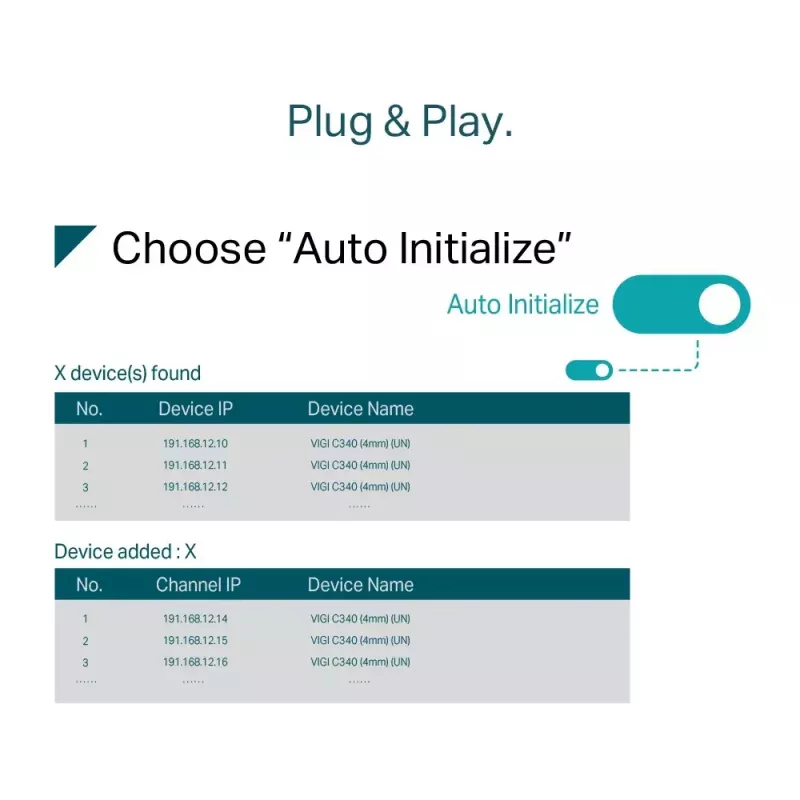

The NVR simplifies camera deployment with eight 10/100 Mbps PoE+ ports providing up to 30 W per port and single-cable power/data transmission. It offers simultaneous 8-channel playback for faster footage review, efficient video compression to save disk space and network bandwidth, and plug-and-play automatic discovery for VIGI IP cameras. Two-way audio is supported for voice intercom, and flexible placement options include rack mount or desktop installation.

Suitable for

• Small business surveillance (retail stores, groceries)
• Warehouses and storage facilities
• Restaurants and hospitality areas
• Financial institutions and office monitoring

Key specifications

• Model: VIGI NVR1008H-8MP (TP-Link)
• Channels: 8 PoE+ channels
• Max resolution supported: up to 3840 × 2160 (8MP)
• Decoding capacity: 16 MP total
• PoE+ ports: 8 × 10/100 Mbps, up to 30 W per port, 113 W total budget
• Storage: 1 × SATA HDD, up to 10 TB

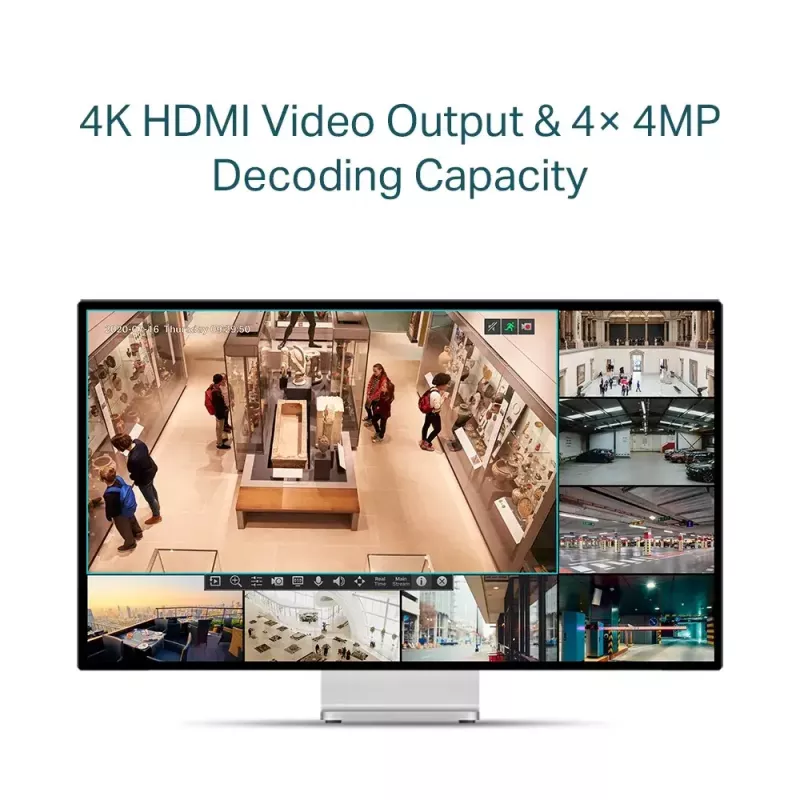

• Video output: 4K HDMI
• Network protocols: TCP/IP, DHCP, DNS, NTP, UPnP
• USB: 2 × USB 2.0 ports
• Ethernet LAN: 1 × RJ-45
• Power consumption (typical): 4.82 W; output voltage: 53.5 V
• Color: Black

How to use

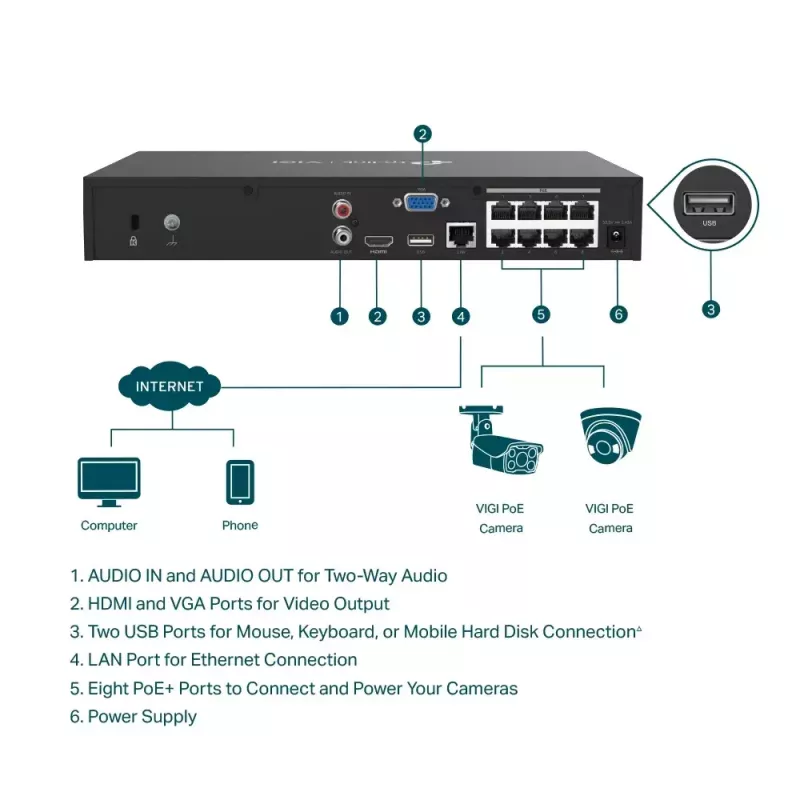

Mount or place the NVR on a rack or desktop, connect cameras to the PoE+ ports using Ethernet cables to provide both power and data, and insert a compatible SATA HDD for local recording (up to 10 TB). Use the HDMI output to connect a monitor for live view and playback. Configure network settings through the web UI or VIGI app, add ONVIF-compliant cameras or allow automatic plug-and-play detection for VIGI IP cameras, and set recording schedules and retention policies as needed.

Recommendations

For reliable 24/7 recording, use a high-quality surveillance-grade SATA HDD and configure proper retention and overwrite settings. Ensure firmware and VIGI app are up to date, and deploy cameras within PoE power limits (up to 30 W per port) to prevent overload. Use the VIGI Security Manager or app for remote monitoring and regular backup of critical footage.
