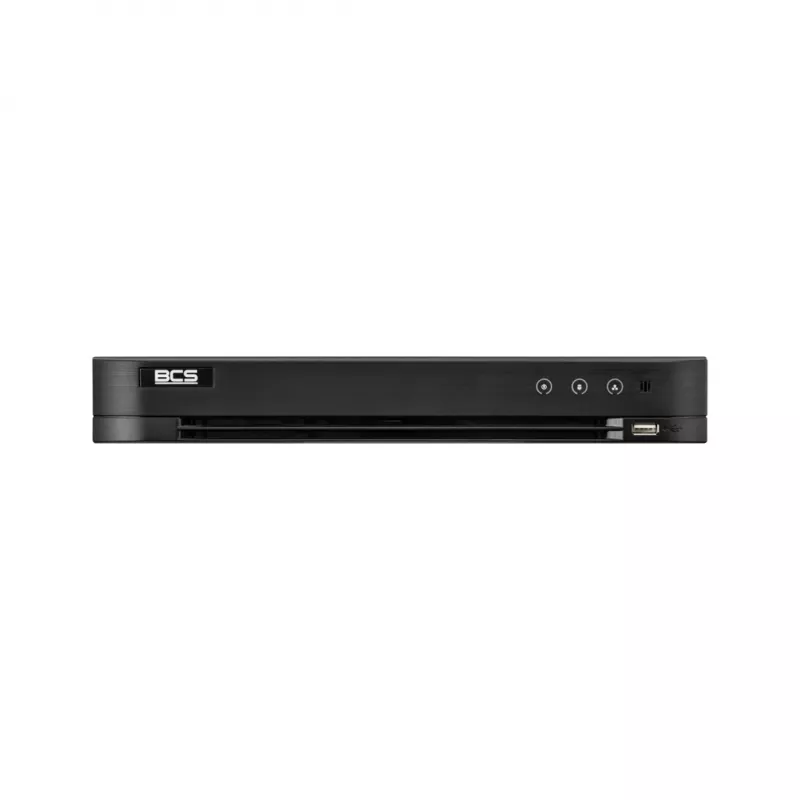

Gravador DVR BCS 16 canais Analog HD BCS-V-XVR1601-Ai com funções de IA

The BCS-V-XVR1601-Ai is a high-performance 16-channel analog HD DVR recorder designed for professional surveillance systems. It supports HDCVI, AHD, TVI, and CVBS video formats with auto-detect, and offers up to 8 additional IP channels for a total of 24 channels. Equipped with advanced AI features including SMD Plus, Perimeter Protection (4 channels), and Face Detection (2 channels), this recorder provides intelligent security solutions. With H.265+ compression, it ensures efficient storage and bandwidth usage. The device supports up to 10TB HDD storage, 1 HDMI and 1 VGA output, and remote access via BCS Manager or DMSS mobile app.

Advantages

AI-powered detection reduces false alarms and enhances security. H.265+ compression saves storage space without compromising video quality. Easy setup and intuitive interface make it suitable for both residential and commercial applications.

Suitable for

• Retail stores and shops
• Office buildings
• Warehouses and logistics centers
• Educational institutions
• Small to medium-sized businesses

Key specifications

• 16 BNC video inputs (HDCVI/AHD/TVI/CVBS)
• 8 additional IP channels (max 6MP)
• Recording resolution up to 5M-N@10fps
• H.265+/H.265/H.264+/H.264 compression
• 1 SATA HDD bay, up to 10TB
• 1 HDMI and 1 VGA output (1920x1080)
• 1 RJ-45 10/100 Mbps Ethernet
• 2 USB 2.0 ports
• AI: SMD Plus, Perimeter Protection (4ch), Face Detection (2ch)
• DC 12V/2A power supply
• Operating temperature: -10°C to +55°C

Recommendations

For optimal performance, use with BCS analog HD cameras and high-quality CAT5e/6 cabling. Ensure adequate ventilation and use a UPS for uninterrupted operation.
