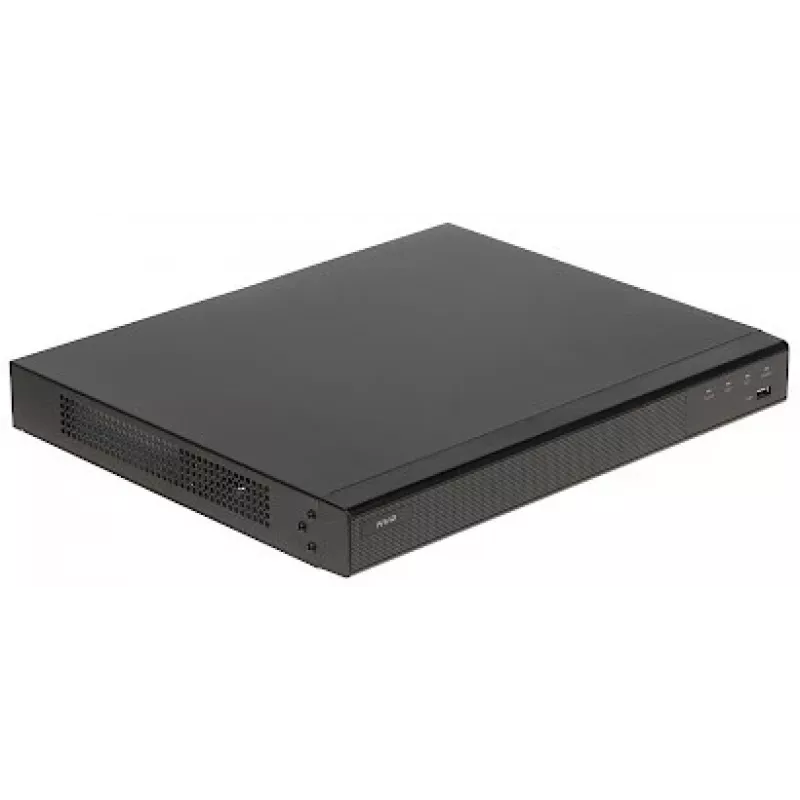

Gravador IP PoE POE LANG 16 canais

The POE LANG 16-Channel PoE IP Recorder is a high-performance network video recorder designed for comprehensive surveillance systems. With 16 integrated PoE ports and a total PoE budget of 150W, it simplifies installation by powering IP cameras directly through the Ethernet cables. Supporting up to 8MP (4K UHD) recording resolution and advanced H.265+ compression, this recorder delivers exceptional video quality while optimizing storage and bandwidth usage.

Advantages

This recorder offers seamless integration with a wide range of IP cameras, thanks to its support for multiple video compression formats including H.265+, H.265, H.264+, and H.264. The dual SATA interfaces allow for up to 16TB of total storage (2x 8TB HDDs), ensuring ample space for long-term recording. With HDMI and VGA outputs supporting up to 4K and 1080p respectively, users can connect to various displays for live monitoring or playback.

Suitable for

• Small to medium-sized businesses requiring a reliable 16-channel surveillance system
• Retail stores, offices, and warehouses needing centralized video management
• Installations where PoE simplifies cabling and reduces costs

Key specifications

• 16 PoE ports with IEEE 802.3af/at support, 150W total power budget
• Max recording resolution: 8 MP (4K UHD)
• Incoming/outgoing bandwidth: 160 Mbps
• Video compression: H.265+/H.265/H.264+/H.264
• 2 SATA interfaces, each supporting up to 8TB HDD
• HDMI output up to 3840x2160, VGA up to 1920x1080
• 1x RJ-45 10/100/1000 Mbps Ethernet interface
• 1x USB 2.0 (front), 1x USB 3.0 (rear)
• Audio: 1-ch RCA input, 1-ch RCA output
• Power supply: 100-240 VAC
• Operating temperature: -10°C to +55°C

Recommendations

For optimal performance, pair this recorder with POE LANG IP cameras supporting H.265+ compression. Use enterprise-grade HDDs rated for 24/7 surveillance. Ensure the PoE power budget does not exceed 150W total for connected cameras.
